Multi-channel power amplifiers with features designed specifically to benefit installation sound systems.
XMV Series multi-channel power amplifiers combine Class-D efficiency with features designed specifically to benefit commercial installation sound systems. The Series is comprised of 8 different models with varying output power capabilities and flexible in/out connectivity to accommodate a wide range of installation environments.
Key Features:
• Four-channel power amp that can operate in both high-impedance (70V/100V line) or low-impedance (4Ω/8Ω) modes simultaneously.
• 70V or 100V mode can be assigned to every pair of channels without affecting the number of available output channels.
• The newly developed Double Power Mode function effectively doubles the output power of selected channels.
• Equipped with YDIF digital audio format for simple and fast system configuration. YDIF is the newly developed digital transmission format; a unique propriety Yamaha technology that delivers 16ch audio and word clock transmission via standard CAT5 Ether cable.
• Easy setting such as the mute on/off or attenuator changes with MTX Editor when used in system with MTX Series.
• An innovative, new, patent pending circuit improves the already highly efficient Class D circuit topology, bringing the efficiency level of the
amplifier’s output stage up to over 90%.
• Feature a Power Factor Correction equipped switching power supply, ensuring harmonic control and decreasing the amount of current draw
while maintaining the same output power.
• Powerful, intelligent protection features for more reliable operation.
General
- Product series
- XMV
- Amplifier type
- Installation amplifier
Audio specification
- Amp channels
- 4
- 100V High-Z
- Yes
- Power/ch (4 Ohm)
- 140 W x4 (4/8 Ohm), 280W x2 Bridged
- Power/ch (70/100V)
- 125 W x4 (70/100V)
- Distortion THD
- 0.2 %
- Frequency range min
- 20 Hz
- Frequency range max
- 20,000 Hz
- Signal-to-noise ratio
- 100 dB (A-weighted)
- Built-in DSP
- No

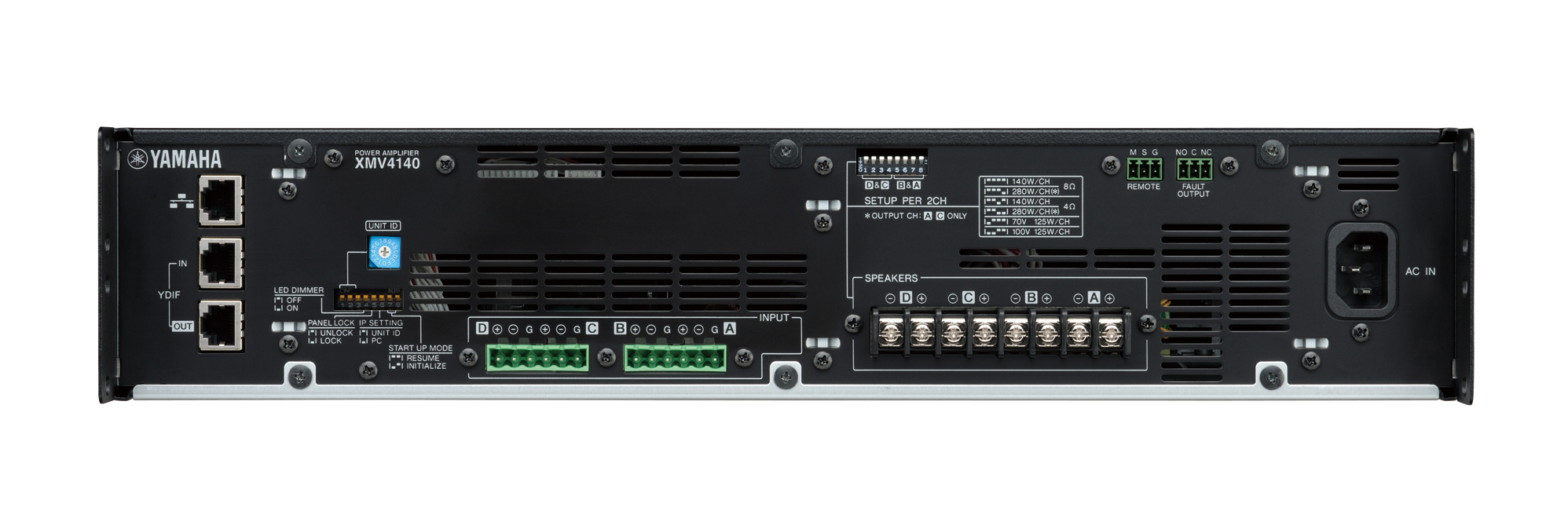

Connections
- Audio inputs
- Euroblock line 2x 6-Pin Balanced line
- Audio inputs
- YDIF digital (RJ-45) 1x RJ-45 (Y-DIF in)
- Audio outputs
- Euroblock spk. cable 4x Pair
- Audio outputs
- YDIF digital (RJ-45) 1x RJ-45 (Y-DIF out)
- Bluetooth
- No
- Wi-Fi
- No
- Control
- Contact closure 1x 3p Remote for mute / power on/off
- Control
- Ethernet/IP (RJ-45) Configuration via PC software
- Control
- GPI/O 1x 3p Fault out for driving an indicator light
Energy
- Power Supply
- 100V - 240V; 50Hz/60Hz internal power supply
- Amplifier class
- Class-D
- Cooling method
- Air active (fan) 2x 3-speed fan (front to back airflow)
- Consumption standby
- 18.5 W
- Consumption normal
- 150 W 1/8 Power (4 Ω Pink Noise)
Dimensions and weight
- Width
- 480 mm
- Depth
- 422 mm
- Height
- 88 mm
- Net weight
- 8.1 kg
Additional information
- Installation
- 19" Rack, 2U, Freestanding/Shelf
- Included Accessories
- Power Cable, Phoenix connectors
- Warranty
- 5 years
Packaging info
- Packaging size
- 600 x 590 x 220 mm
- Packaging weight
- 12.00 kg
