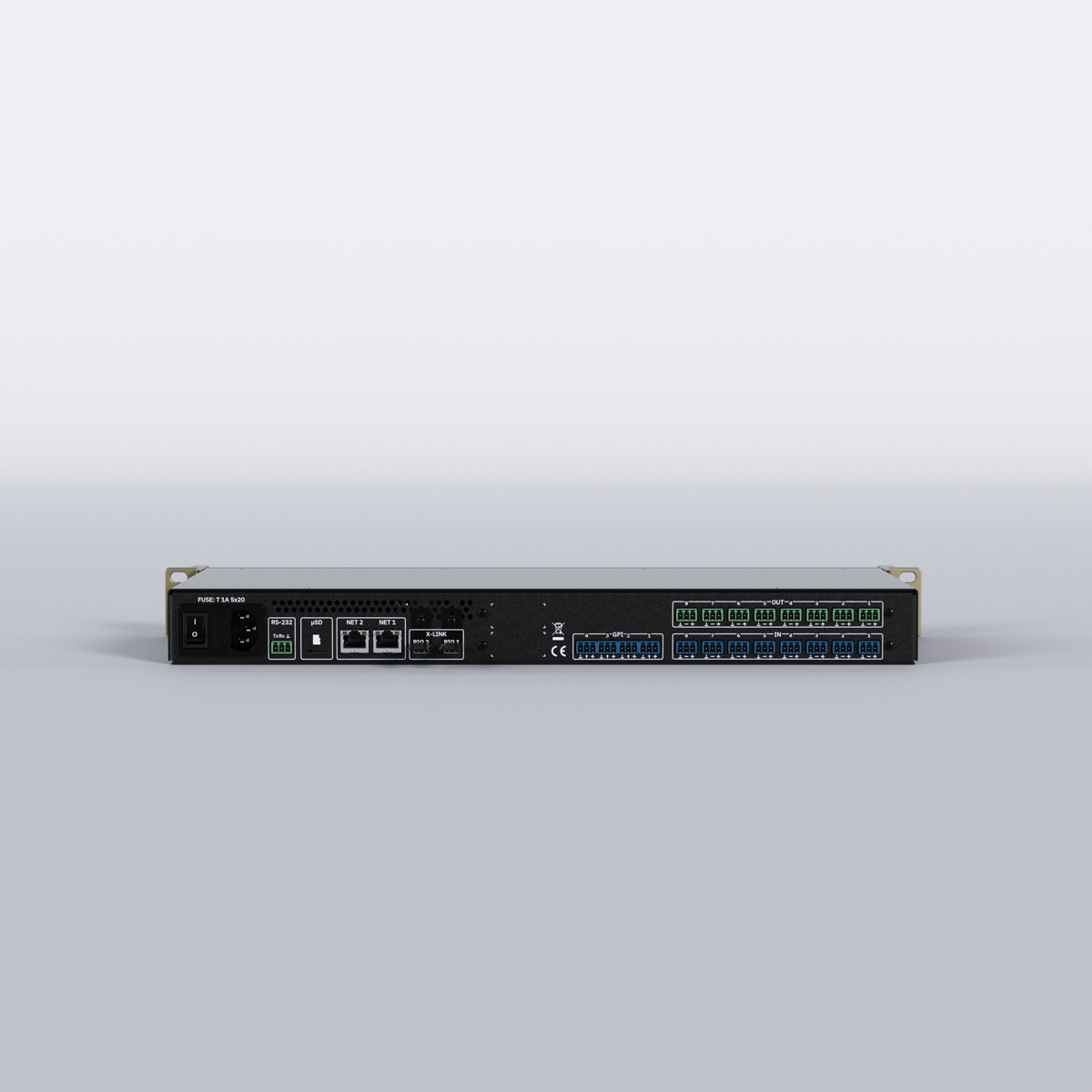

VIVO-X8 is an EclerPLEX Host matrix with 8 analogue audio input ports and 8 analogue audio output ports, scalable thanks to two X-link ports. Each X-link port allows the connection of one BIO Series expansion unit. VIVO-X8, performing as a Host unit in an EclerPLEX deployment, can contain multiple projects running simultaneously and serve user control panels to end users.
EclerPLEX ecosystem host matrix unit.
8 MIC / LINE analogue audio input ports (+48V Phantom selectable per port).
8 LINE analogue audio output ports.
4 GPI ports.
1 microSD card slot (for the 4 players).
2 x X-link audio&control expansion ports (each port allows to locally connect an external BIO Series expansion unit).
Scalable up to a 32x32 audio matrix size, including:
• 24x24 analogue audio ports (by adding 2x BIO-X8 or BIO-X8G units).
• 24x24 GPI ports (by adding 2x BIO-X8 or BIO-X8G units).
2x Ethernet (NET1 control, NET2 Control).
1 x RS-232 control port.
1 x 1.9” Colour TFT Display.
Flexible processing structure (allows for custom-size matrix size matrices and custom-DSP power projects).
Embedded EclerPLEX application that includes:
• A Workspace, including multiple types of custom-size simultaneous projects running simultaneously, events, calendars, presets and more.
• An editor, manager and server of User Control Panels.
• Scripting automation & control system.
• 4 Internal SW audio players.
• 2 Internal audio generators.
• EclerCLOUD monitor and control native device.
• Auto update feature.
The hardware is designed to support all the features described in this document. Some are available from version 1.0, while others will be enabled progressively through future software updates.
General
- Product series
- VIVO
- Application
- Fixed I/O
Connections
- Expansion-slot
- 2x X-Link ports to connect optional BIO-X8 expansion units
- Ethernet (RJ-45)
- Yes x2 NET1 & NET2 (no switch capability)
- Audio inputs
- Euroblock line x8 3-pin, balanced
- Audio outputs
- Euroblock line x8 3-pin, balanced
- Dante
- No
- Wi-Fi
- No
- Control
- Ethernet/IP (RJ-45), Front buttons
- Control
- GPI/O x8 I/O
- Control
- Remote Control Panel UCP control panels
- Control
- RS-232
- Control
- Web interface EclerPLEX (Web application)
Energy
- Power Supply
- 100-240 VAC @ 50-60Hz Built-in power supply
Dimensions and weight
- Width
- 482.4 mm
- Depth
- 214 mm
- Height
- 44 mm
- Net weight
- 3.2 kg
Additional information
- Application
- 19" Rack, 1U
- Included Accessories
- 1x EU Mains cord, 1x Multiplug Mains cord, 4x Washers, 4x Rubber feet, 9x Euroblock connectors (green colour), 12x Euroblock connectors (blue colour), 2 USB holders, 2x Screw
Packaging info
- Packaging size
- 590 x 380 x 70 mm
- Packaging weight
- 4.50 kg
