6.5" CRBI™-Equipped Two-Way Coaxial Ceiling Loudspeaker for Life Safety Applications.

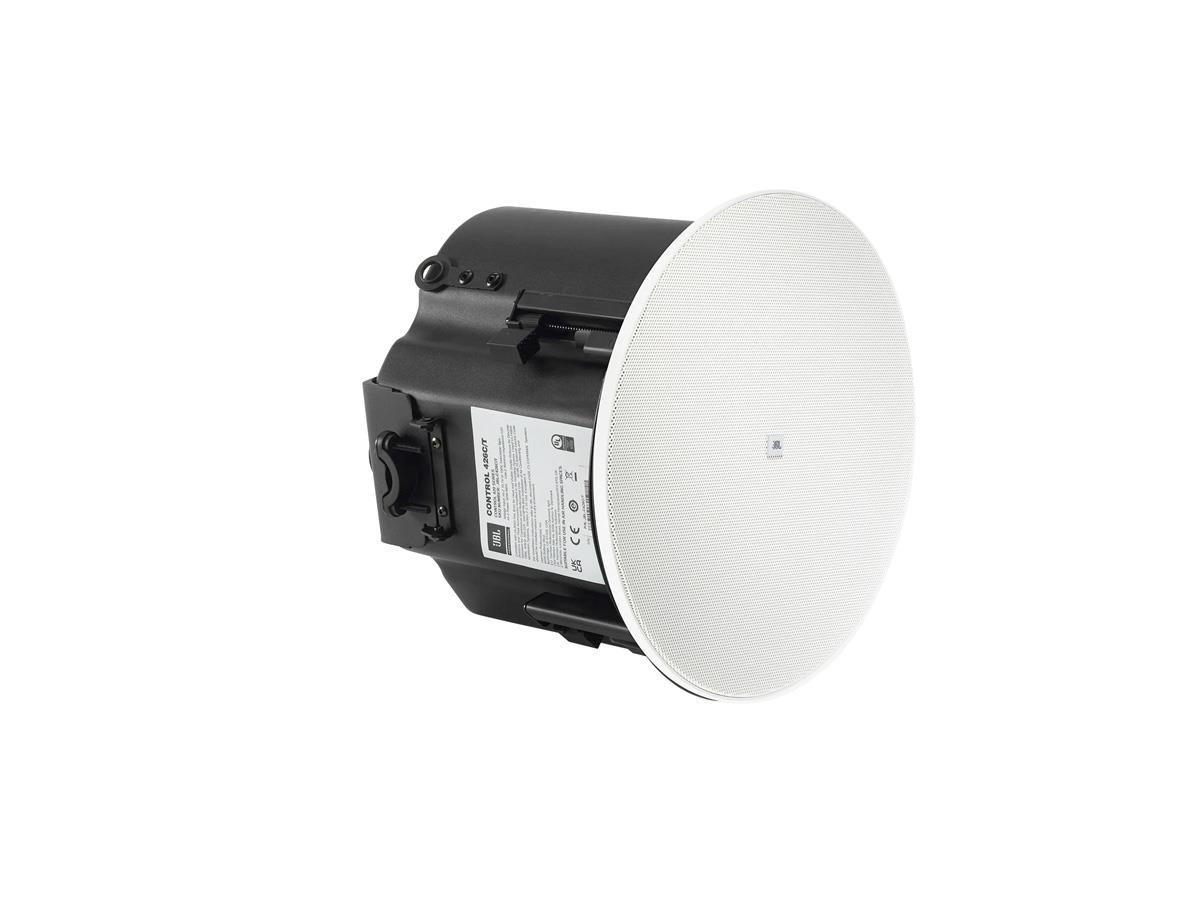

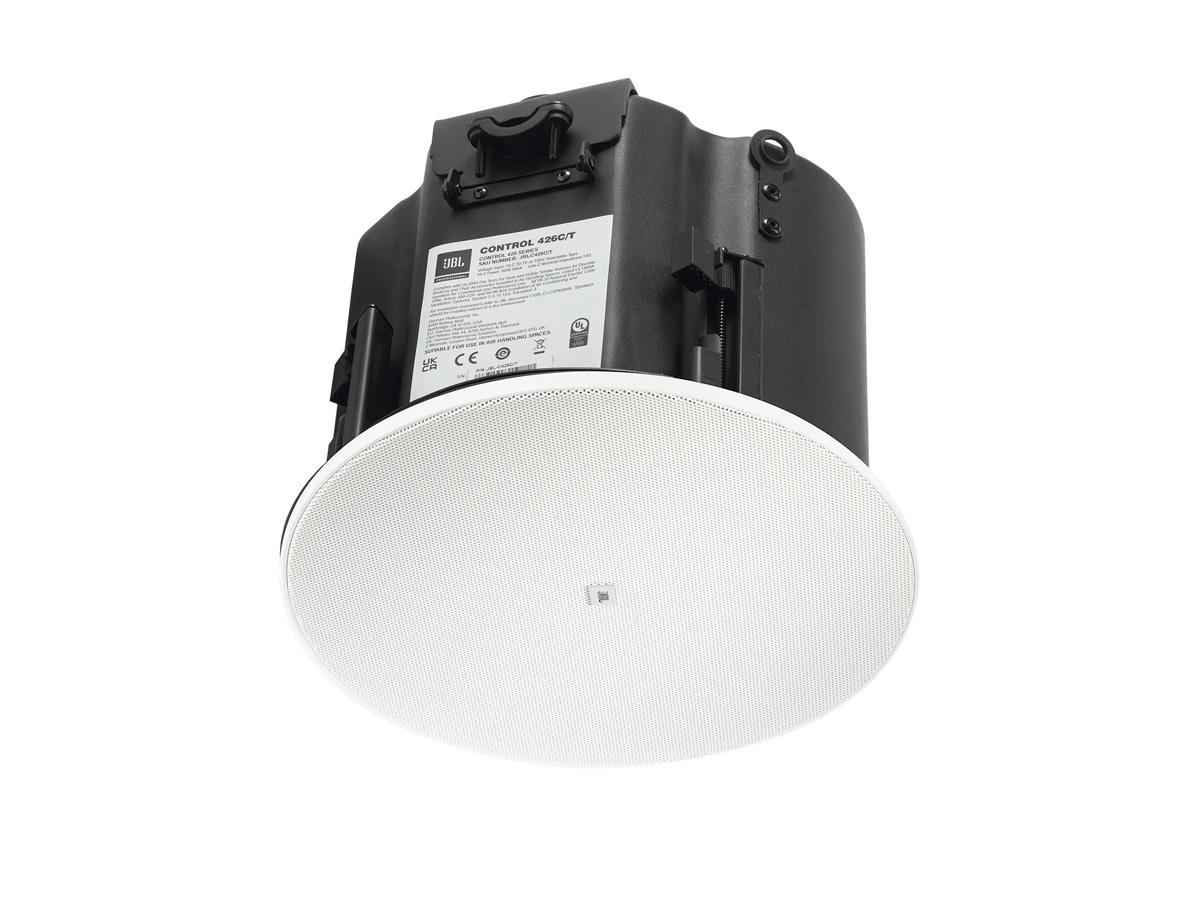

The JBL Control 426C/T-LS is a two-way coaxial ceiling loudspeaker, featuring a 6.5” woofer and integrated enclosure that is ideal for installation in most ceiling plenum spaces. Certified to the UL1480 Standard, the Control 426C/T-LS is suitable for life safety applications. Integrated CRBI™ technology provides 110° of consistent, full, rich sound to the listening area. A full-face magnetic grille blends seamlessly with modern decors and optional black and square grilles are available. Mechanical improvements include redesigned terminal covers with top and side cable entry ports and an extremely reliable new dogear design that works with a wide range of ceiling thicknesses. The JBL Control 426C/T-LS includes a transformer to support both 70V/100V and low impedance applications.
Features
- Coaxially mounted 165 mm (6.5 in) woofer and 25 mm (1.0 in) soft-dome tweeter
- Integrated enclosure that is ideal for installation in most ceiling plenum spaces
- CRBI™ technology for consistent 110° coverage across the listening area
- Built-in 70V/100V multi-tap transformer, plus 12-ohm direct input
- Full-face magnetic grilles
- Top and side exit cable entry optionsv Robust and adaptable dogears for wide range of ceiling thicknesses
- Certified to the UL1480 Standard for life-safety applications IP33 rated
General
- Model series
- Control 420
- Application
- Ceiling, EN54
- Active/Passive
- Passive
- DSP
- No
- Mixer
- No
- Color
- White
Speaker drivers
- LF
- 6.5 "
- HF
- 1 "
Audio specifications
- Impedance
- 12 Ohm
- Frequency range Min
- 53 Hz
- Frequency range Max
- 20,000 Hz
- Sensitivity (1W/1m)
- 90 dB
- Power handling
- 110 W
- 70/100V
- Yes
- Transformer taps (100V)
- 60W, 30W, 15W
- Transformer taps (70V)
- 60W, 30W, 15W, 7.5W
- Coverage angle (Hor)
- 110 °
- Coverage angle (Ver)
- 110 °
Connections
- Dante
- No
- Bluetooth
- No
- Ethernet (RJ-45)
- No
- Wi-Fi
- No
Energy
- Battery
- No
Additional information
- Outdoor use
- No
Packaging info
- Packaging size
- 240 x 293 x 695 mm
- Packaging weight
- 6.60 kg
Packaging info (2 pcs)
- Packaging size
- 500 x 600 x 695 mm
- Packaging weight
- 13.20 kg
