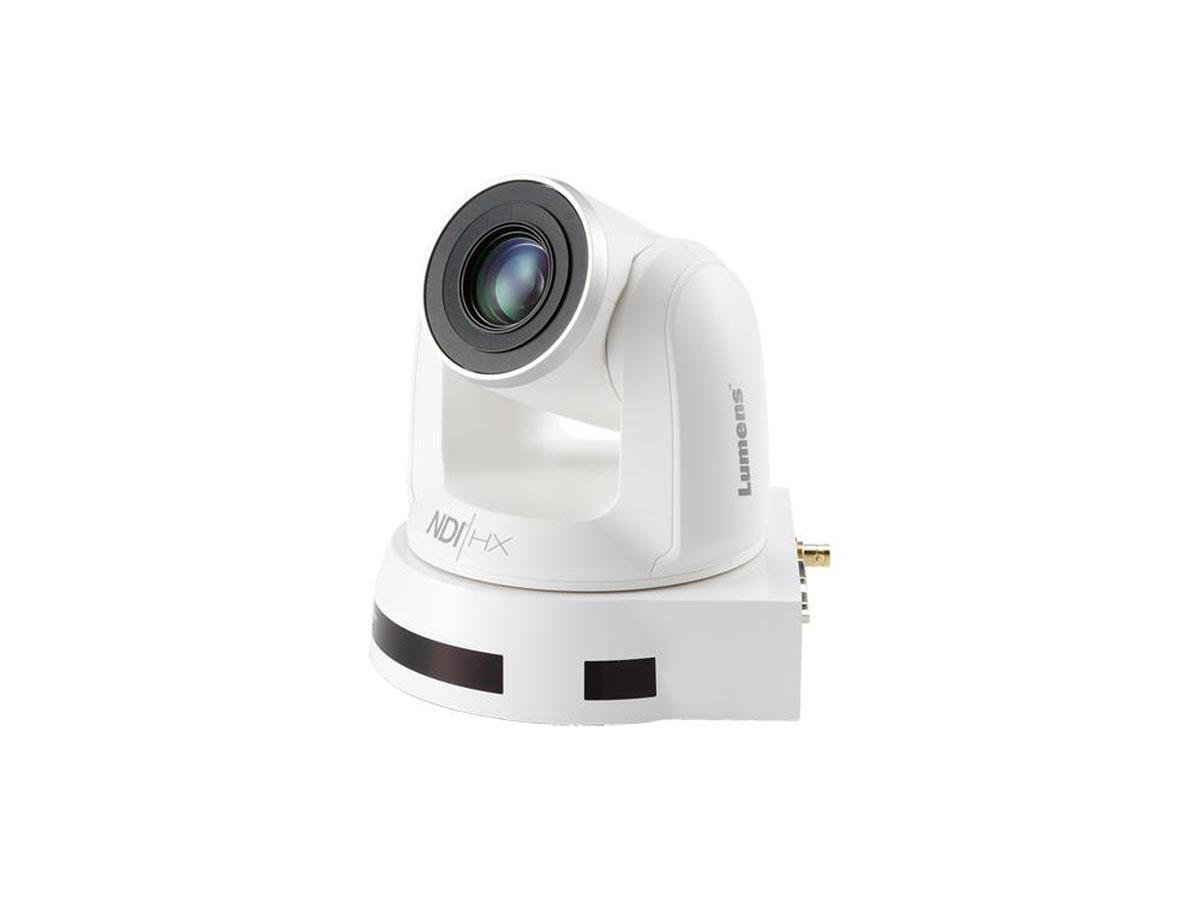

The VC-A50PN HD Pan/Tilt/Zoom (PTZ) IP camera is equipped with a professional 1/2.8 inch image sensor with Full HD 1080p output at 60 fps. It's powered by Power over Ethernet (PoE+), an economical and easy integration solution. The superior 20x optical zoom lens, excellent white balance, and exposure mode delivers a clear image, even in low light or the extreme contrast of brightness and darkness in a lecture hall.
The VC-A50PN has Ethernet, HDMI, and 3G-SDI outputs that are simultaneously active. It supports live broadcasting with H.264 format with latency of less than 120ms. The camera covers wide shooting angles and achieves highspeed, quiet, and precise positioning with smooth PTZ operations.
Features
- Full HD 1080p signal output format with a high frame rate of 60 fps
- 20x optical zoom
- Supports live broadcasting
- Supports Power Over Ethernet (PoE+)

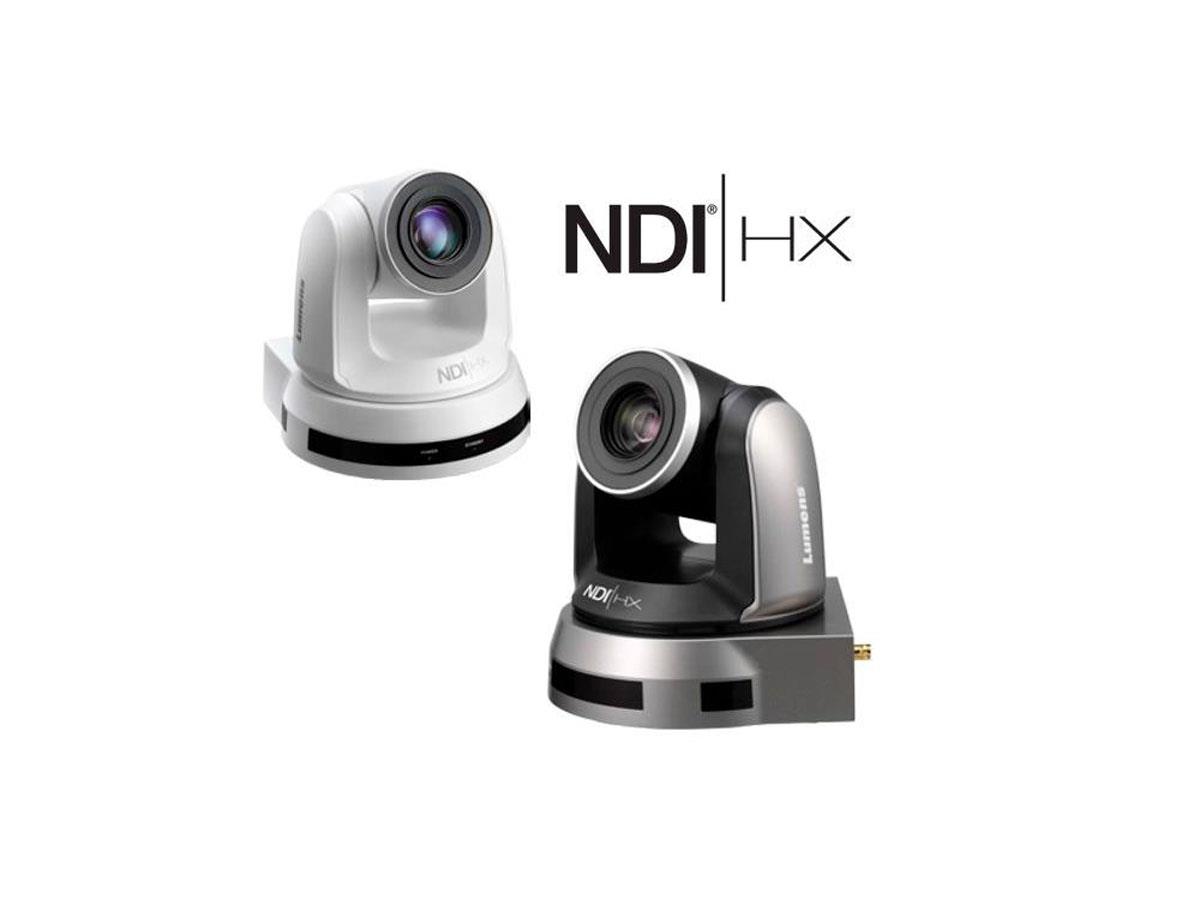

- Supports NDI® technology for NDI-based video production
- Ethernet low latency ( < 120 ms)
- Ethernet, HDMI, and 3G-SDI synchronous image outputs
- Maximum horizontal/vertical speed of rotation:120 degrees/second
- Audio input supports AAC encoding
General
- Camera type
- PTZ camera
- Color
- White
Image specification
- Max Resolution (Out)
- 1920x1080
- Framerate
- 60 FPS
- Optical zoom
- 20 x
- Field of view (horizontal)
- 57 °
- Signal-to-noise ratio
- 50 dB
- Min. illumination
- 1 Lux (F1.6, 50IRE, 30fps)
Functions
- Programmable presets
- Yes 128x
- Ceiling installation/Flip image
- Yes
- Pan movement +/-
- 170 °
- Tilt movement up
- 90 °
- Tilt movement down
- 30 °
- Auto framing/tracking
- No
Audio specification
- Built-in microphone
- No
- External microphone
- Yes MIC In (Phone Jack 3.5mm x1)
- Built-in speaker
- No
- External speaker
- No
Connections
- Video out
- 3G-SDI, HDMI
- Video out
- IP stream (RJ-45) H.264 1080p 60fps
- Video out
- NDI (RJ-45) NDI | HX, 1080p 60fps
- Audio inputs
- 3,5mm tele Line/Mic in
Energy
- Power Supply
- DC In, max 16W or PoE+ (IEEE802.3at) max 17.5W
Dimensions and weight
- Width
- 174 mm
- Depth
- 186 mm
- Height
- 187 mm
- Net weight
- 2 kg
Additional information
- Included Accessories
- Instruction for installation, Remote Control, Power Cord, Power Adapter, RS-422 Connector, Metal Plate A / B, M3 Screws
- Warranty
- 5 years
Packaging info
- Packaging size
- 270 x 270 x 320 mm
- Packaging weight
- 2.00 kg
