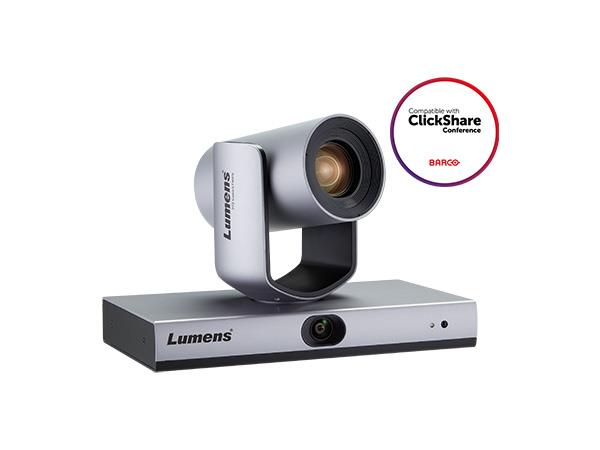

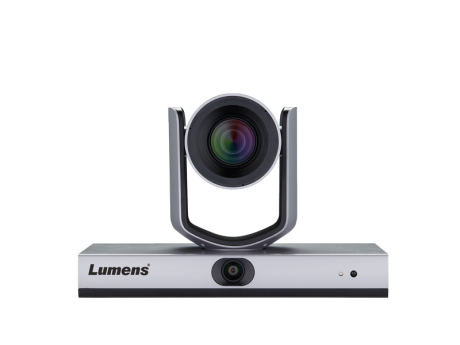

VC-TR1 - Full HD Auto-Tracking Camera
20x Zoom PTZ Camera for automated production and live streaming
Features
- Auto tracking and smart switching
- Dual Cameras: PTZ + Panoramic Camera
- Full HD 1080p 60fps with 20x optical zoom
- HDMI, 3G-SDI, IP and USB video outputs
- Supports PoE+ (Power over Ethernet)
- Supports RTSP / RTMP / RTMPS and HEVC(H.265) / H.264 / MJPEG video compression
The Lumens® VC-TR1 Auto-Tracking camera is capable of tracking a target automatically and continuously. Equipped with dual cameras – a PTZ camera and a secondary panoramic camera, the VC-TR1 guarantees consistent tracking performance. The smart switching function allows the VC-TR1 to automatically switch the view between two cameras during tracking whether the tracked target is moving or has stopped moving.
These innovative functions can help build your video production automation. The VC-TR1 comes with a professional FHD image sensor and 20x optical zoom providing a vivid Full HD 1080p output resolution. It supports PoE+ and IP streaming simplifying an A/V integration. It is applicable for lecture capture, corporate training, house of worship, and any stage setting environments.
Advanced Tracking
VC-TR1 represents a major advance in facial detection and camera tracking technology. With Lumens' technology, the presenter does not need to wear a dongle, nor is there any need to run a separate PC-based application. VC-TR1 does all the tracking within the system itself. Tracking is smooth and natural and can be finely tuned to adjust for speed and sensitivity to suit your needs.
Stage Tracking
Focuses on a presenter standing on a stage or behind a lectern and tracks the speaker's movement across the stage area.
Partition Tracking
Creates up to four preset zones to allow a presenter to move in a specific area. The camera will capture both the content on the display and the presenter.
Intelligent Tracking
Incorporating dual cameras, VC-TR1 monitors the full width of the stage and the presenter simultaneously, so it's always one step ahead. The user can select settings such as super tracking or partition tracking to establish accurate tracking areas and exclusion zones. This ensures that the presenter is the center of attention at all times. The operator can also add presets to zoom in when the speaker is at the lectern, for example, or zoom out to film a panel discussion. It's very easy to set up and requires no user input once the session has started.
Smart Switching Images between Dual Lens Design
The VC-TR1 integrates PTZ camera and 112° FOV panoramic camera. Thanks to the dual lens design, it can capture the entire view and track a speaker simultaneously. While in the process of tracking, the VC-TR1 automatically switches the video frame. Audiences see not only a presenter but also the content on a whiteboard or presentation material.
Simple Integration
VC-TR1 can be used in multiple roles within your organization. With UVC-compliant USB, the camera connects directly with video conferencing software such as Zoom, WebEx, Teams or Skype. Featuring IP streaming, VC-TR1 delivers live video directly to platforms such as YouTube or Facebook Live. Its HDMI and SDI connectivity enables fast integration with video switchers for native video quality production.
Broadcast Quality
VC-TR1 combines excellent auto-tracking with camera technology which is developed to television standards. The sensor, lens, and video output options are all professional-grade, giving you the high-resolution output, faithful colors, and excellent performance in low light settings.
Applications:
- Conference Production Suitable for use in the main auditoria or breakout rooms, offering automated event production of keynote addresses and discussion panels.
- Telemedicine Being able to move around a lab, a demonstrator can present to remote audiences without being restricted to a static VC position.
- E-learning Teachers can engage more effectively with remote students by moving naturally around a classroom or lecture hall.
General
- Camera type
- PTZ camera
- Color
- Grey
- Certifications
- USB BYOD
Image specification
- Max Resolution (Out)
- 1920x1080
- Framerate
- 60 FPS
- Optical zoom
- 20 x
- Digital zoom
- 12 x
- Field of view (horizontal)
- 58.7 ° Panoramic Camera: 100°
- Signal-to-noise ratio
- 40 dB
- Min. illumination
- 1 Lux (F1.6, AGC ON)
- Min. working distance
- 500 mm
Functions
- Programmable presets
- Yes 256x
- Ceiling installation/Flip image
- Yes
- Pan movement +/-
- 90 °
- Tilt movement up
- 90 °
- Tilt movement down
- 30 °
- Auto framing/tracking
- Yes Auto-tracking and Auto-framing
Audio specification
- Built-in microphone
- No
- External microphone
- Yes Line in (Phone Jack 3.5mm x1)
- Built-in speaker
- No
- External speaker
- No
Connections
- Video out
- 3G-SDI 1080p60
- Video out
- HDMI vers 2.0 1080p60
- Video out
- IP stream (RJ-45) HEVC(H.265) / H.264 / MJPEG
- Video out
- USB-A 1080p 30
- USB standard
- 2.0
- Audio inputs
- 3,5mm tele Line in
Energy
- Power Supply
- 12V DC In, max 16W or PoE+ (IEEE802.3at) max 17W
- Consumption max
- 18.5 W
Dimensions and weight
- Width
- 245 mm
- Depth
- 145 mm
- Height
- 165 mm
- Net weight
- 1.4 kg
Additional information
- Included Accessories
- Lens hood, Remote Control, Power Cord, Power Adapter, 3 PIN to 2 PIN connector, USB cable A-A
- Warranty
- 5 years
Packaging info
- Packaging size
- 300 x 250 x 300 mm
- Packaging weight
- 2.00 kg
