Lumens VC-A53 | USB 3.0 | 1920x1080 | 20x Opt. Zoom | 57° Fov. | PTZ camera

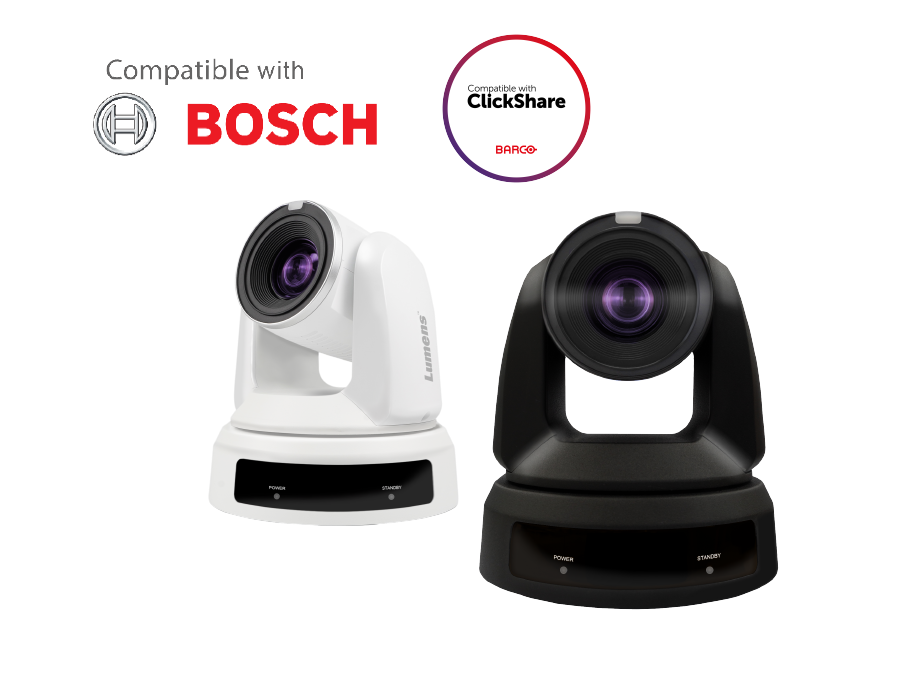

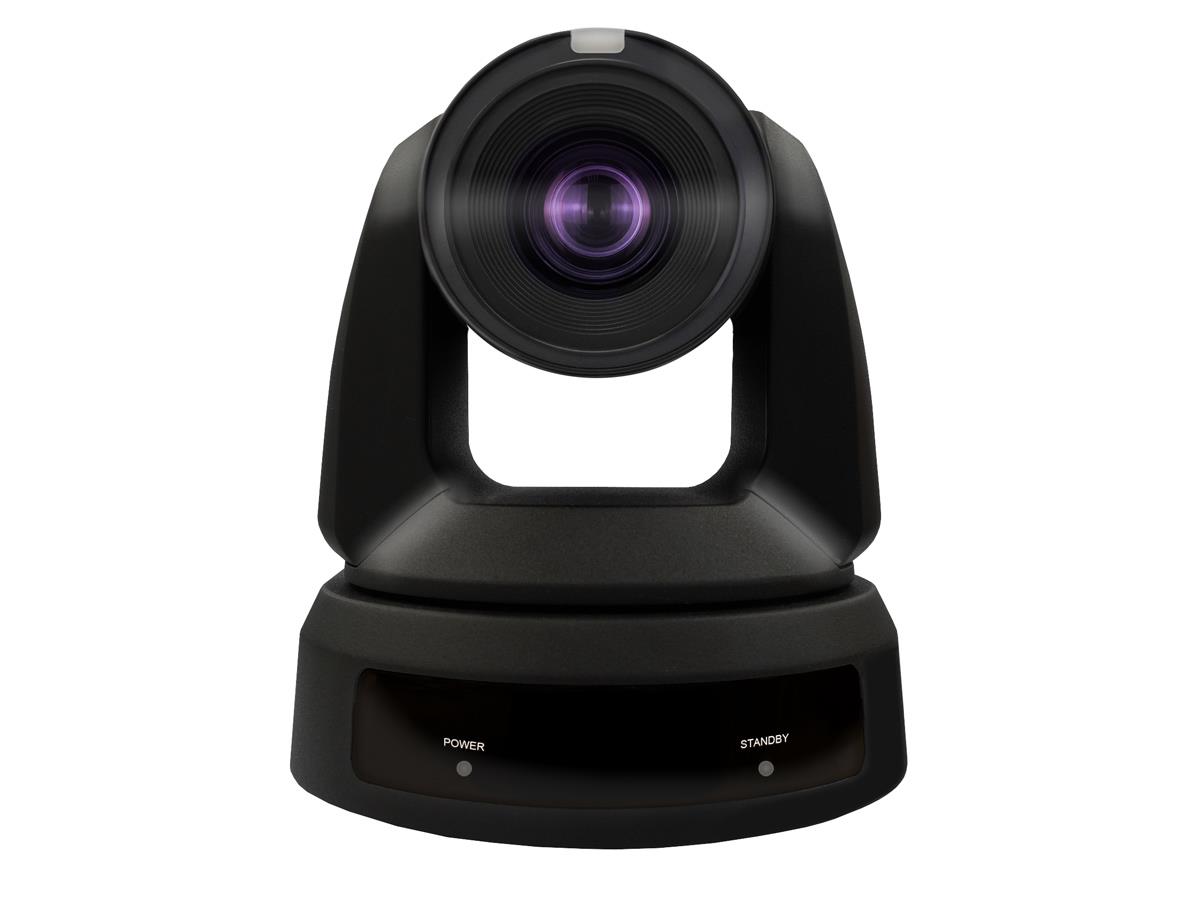

VC-A53 - Full HD PTZ IP Camera

Professional Sony image sensor
Supports 1080p at 60fps and versatile 20x optical zoom
Delivers HD video output via Ethernet, HDMI, USB and 3G-SDI simultaneously

Professional High Speed Robotics
With high-precision motors, the VC-A53 can run at up-to 225° per second for very fast movement between preset positions. The unit is also able to move at low speed to deliver smooth and judder-free tracking shots.

Networking Built-in
The VC-A53’s Ethernet port is truly multi-purpose. It supports power over Ethernet, video streaming in a variety of secure and broadcast standard formats, and IP control. Users can remotely control multiple units and manage their cameras facility-wide using the complimentary Lumens Deployment Tool 2.0

Production Ready
The VC-A53 is based around a professional Sony sensor, making the video output easy to integrate into mixed camera productions. The unit can be controlled using RS-232, RS-422 , USB and Ethernet control interfaces enabling users to add the camera into existing workflows.

Intelligent Auto
VC-A53 offers full manual settings to give producers full creative control. The camera also incorporates intelligent automatic modes that deliver exceptional auto-focus, predictive auto-exposure and auto-white balance. These features allow users to trust the camera to run without user-input and to deliver consistently professional results.

General

Camera type: PTZ camera
Color: Black
Certifications: USB BYOD

Image specification

Max Resolution (Out): 1920x1080
Framerate: 60 FPS
Optical zoom: 20 x
Digital zoom: 12 x
Field of view (horizontal): 57 °
Signal-to-noise ratio: 50 dB
Min. illumination: 1 Lux (F1.6, 50IRE, 30fps)
Min. working distance: 500 mm

Functions

Programmable presets: Yes 256x
Ceiling installation/Flip image: Yes
Pan movement +/-: 170 °
Tilt movement up: 90 °
Tilt movement down: 30 °
Auto framing/tracking: No

Audio specification

Built-in microphone: No
External microphone: Yes MIC In (Phone Jack 3.5mm x1)
Built-in speaker: No
External speaker: No

Connections

Video out: 3G-SDI, HDMI
Video out: IP stream (RJ-45) Main : H.264 1080p 60, Second : H.264 640x360p 30, Webpage Preview: 1280x720 30
Video out: USB-B 1080p 60
USB standard: 3.0
Audio inputs: 3,5mm tele Line/Mic in

Energy

Power Supply: 12V DC In, max 9W or PoE (IEEE802.3af) Max 10W
Consumption max: 10 W

Dimensions and weight

Width: 174 mm
Depth: 197 mm
Height: 180 mm
Net weight: 2 kg

Additional information

Included Accessories: Remote Control, AC Power Cord, Power Adapter, 3PIN 2PIN Connector, Metal Plate A / B, M3 Screws
Warranty: 5 years

Packaging info

Packaging size: 270 x 270 x 320 mm
Packaging weight: 3.80 kg
