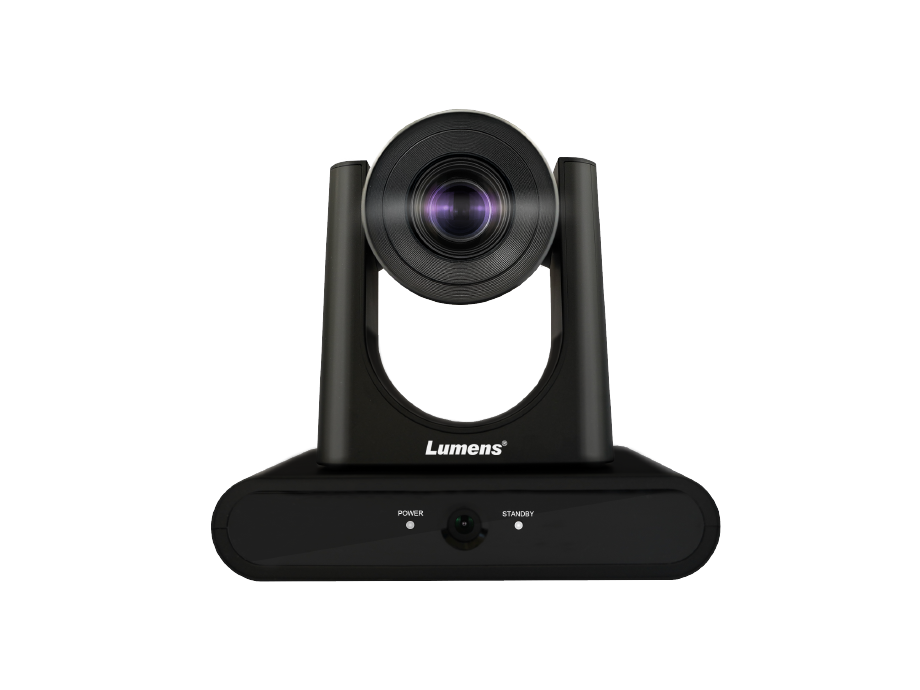

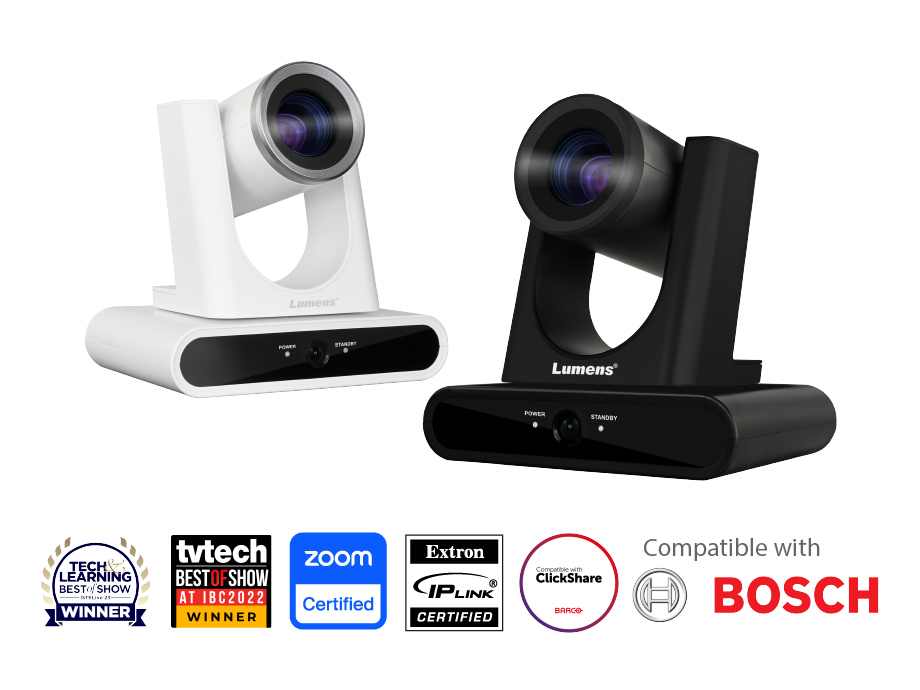

VC-TR40N - AI-Powered NDI HX3 Auto-Tracking Camera
- AI-Powered face recognition for intelligent auto-tracking and framing
- NDI HX3 Support
- HDMI, 3G-SDI, IP and USB simultaneous output
- 1080P 60fps with 20x Optical Zoom
- Mount upright or inverted
NDI Technology
Connecting the camera to an NDI network means video, audio, control and power down a single Ethernet cable.
Intelligent Modes
VC-TR40N supports stage tracking, everywhere tracking, and partition tracking modes so that you can optimize the sensors to track more accurately than ever and deliver superb results every time.
Gesture Control Tracking
If you have multiple presenters on stage or require audience participation, all they need to do is raise their hands. The camera then switches its focus to the new target.
Auto-Framing and Partition Framing Mode
Auto-framing modes automatically set the ideal camera position for a team meeting or group discussion. The modes frame the delegates and not the space around them.
Flexible Mounting
Unlike many tracking cameras, VC-TR40N can be mounted vertically or inverted from the ceiling.
General
- Camera type
- PTZ camera
- Color
- Black
- Certifications
- USB BYOD
Image specification
- Max Resolution (Out)
- 1920x1080
- Framerate
- 60 FPS
- Optical zoom
- 20 x
- Digital zoom
- 12 x
- Field of view (horizontal)
- 58.7 ° Panoramic Camera: 111°
- Signal-to-noise ratio
- 50 dB
- Min. illumination
- 1 Lux (F1.6, 50IRE, 30fps)
- Min. working distance
- 500 mm
Functions
- Programmable presets
- Yes 256x
- Ceiling installation/Flip image
- Yes
- Pan movement +/-
- 170 °
- Tilt movement up
- 90 °
- Tilt movement down
- 30 °
- Auto framing/tracking
- Yes Everywhere / Stage / Partition Auto Tracking and Everywhere / Partition Auto Framing. Gesture Control
Audio specification
- Built-in microphone
- No
- External microphone
- Yes MIC In (Phone Jack 3.5mm x1)
- Built-in speaker
- No
- External speaker
- No
Connections
- Video out
- 3G-SDI 1080p 60
- Video out
- HDMI 1080p 60
- Video out
- IP stream (RJ-45) Main: H.264 1080p60, Second : H.264 720p30, Panoramic Camera: 720p30
- Video out
- NDI (RJ-45) NDI HX3 / NDI HX2
- Video out
- USB-B MJPEG, 1080p 60
- USB standard
- 3.0
- Audio inputs
- 3,5mm tele Line/Mic in
Energy
- Power Supply
- 12V DC In, max 10W or PoE (IEEE802.3af) max 11W
- Consumption max
- 11 W
Dimensions and weight
- Width
- 190 mm
- Depth
- 138 mm
- Height
- 185 mm
- Net weight
- 1.5 kg
Additional information
- Included Accessories
- Remote Control, AC Power Cord, Power Adapter, 3PIN 2PIN Connector, USB B-A 3.0 cable 2m, HDMI Cable 1,5m, Connection guide
- Warranty
- 5 years
Packaging info
- Packaging size
- 278 x 246 x 210 mm
- Packaging weight
- 2.75 kg
- Barcode
- 4711246503557
