VC-TR41 - AI Auto-Tracking Camera

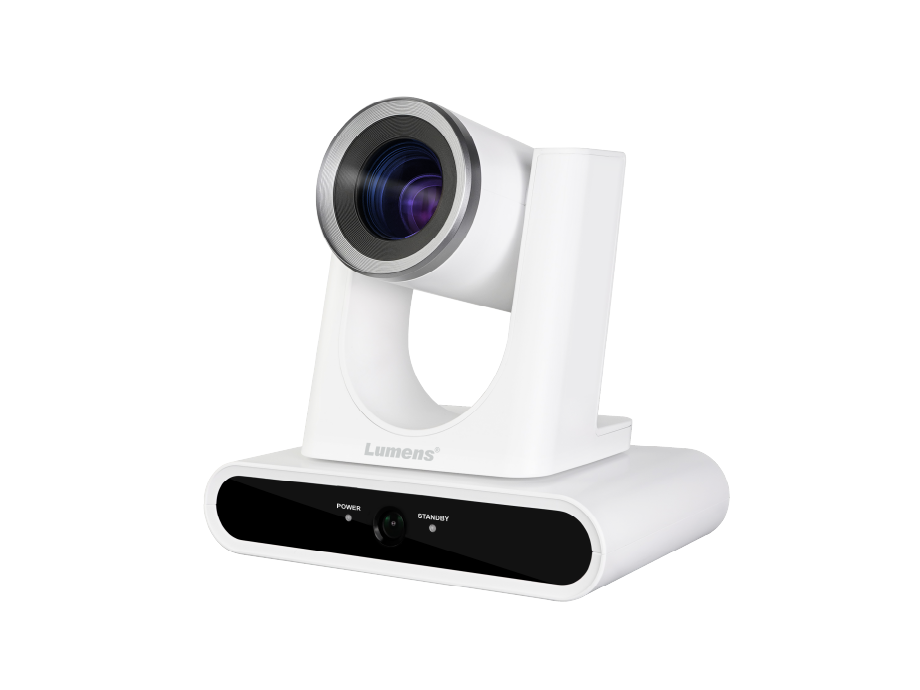

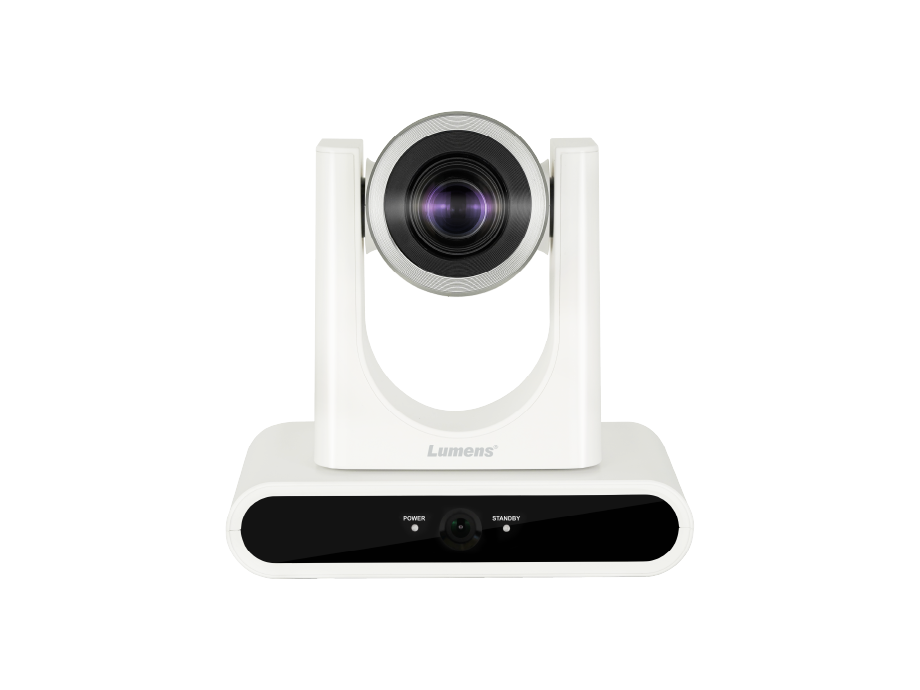

Lumens VC-TR41 is a dual-lens motion-tracking PTZ camera. Its AI technology makes it easy to identify and track a moving subject smoothly and reliably. VC-TR41 features a 20x optical zoom lens with auto framing technology that intelligently zooms to capture all guests in view. VC-TR41 integrates with Lumens LC300 series CaptureVision system to automate video production and lecture capture, making it ideal for use in presentations and learning environments.
- Multiple AI Tracking, Framing and Auto-Switching modes
- 1080P 60fps with 20x Optical Zoom
- HDMI, SDI, and Ethernet simultaneous output
- Zoom certified ProAV camera
- Supports RTSP / RTMP / RTMPS / SRT streaming
Everywhere Tracking Mode
The camera smoothly will follow wherever the presenter goes. You can simply change the tracked subject by clicking on the individual via the web interface.
Partition Tracking Mode
When the presenter moves inside a user-defined Partition Area, the camera switches to a preset angle and zoom. When outside a Partition Area, the camera autonomously follows the presenter.
Stage Tracking Mode
When inside the Tracking Area, the camera follows the presenter with a panning (left-right) movement. When the presenter moves outside the Tracking Area, the camera stops tracking.
Auto-Framing Mode
With Auto-framing function, you can immediately detect the participants in a meeting. It dynamically adjusts its angle frame to include all delegates, re-framing the view if participants join or leave during the session.
Presenter and Audience Modes
Paired with the CaptureVision LC300 series media processor, VC-TR41 units can be set in Presenter or Audience Mode. Cameras can be set to track speakers or allow contributions from audience members, with the processor automatically switching cameras to create a professional multi-angle production.
General
- Camera type
- PTZ camera
- Color
- White
- Certifications
- USB BYOD
Image specification
- Max Resolution (Out)
- 1920x1080
- Framerate
- 60 FPS
- Optical zoom
- 20 x
- Digital zoom
- 12 x
- Field of view (horizontal)
- 58.7 ° Panoramic Camera: 87°
- Signal-to-noise ratio
- 50 dB
- Min. illumination
- 1 Lux (F1.6, 50IRE, 30fps)
- Min. working distance
- 500 mm
Functions
- Programmable presets
- Yes 256x
- Ceiling installation/Flip image
- Yes
- Pan movement +/-
- 170 °
- Tilt movement up
- 90 °
- Tilt movement down
- 30 °
- Auto framing/tracking
- Yes Auto Tracking: Everywhere / Stage / Partition / Audience Tracking. Auto Framing: Everywhere / Partition. Gesture Control
Audio specification
- Built-in microphone
- No
- External microphone
- Yes MIC In (Phone Jack 3.5mm x1)
- Built-in speaker
- No
- External speaker
- No
Connections
- Video out
- 3G-SDI 1080p 60
- Video out
- HDMI 1080p 60
- Video out
- IP stream (RJ-45) Main: H.264 1080p60, Second : H.264 720p30, Panoramic Camera: 720p30
- Video out
- USB-B MJPEG, 1080p 30
- USB standard
- 3.0
- Audio inputs
- 3,5mm tele Line/Mic in
Energy
- Power Supply
- 12V DC In, max 10W or PoE (IEEE802.3af) max 11W
- Consumption max
- 11 W
Dimensions and weight
- Width
- 190 mm
- Depth
- 138 mm
- Height
- 185 mm
- Net weight
- 1.5 kg
Additional information
- Included Accessories
- Remote Control, AC Power Cord, Power Adapter, 3PIN 2PIN Connector, USB B-A 3.0 cable 2m
- Warranty
- 5 years
Packaging info
- Packaging size
- 277 x 246 x 213 mm
- Packaging weight
- 2.77 kg
