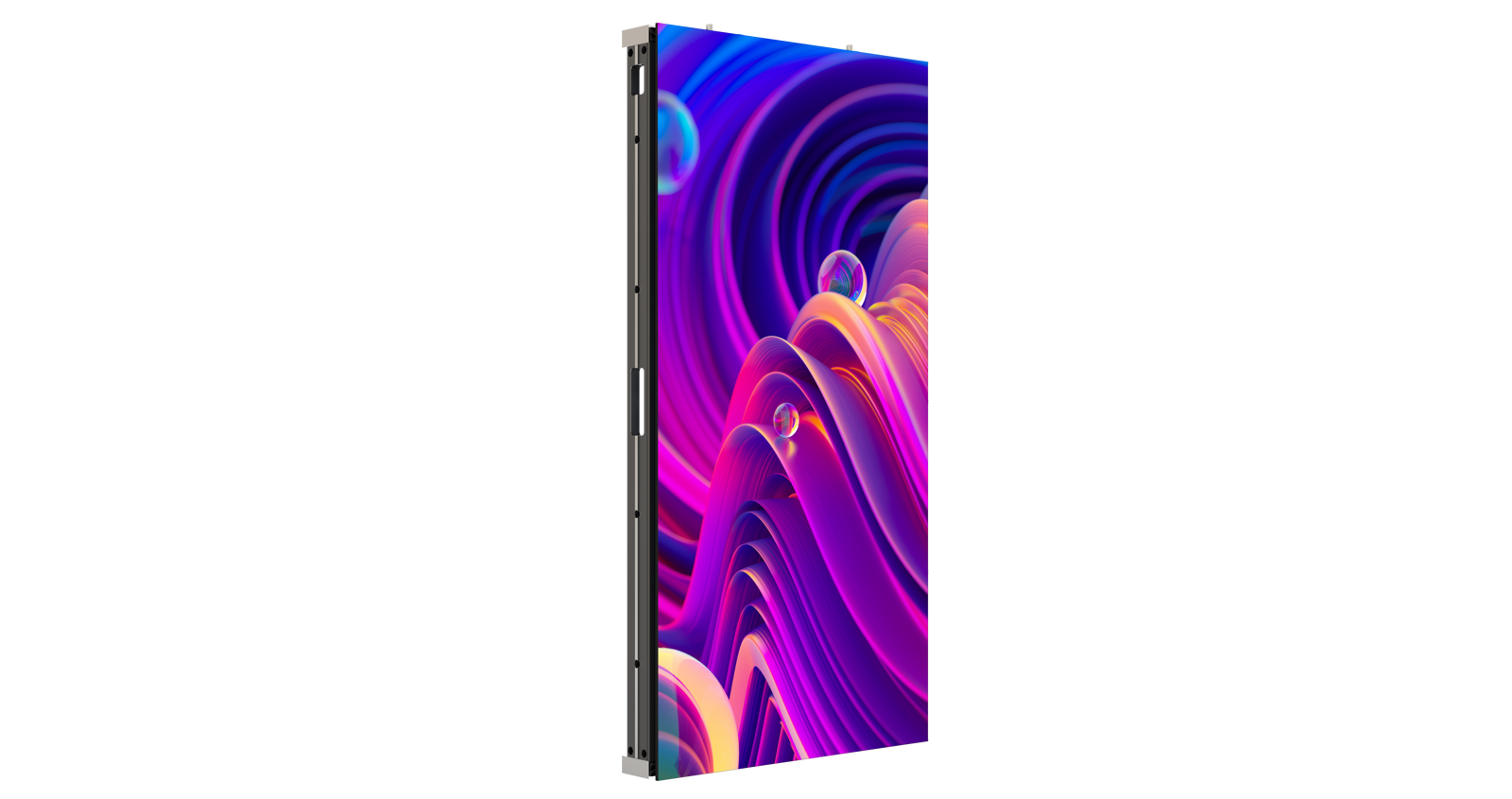

P3.9 Outdoor LED Display Unit

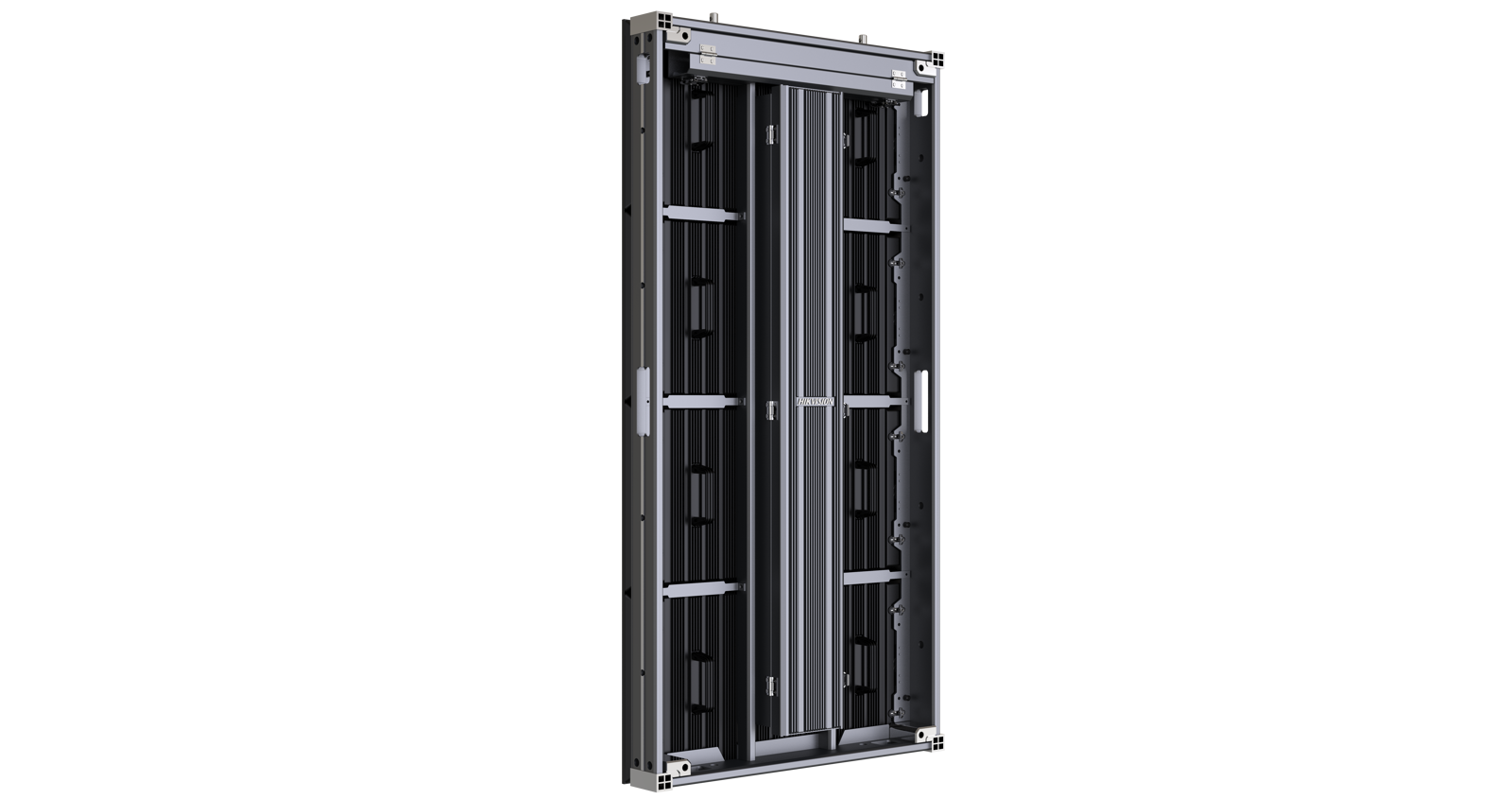

- The luminaire is designed with an aluminum cabinet structure, which is lightweight, flat, and has high flatness. It supports IP66 protection level and can be maintained from the front or rear.
- The luminaire is equipped with an aluminum profile and an aluminum cabinet, which has a high heat dissipation efficiency.
- It supports wall-mounted and ground-mounted installation methods.
- Support wall type, floor type and other installation methods
- The luminaire uses aviation plug design, which makes installation and construction simple and efficient.
- The solder joints use lead-free and non-toxic solder paste materials, which do not harm the human body or the environment.
Display
- Display Resolution
- 128 x 256 pixels
- Pixel pitch
- 3.9 mm
- Diode Type
- Surface-mounted device (SMD)
- Refresh rate
- 3,840 Hz
- Brightness (Max)
- 4,500 Nits
- Viewing angle
- 160 ° Horizontal, 128 vertical
LED Module/Cabinet
- Cabinet Resolution
- 128 x 256 pixels
Energy
- Power Supply
- 100 - 240 V
- Consumption Max/m2
- 508 W
Dimensions and weight
- Width
- 500 mm
- Height
- 1,000 mm
- Depth
- 97 mm
- Net weight
- 18.24 kg
Additional information
- Service access
- Front/Rear
- IP Classification
- IP66
- Operating Temperature min
- -20 Celsius
- Operating Temperature max
- 60 Celsius
