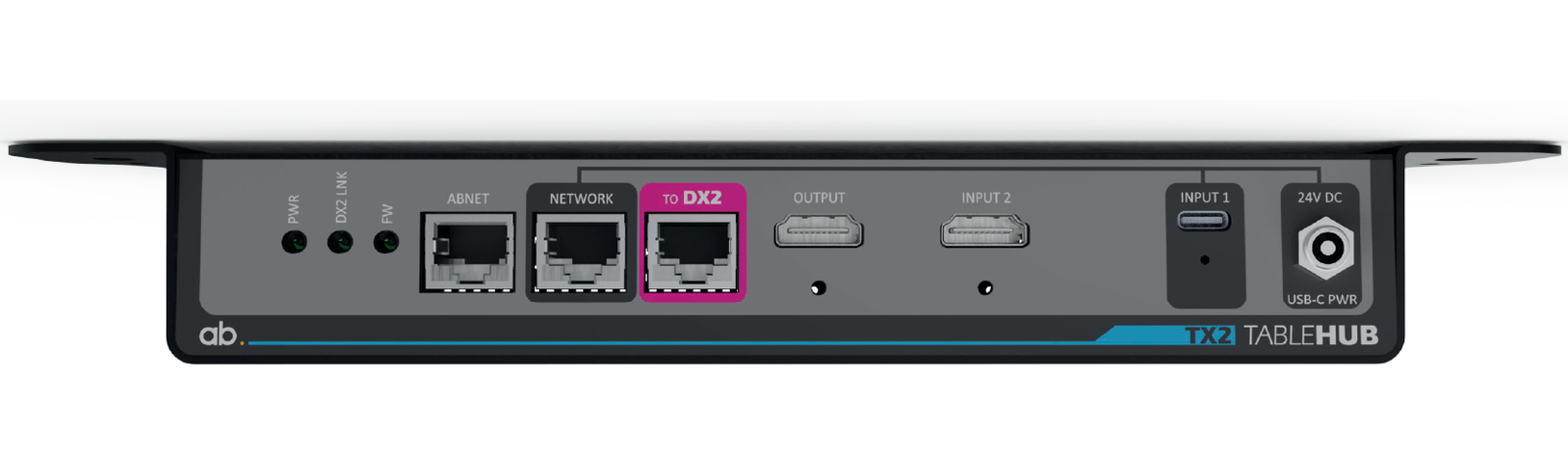

TX2 Table Hub
Designed to connect USB-C and HDMI inputs over distance to the DX2 Room Hub
- Fully featured USB-C and HDMI connectivity with input signal sensing
- Uncompressed 4K60 4:4:4 resolution video routing / transmission
- Independent EDID control of each input
- HDCP support or blocking
- Independently scalable HDMI output port for local monitor or content ingest
- Network port through to USB-C device
- USB 2.0 with up to 350 Mbit/s data rate
- ABNET control connection for AB Tablebox touch panel
- Cat6a/Cat7 link to DX2 (powered from DX2 via this link)
- Input for optional USB-C laptop charging (100W)
DX2/TX2 AV Infrastructure
Ashton Bentley CTO, Roger McArdell, gives a comprehensive overview of the TX2 Table Hub and DX2 Room Hub. Covering system connectivity, features and System Configuration tool.
System Basics
The TX2 Table Hub should be installed under a table, in a lectern or wherever connection to laptops is required.
The DX2 Room Hub should located near the display or where the Video Bar or VC equipment is located.
The two boxes are linked with a single Cat6a/Cat7 cable, which can be up to 35m. Simple to install, with minimal cabling.
General
- Extender type
- Transmitter (Tx)
- Range (Max)
- 35 m via Cat6a/Cat7 cable
Video specification
- Max supported resolution
- 3840 x 2160
- Refresh rate
- 60 Hz
- Chroma subsampling (4K)
- 4:4:4
- Scaler
- Yes Independently scalable HDMI output port for local monitor or content ingest
Connections
- Video in
- HDMI x1 on Table Hub
- Video in
- USB-C With DP Alt Video, USB Data, Ethernet & up to 100W PD (requires optional USB-C Power supply 900-00586-EU)
- Video out
- HDMI x1 (loop out) on table hub
- Video out
- TP (RJ-45) ABNET output
- Control
- Auto-switching
- Control
- CEC Programmable CEC display control
- Control
- RS-232
- Control
- Web interface For system config
- USB passthrough
- Yes
- USB standard
- 2.0 up to 350 Mbit/s data rate
Energy
- Power Supply
- TX2 Table Hub is powered via PoC from DX2 Room hub. Room Hub powered via external locking 24v (64.8W) power supply (supplied). USB-C power provided by optional, local 24v 5A PSU (900-00585)
Dimensions and weight
- Width
- 280 mm
- Depth
- 155 mm
- Height
- 40 mm
Additional information
- Mounting
- Freestanding/Shelf
- Mounting
- Table Table Hub
- Warranty
- 3 years
Packaging info
- Packaging size
- 320 x 150 x 330 mm
- Packaging weight
- 5.00 kg
