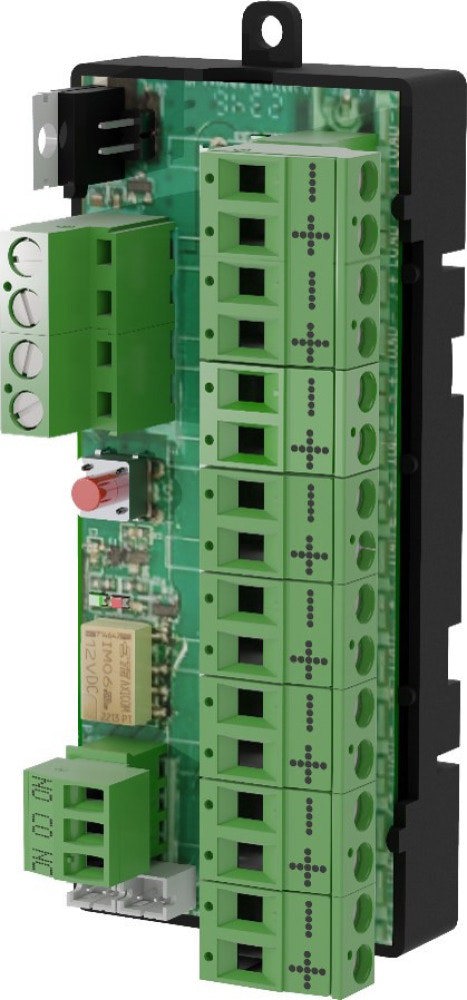

Fuse board with sum alarm and memory function. Used to protect electronic circuits from damage due to overcurrent or short circuit.
The fuse board has eight 1-pole fused outputs.
Current outlet 1.85 A per output.
The board has PTC fuses that trip when the rated current is exceeded.
2.7 A per output and reset when the overcurrent is gone.
For 12 V or 24 V.

Where can you place the board?
ECO M: Has 2 slots for option boards.
NEO FLX S / NOVA FLX S: Has 2 slots for option boards.
NEO / NOVA FLX M: Has 3 slots for option boards.
NEO / NOVA FLX L: Has 3 slots for option boards.
19 rack module holder: Has 8 slots for option boards.
DIN rail via option: Use DIN module holder for mounting on DIN rail.

What is a PTC fuse?
A PTC fuse, where “PTC” stands for “Positive Temperature Coefficient,” is a type of thermal fuse or overcurrent protection device. These fuses are used to protect electrical circuits from overcurrent and short circuits. The fuse works by changing its resistance characteristic when it becomes too hot due to high current. When the current becomes too high, the temperature of the fuse increases, making it less conductive and restricting the flow of current. When the temperature of the fuse decreases, the fuse returns to its normal state and allows the current to pass through as usual.
