NIC-SB10 is an in-ceiling / in-wall subwoofer loudspeaker designed for 70/100 V line and low‑impedance installations, delivering 100 W RMS and featuring a 10” woofer. A tile bridge for securing the loudspeaker in suspended ceilings is included. As part of the NIC Series, NIC‑SB10 elevates ceiling speaker performance with ART (Acoustic Resonator Technology), validated by lab measurements. ART reduces low‑frequency THD versus a conventional closed‑box design for cleaner, more transparent sound, helping minimize resonance, coloration and unwanted low‑frequency excitation in false ceilings. Installation is streamlined for integrators thanks to front‑accessible connections and power selection, allowing wiring and tapping adjustments even after the speaker is already installed. The loudspeaker is IP66 rated for reliable operation in humid or dusty environments, and it features a magnetic frameless grill with a removable logo for a clean, minimalist finish.
- Subwoofer in-ceiling loudspeaker,, 100 WRMS.
- 10" woofer.

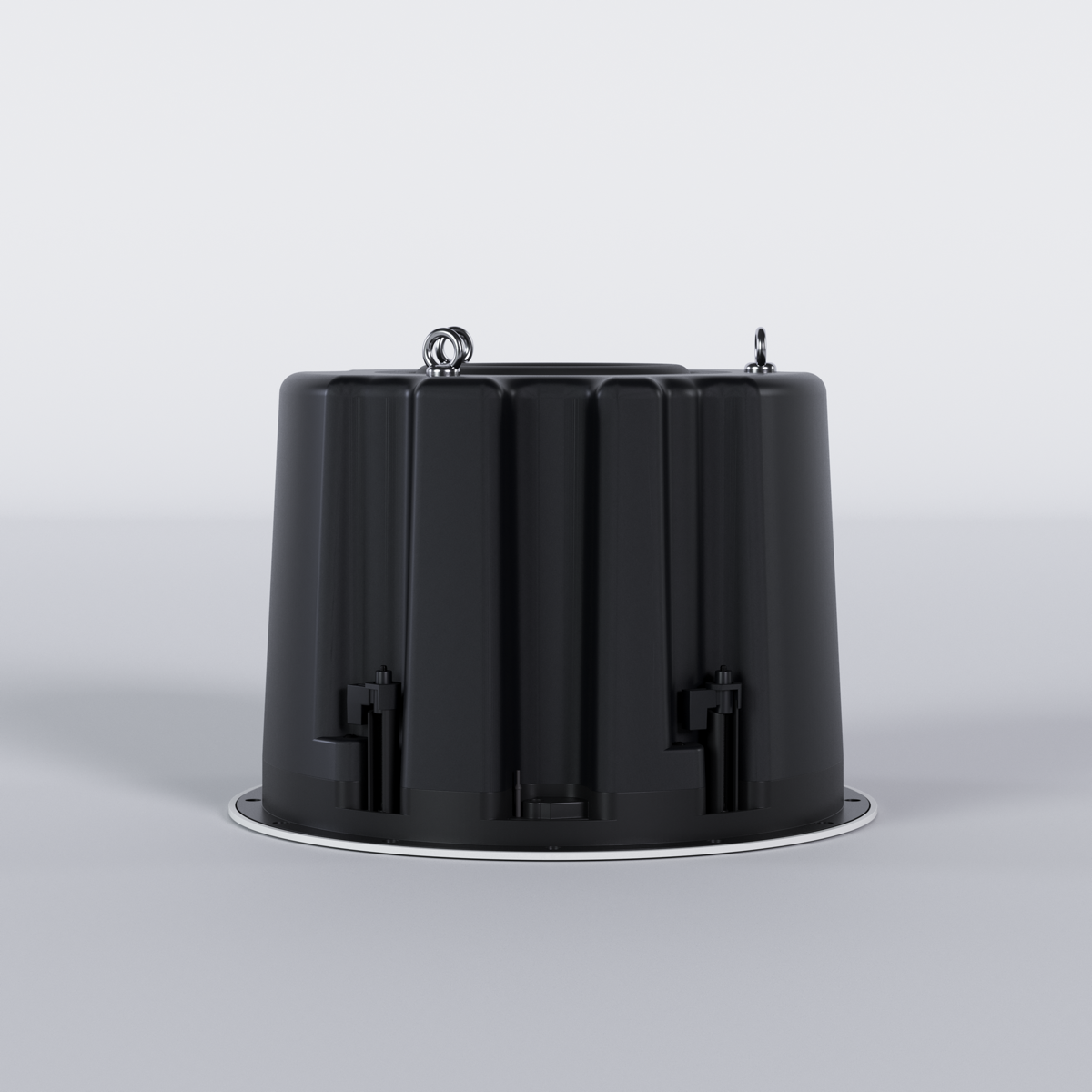

- ART technology Backcan.
- Euroblock connector accessible from the front panel.
- 8 Ω nominal impedance.
- High impedance built-in transformer, allowing for multiple units connected to a 70V / 100V line audio amplifier.
- 8Ω or high impedance power selection accessible from the front panel, once the loudspeaker is already installed in the ceiling.
- IP66 rated.

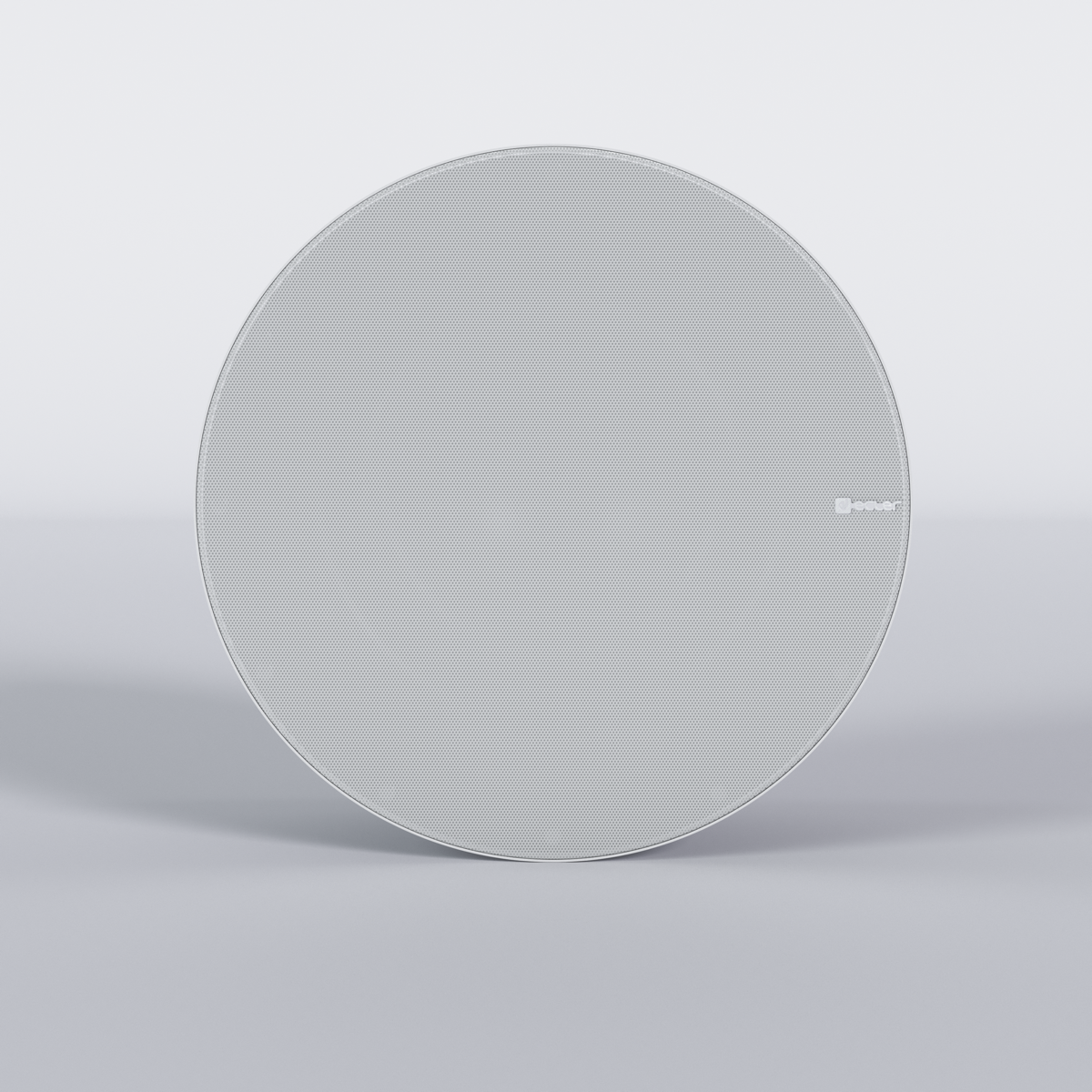

- Magnetic frameless front grill that easily removable.
- The Ecler logo is removable.
- Fast installation procedure using a basic set of tools.
- Available in white (RAL 9003).
- Tile bridge for securing the loudspeaker in suspended ceilings included.
- Optional black grill finish (RAL9005) available with NICRG10BK accessory. Archivos EASE disponibles.
General
- Product series
- NIC
- Application
- Ceiling, Subwoofer
- Active/Passive
- Passive
- Color
- White
Speaker drivers
- LF
- 10 "
Audio specifications
- Impedance
- 8 Ohm
- Frequency range min
- 56.1 Hz
- Frequency range max
- 780 Hz
- Sensitivity (1W/1m)
- 89 dB
- Power handling
- 100 W RMS / 200W Program / 300W Peak
- 70/100V
- Yes
- Transformer taps (100V)
- 20W / 40W / 80W
- Transformer taps (70V)
- 10W / 20W / 20W
- Max SPL
- 109 dB continuous / 115 dB peak
- Coverage angle (Hor)
- 180 ° conical
- Coverage angle (Ver)
- 180 ° conical
Connections
- Audio inputs
- Euroblock spk. cable 4‑pin Euroblock connector, mounted on the front of the baffle. Accepts cable sizes from 18 AWG (0.8 mm²) to 14 AWG (2.5 mm²)
- Dante
- No
- Bluetooth
- No
- Ethernet (RJ-45)
- No
- Wi-Fi
- No
Dimensions and weight
- Installation depth
- 320 mm
- Width
- 402 mm
- Depth
- 402 mm
- Height
- 271 mm
- Net weight
- 12 kg
Additional information
- Outdoor use
- No
- Included Accessories
- 4 pin connector, 1 cutting template, 1 tile bridge.
- Amount in delivery
- Single unit
Packaging info
- Packaging size
- 415 x 409 x 298 mm
- Packaging weight
- 4.80 kg
