Expands the 10 output module ATO 24V 1HE with ten outputs. The 10 Output module ATO 24V distributes and secures power to up to ten 24 V applications. It is easily mounted in the 10 Output Module ATO 24V 1HE.
Alarm in the event of a fuse failure via LED and relay. Three of the load outputs are prioritized, while seven are optionally unprioritized. In the event of a power failure, the voltage is only interrupted on the unprioritized outputs, if there is reserve power from the battery backup. Need more connections? Easily expand with two extra cards and get a total of 30 outputs.
Common areas of application
• For expanding more 24V applications in access systems, such as door environments.
• For more devices in security applications in alarm systems, such as magnetic holders/contacts.

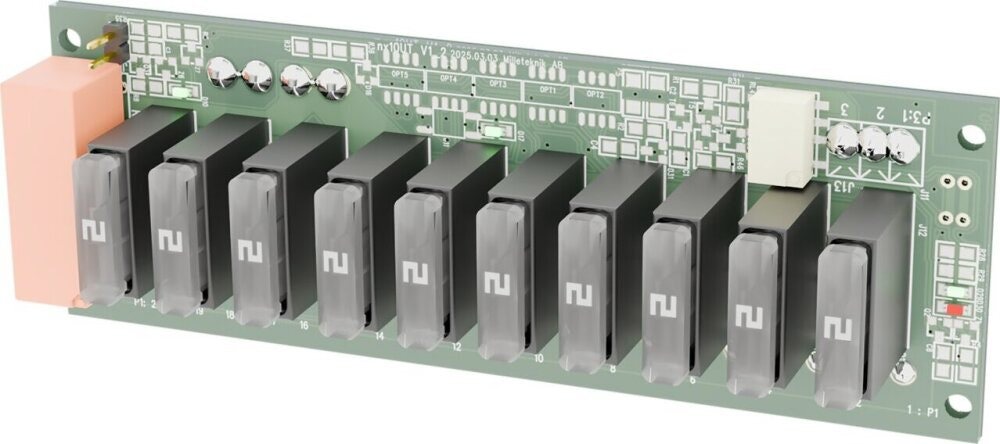

Technical description: Fuse card with ten 1-pole fused outputs. Each output has a blade fuse and can be loaded with up to 2 A per output and a maximum of 10 A for the entire board.
Voltage in: 27.3 V DC, (24 V). Voltage out: 27.3 V DC, (24 V).
Self-consumption is the power output the circuit board has when the system is in operation and in battery operation.
Outputs: Ten 1-pole fused load outputs, of which three can be configured as priority so as not to break in the event of a power failure.
Alarm: Fuse failure is indicated via LED and a changeover relay for quick troubleshooting.
Load fuses: Ten 2 A blade fuses.
LED on board lights up when incoming supply and output are connected.
