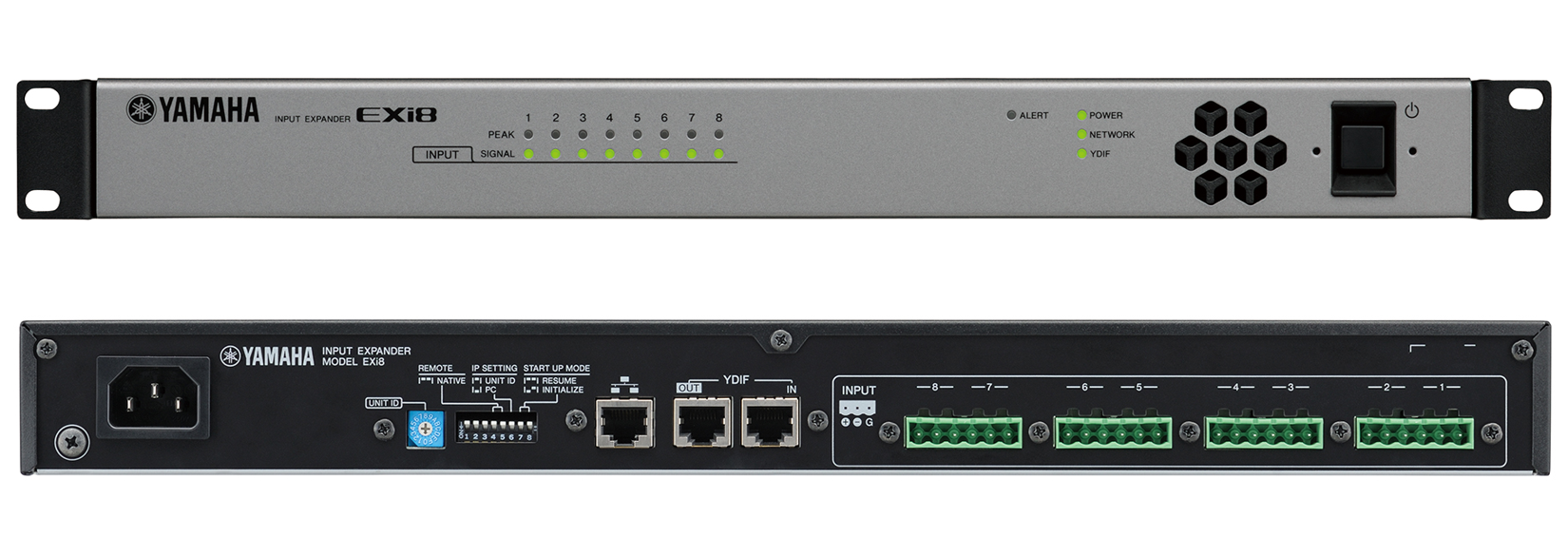

EXi8 input expander convert analog microphone/line audio to digital and transmits the signal using Yamaha’s YDIF format. The EXi8’s preamps can be controlled remotely from an MTX/MRX series
processor via Ethernet cable.
Key Features:
• 8ch mic/line input, 16 digital I/O (via YDIF*)
• Signal processor MTX/MRX series can expand YDIF* equipped inputs with Exi8 input expander
• Easy setup and parameter control with MTX Editor
YDIF: the newly developed digital transmission format; a unique propriety Yamaha technology that delivers 16ch audio and word clock transmission via standard CAT5 Ether cable
- Compatible hardware
- MTX/MRX-Series
Audio specifications
- Number of channels
- 8 Mic/Line, 16 digital I/O via YDIF (RJ-45)
Energy
- Power Supply
- 100-230V 50/60Hz
- Consumption max
- 25 W
Dimensions and weight
- Width
- 480 mm
- Depth
- 351 mm
- Height
- 44 mm
Additioinal information
- Included Accessories
- Power cord, Euroblock plugs (3-pin, tabbed) x8
- Warranty
- 5 years
Packaging info
- Packaging size
- 570 x 500 x 150 mm
- Packaging weight
- 6.10 kg
