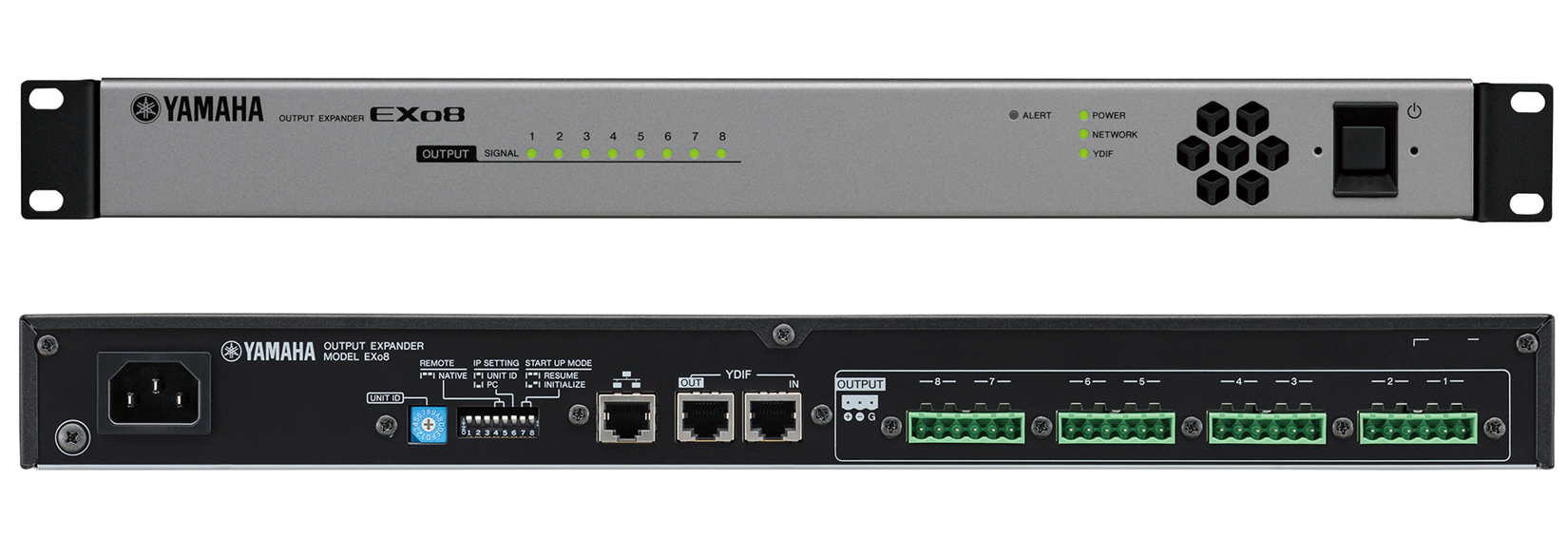

EXo8 output expander feature 8 channels of DA converters that produce high quality analog audio by converting digital output from MTX/MRX series processors via YDIF.
Key Features:
• 8ch analog output, 16 digital I/O (via YDIF*)
• Signal processor MTX/MRX series can expand YDIF* equipped outputs with Exo8 output expander
• Easy setup and parameter control with MTX Editor
YDIF: the newly developed digital transmission format; a unique propriety Yamaha technology that delivers 16ch audio and word clock transmission via standard CAT5 Ether cable
Audio specifications
- Number of channels
- 8 analog output, 16 digital I/O via YDIF (RJ-45)
Energy
- Power Supply
- 100-230V 50/60Hz
- Consumption max
- 25 W
Dimensions and weight
- Width
- 480 mm
- Depth
- 651 mm
- Height
- 44 mm
Additioinal information
- Included Accessories
- Power cord, Euroblock plugs (3-pin, tabbed) x8
- Warranty
- 5 years
Packaging info
- Packaging size
- 570 x 500 x 150 mm
- Packaging weight
- 5.90 kg
