Compact, portable, and even rack mountable, the TF1 offers impressive capability and versatility for smaller systems.
Yamaha has always made it a mission to stay in touch with the needs of sound engineers worldwide. The outcome is evident in the success of the recent CL and QL series digital mixing consoles, and the flagship RIVAGE PM10. The key to success has always been in supporting the user’s creativity. Creativity is most effective when unrestricted, and now Yamaha has created a new digital mixing console that gives the user's intuition even freer rein. TouchFlow Operation™ introduced in the TF series consoles allows the user to respond to the music and artists on stage with unprecedented speed and freedom, taking live sound reinforcement to a new level of refinement. With the TouchFlow Operation interface optimized for touch panel control, experienced engineers as well as newcomers to the field will find it easier than ever to achieve the ideal mix. Recallable D-PRE™ preamplifiers support sound quality that will satisfy the most discerning professional ears, while advanced live recording features and seamless operation with high-performance I/O racks give these compact digital mixers capabilities that make them outstanding choices for a wide range of applications. Experience the intuitive control and creative freedom that a truly evolved digital console can provide.

Key Features:
• 16 + 1 fader configuration
• Input channels: 32 mono, 2 stereo, 2 return.
• Busses: 20 Aux (8 mono, 6 stereo), Stereo, Sub, 4 matrix.

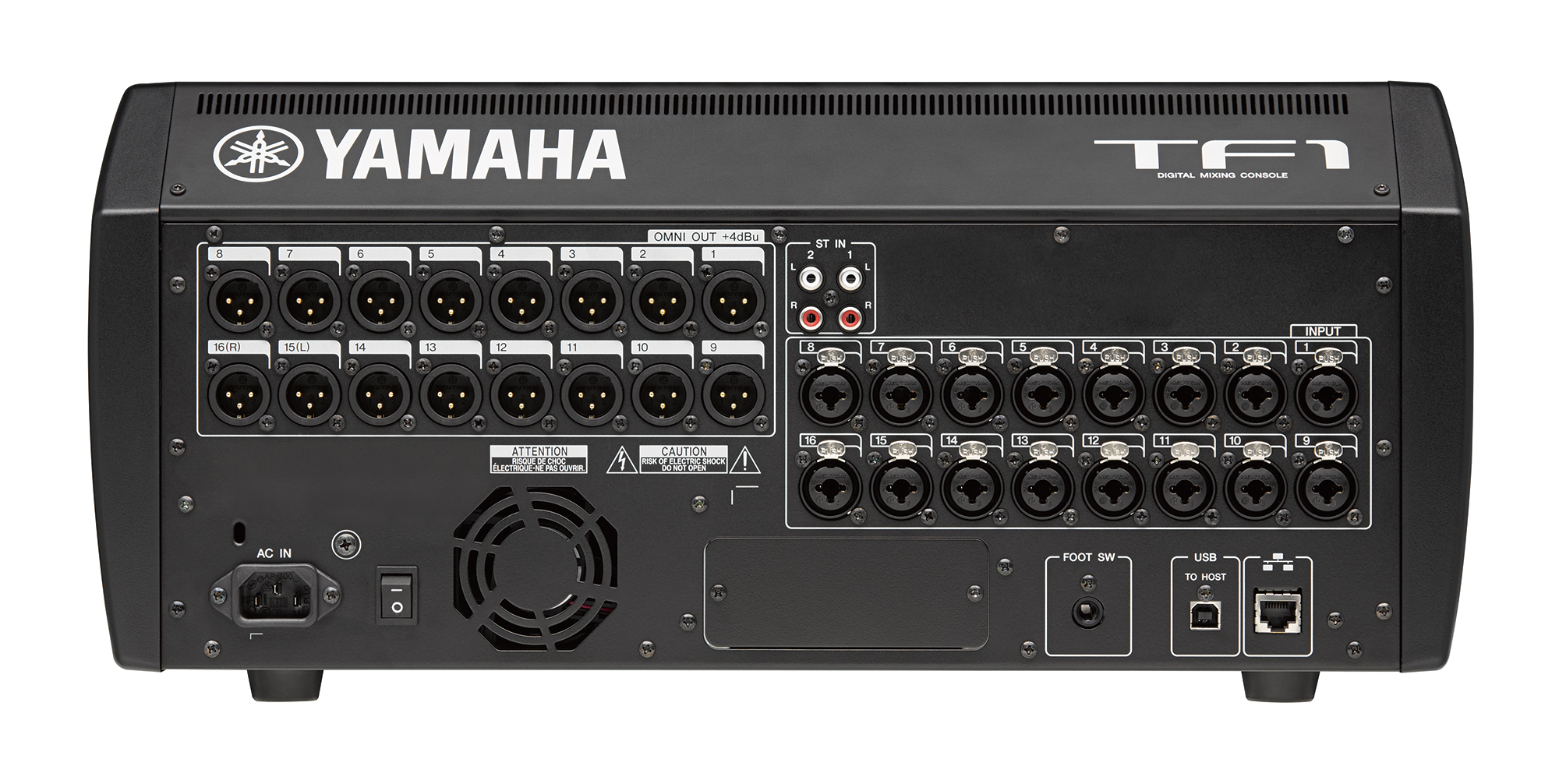

• Local I/O: 16 mic/line + 2 stereo line in, 16 out.
• Recallable “D-PRE™” Microphone Preamplifiers provide an ideal sonic foundation.
• Intuitive user interface optimized for touch panel operation.
• Traditional Overview and Selected Channel Interfaces
• “1-knob COMP™” & 1-knob EQ™ make it easy to dial in the ideal sound.
• “QuickPro Presets™” provide instant access to pro sound setups.
• “GainFinder™” supports precision gain setup
• “DCA Roll-out” enhances group control.
• “SENDS ON FADER” buttons instantly bring the specified AUX or FX bus levels up on the faders for easy verification and adjustment.
• Seamlessly integrated remote control and offline editing via an Apple iPad® or other computing device.
• Direct 2-track recording to USB storage devices, or serious multitrack recording to a DAW via USB.
• Multitrack recordings can be used for “virtual sound checks” when performers aren’t available.
• 1 expansion slot for NY64-D audio interface card
• Other features: 8 Powerful Processing/Effect Units, User Defined Knobs, User Defined Keys, 8 DCA groups, and more.

TouchFlow Operation™ - Smooth, Natural Control Flow - Yamaha digital consoles have always been designed with input from leading engineers worldwide to ensure that the most efficient, intuitive operation is achieved. The highly regarded Selected Channel and Centralogic™ interfaces attest to the success of that approach. The TF series combines Yamaha know-how with new input from the field and the latest touch-screen technology to deliver an evolved experience in console operation. Smooth setup and operation, practical presets and scenes, refined design, and software applications that integrate seamlessly with the entire system: these elements comprise TouchFlow Operation, a new concept in console interfaces that offers unprecedented comfort and convenience in small consoles, for a wide range of users and applications.

Touch Operation for Intimate Control - Refined for the smoothest possible operation via touch-panel control, the TF user interface offers a smooth workflow that can be an advantage in any mixing situation. The display content has been specifically designed for easy, direct accessibility, with a layout that promotes the most natural, efficient mixing. Touch panel operation is as easy as shaping the sound with your fingertips.

Touch & Turn Knob Offers Extra Control Precision - When you need extra precision for a fine EQ or other adjustment, the physical Touch & Turn knob is always available right beside the touch panel. There are also four User Defined Knobs below the panel that can be assigned to control compressor threshold, EQ gain, or other parameters you need fast, direct access to while mixing. The knobs always affect the currently selected channel.
