Lo-Z/Hi-Z switchable Class-D mixer amplifier (Lo-Z: 120W x2 @4Ω, 100W x2ch @3Ω/8Ω, Hi-Z: 120W x2ch or 200W x1ch, 70V/100V) equipped with 6 mic/line inputs, 2 stereo inputs and powerful DSP functions for high quality music playback and microphone use.
Features:
- Easy setup, and a user-friendly interface for effortless operation
- Supporting Lo-Z (120W x2ch @4Ω or 100W x2ch @3Ω/8Ω) and Hi-Z (120W x2ch or 200W x1ch, 70V/100V) speaker systems
- Flexible 6 mic/line inputs and 2 stereo inputs, with all 6 mic inputs featuring a 24V settings
- DSP functions for music playback and microphone use (Feedback Suppressor, Priority Ducker, Leveler, Compressor, Reverb & Echo)
- Bass and treble stereo source EQ with an enhancer function
- Output EQ for optimizing the sound of each Output channel
- Built-in speaker EQ optimum for Yamaha VXC/VXS series speakers, as well as HPF and selectable LPF settings
- Capable of controlling sources and volumes seperately in two areas (Source/volume zoning)
- Service areas or zoning areas can be expanded by adding a PA2120
- Remote volume control and microphone on/off switching via optional DCP control panels (DCP4V4S, DCP1V4S, DCP4S, max 2 units)
- Intelligent protection function ensures safe, reliable operation
- Certified by ENERGY STAR
- Certified as Yamaha Eco Products
- Space-saving 1U rack size (*sufficient space must be provided above and below the unit for airflow and cooling.)
General
- Product series
- MA
- Amplifier type
- Installation amplifier, Mixer amplifier, Zone amplifier
Audio specification
- Amp channels
- 2
- 100V High-Z
- Yes
- Power/ch (4 Ohm)
- 120 W x2 (4 Ohm), 100W x2 (8 Ohm)
- Power/ch (70/100V)
- 120 W x2 (70/100V), 200W x1 bridged
- Distortion THD
- 0.2 %
- Frequency range min
- 50 Hz 1-8 Ohm / 90Hz 70/100V
- Frequency range max
- 20,000 Hz
- Built-in DSP
- Yes

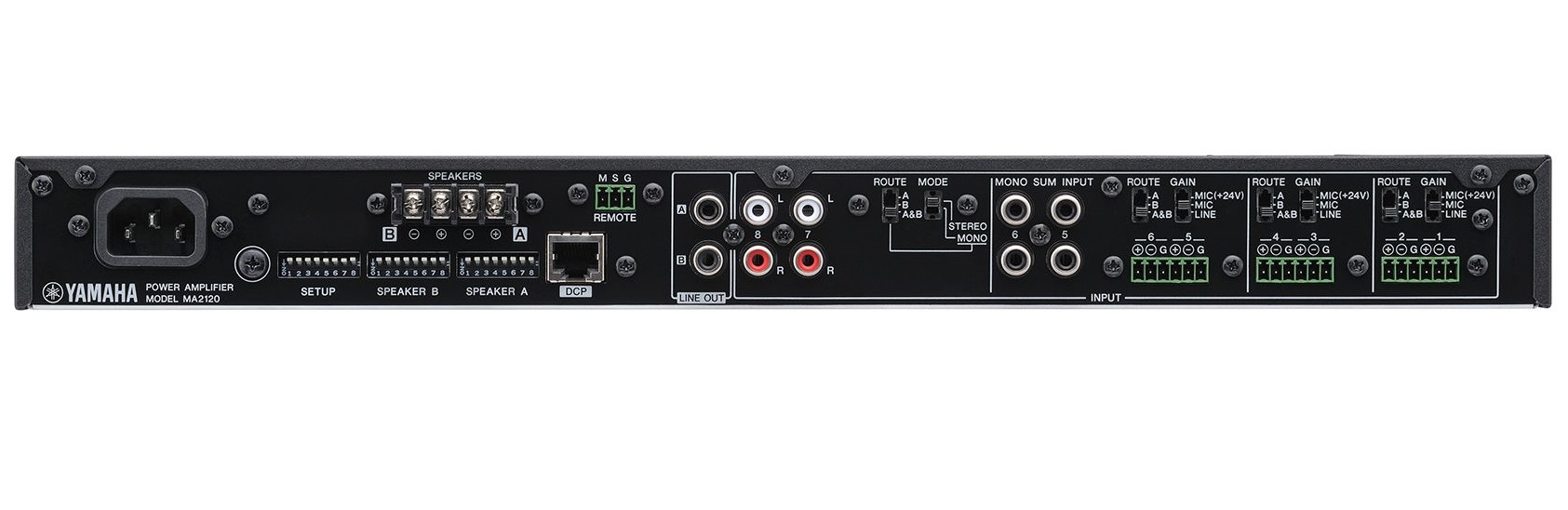

Connections
- Audio inputs
- 3,5mm tele Stereo (front)
- Audio inputs
- Euroblock line Input 1-6: 3.5mm Euroblock (6-pin, balanced) x 3
- Audio inputs
- RCA Input 7-8: Stereo RCA pin (unbalanced) x 2, Input 8: 3.5mm Stereo mini phone (unbalanced), Input 5-6: RCA pin (MONO SUM, unbalanced) x 4
- Audio outputs
- RCA LINE OUT: MONO RCA pin x2 (unbalanced)
- Audio outputs
- Terminal panel spk. cable x2 pairs
- Bluetooth
- No
- Wi-Fi
- No
- Control
- Front buttons
- Control
- Remote Control Panel Yamaha DCP Controllers (DCP4V4S, DCP1V4S , DCP4S)
Energy
- Power Supply
- 100V, 120V, 230V - 240V, 50Hz / 60Hz
- Amplifier class
- Class D
- Cooling method
- Air passive (fanless)
- Consumption max
- 60 W 60W (1/8 max power, 4Ω, AC100V, pink noise at all channels)
Dimensions and weight
- Width
- 480 mm
- Depth
- 379 mm
- Height
- 45 mm
- Net weight
- 4.9 kg
Additional information
- Installation
- 19" Rack, 1U
- Included Accessories
- AC power cable, 3.5mm Euroblock plug (6-pin) x 3, Euroblock plug (3-pin) x 1, Owner's manual, Setup guide
- Warranty
- 2 years
Packaging info
- Packaging size
- 570 x 500 x 150 mm
- Packaging weight
- 6.77 kg
- Barcode
- 4957812591232
