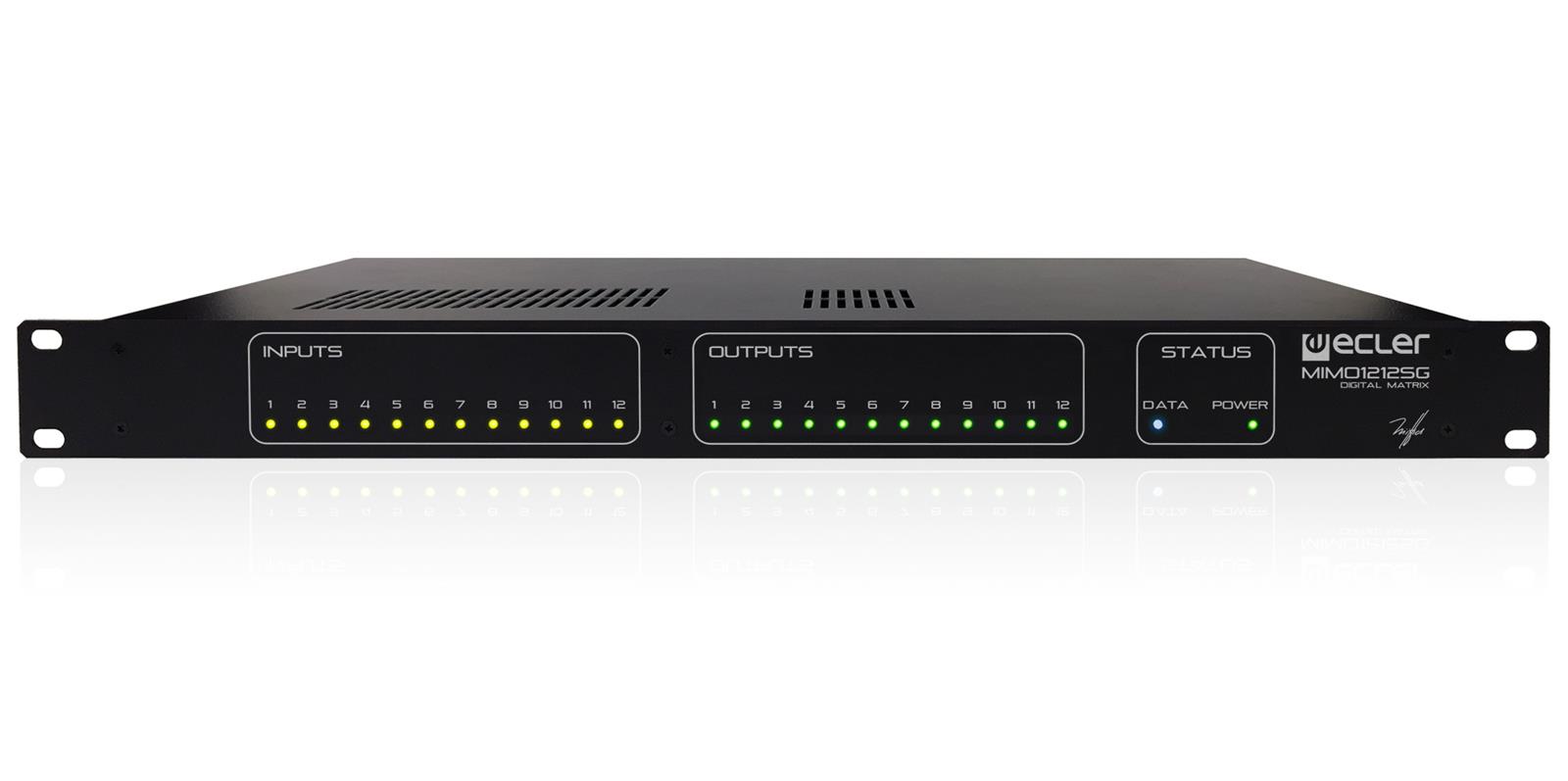

MIMO1212SG (MIMO1212 SINGLE) is an EclerNet digital audio device that keeps the heart and soul of the standard MIMO88, its main features and its audio quality, to become a simplified and cost-effective version (12x12) of this acclaimed digital matrix.
- 12x12 digital matrix (not expandable)
- Fully programmable and controllable via EclerNet software
- Remotely controlled with UCPs (User Control Panels), when a UCP Server is in the system, compatible with the touchscreen WPNETTOUCH and third-party devices, such as computers, tablets, smartphones, etc.
- TP-NET protocol compatible, for third-party control systems integration
- DSP processing: signal generator, delays, full parametric EQ filters at inputs and outputs, inputs noise gate, level, mute, phase, vu-meters, outputs compressor / limiter, paging and ducking (priority & overriding), virtual and physical paging stations management, presets save & recovery, scheduled events triggering, etc.
- FREQUENCY SHIFTER function to avoid acoustic feedback, available in 4 inputs
- WPNET4KV and WPNET8K compatible control panels (using specific retro-compatible Firmware).
Applications
- Retail
- Education
- Corporate
- Hospitality
- Innebygd DSP
- Ja Processor: 2 x 32/64bit
- Video inputs
- 12
- Video outputs
- 12
- Frekvensområde Min
- 5 Hz (-3dB)
- Frekvensområde Maks
- 24 000 Hz (-3dB)
- Styring
- RS-232
- Styring
- GPI/O 12x GPIs
- Styring
- Ethernet/IP (RJ-45)
- Styring
- Remote Control Panel WPNET4KV and WPNET8K EclerNet Wall Control Panels, VPa Wall Remote Controllers
General
- Produktserie
- MIMO
- Applikasjon
- Fixed I/O

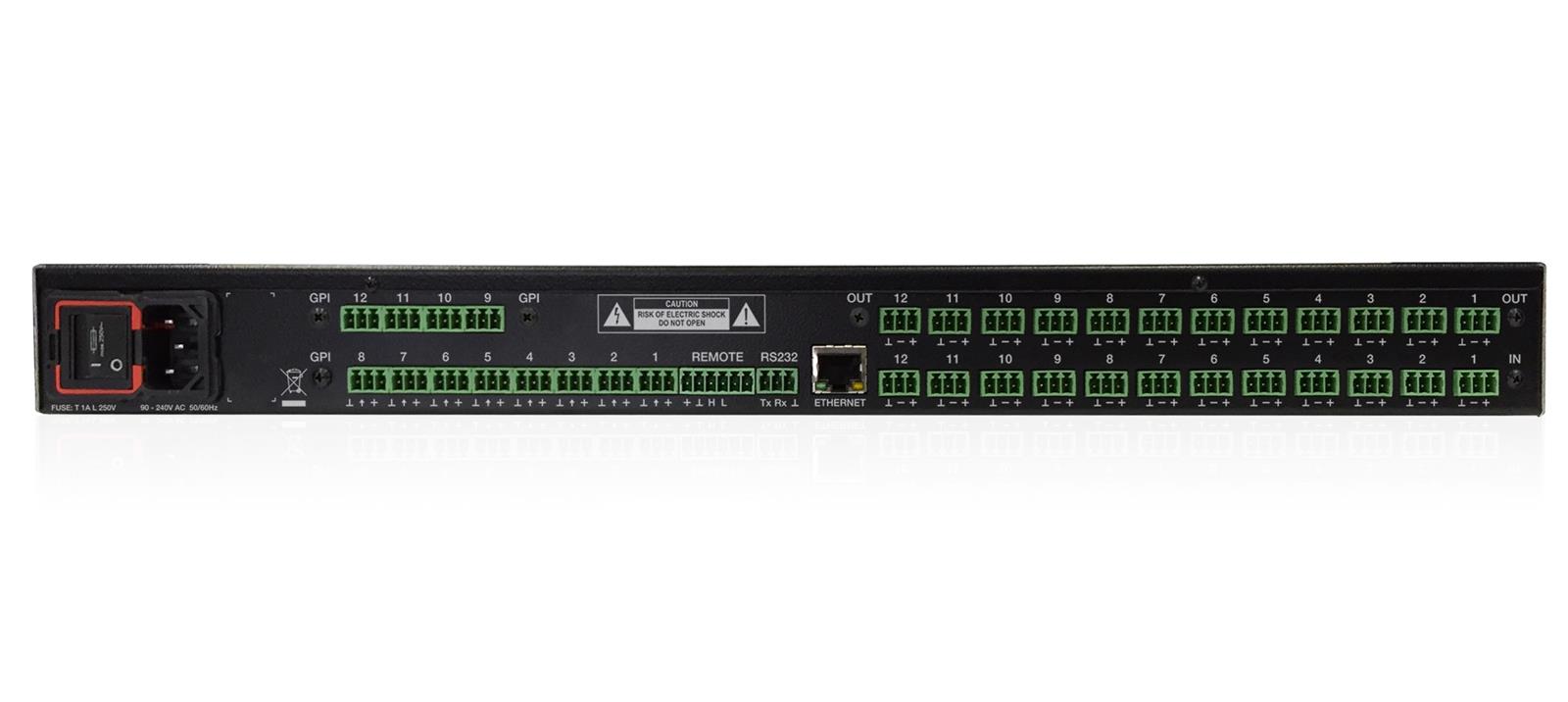

Connections
- Ethernet
- Ja
- Lydinnganger
- Euroblock line x12 Mic/Line Balanced with Phantom Power: +42VDC, 5mA max. software switched
- Lydutganger
- 6,3mm tele x1 Headphone out (front)
- Lydutganger
- Euroblock line x12 Line, Balanced + 2x Monitor out
- Dante
- Nei
- Wi-Fi
- Nei
Energy
- Power Supply
- 90-264VCA 47-63Hz Internal Power Supply with IEC mains socket connector.
Størrelse & Vekt
- Width
- 482,6 mm
- Dypde
- 253 mm
- Høyde
- 44 mm
- Net weight
- 3,2 kg
Additional information
- Applikasjon
- 19" Rack, 1U
- Warranty
- 5 år
Pakkeinformasjon
- Pakkestørrelse
- 590 x 380 x 70 mm
- Pakkevekt
- 4,50 kg
