There's still no better solution for larger meeting rooms and lecture or collaboration spaces than our industry-leading TeamConnect Ceiling 2 ceiling microphone.

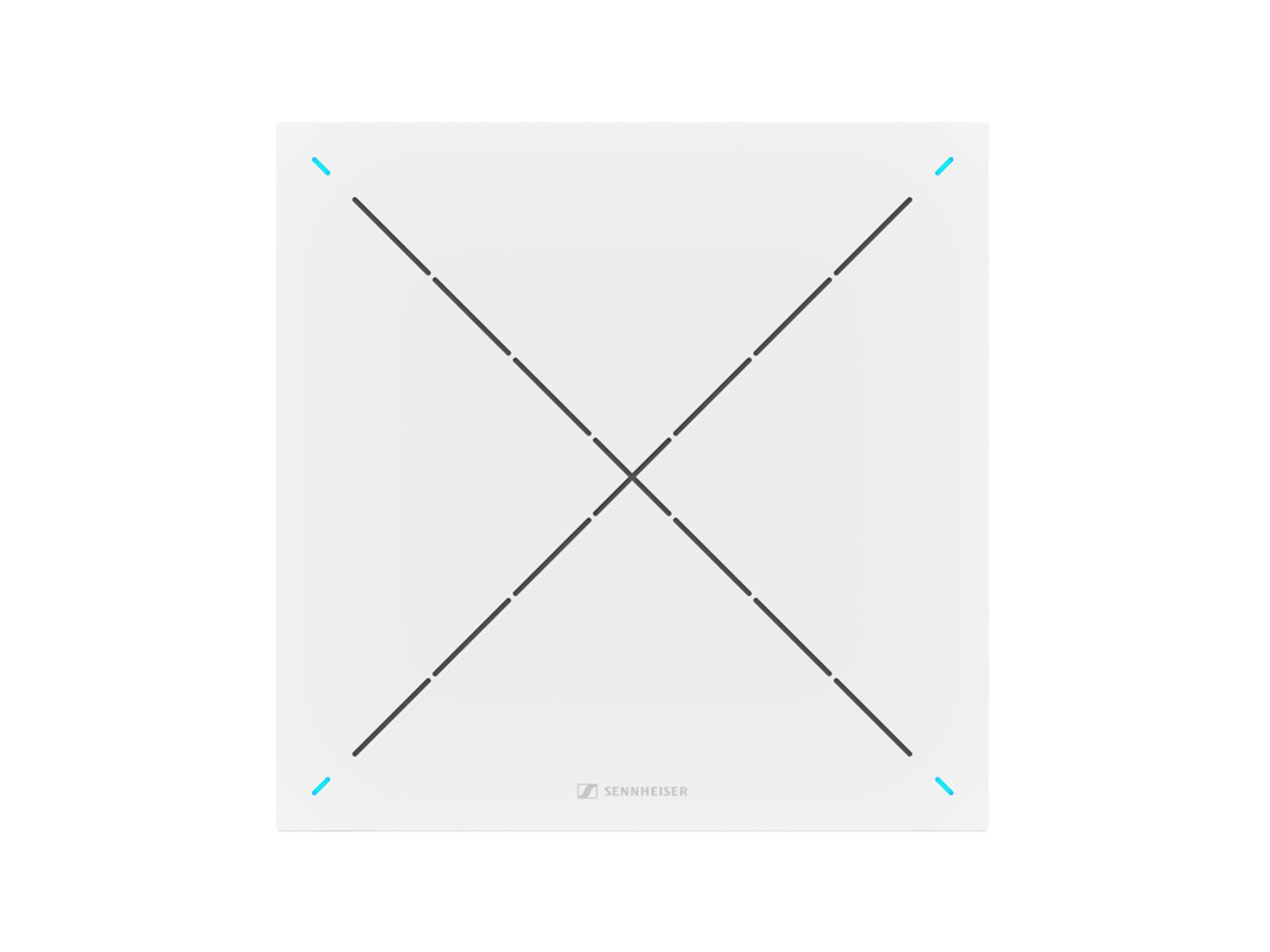

With its functional square form the TCC 2 gracefully integrates into the design of modern meeting rooms – simply by replacing a ceiling tile. The TeamConnect Ceiling 2 is a real problem-solver that allows cable free tables and flexible furniture arrangement, while offering all of the TeamConnect Ceiling Solutions benefits like Trusted Sennheiser Audio Quality, efficient setup, brand agnostic integration, simple management and control, a sleek design and a sustainable impact.
Features:
- Patented automatic dynamic beamforming
- TruVoicelift
- 28 Electret condenser capsules, made in Germany
- Perfect speech intelligibility
- Dante or Analog Output
- PoE
- Certified for: MS Teams, Zoom, DingTalk and Tencent
- Exclusion Zones
- Priority Zone
- Camera Control via talker position data
- IEEE 802.1x
General
- Systemtype
- Tak
Audio specifications
- Microphone type
- Electret condenser 28x (Pre-polarised) KE 10-237 capsules
- Direktivitet
- Beamforming
- Frekvensområde Min
- 160 Hz
- Frekvensområde Maks
- 18 000 Hz
- Signal-to-noise ratio
- 83 dB (A)
- Mic sensitivity
- 988 mV/Pa

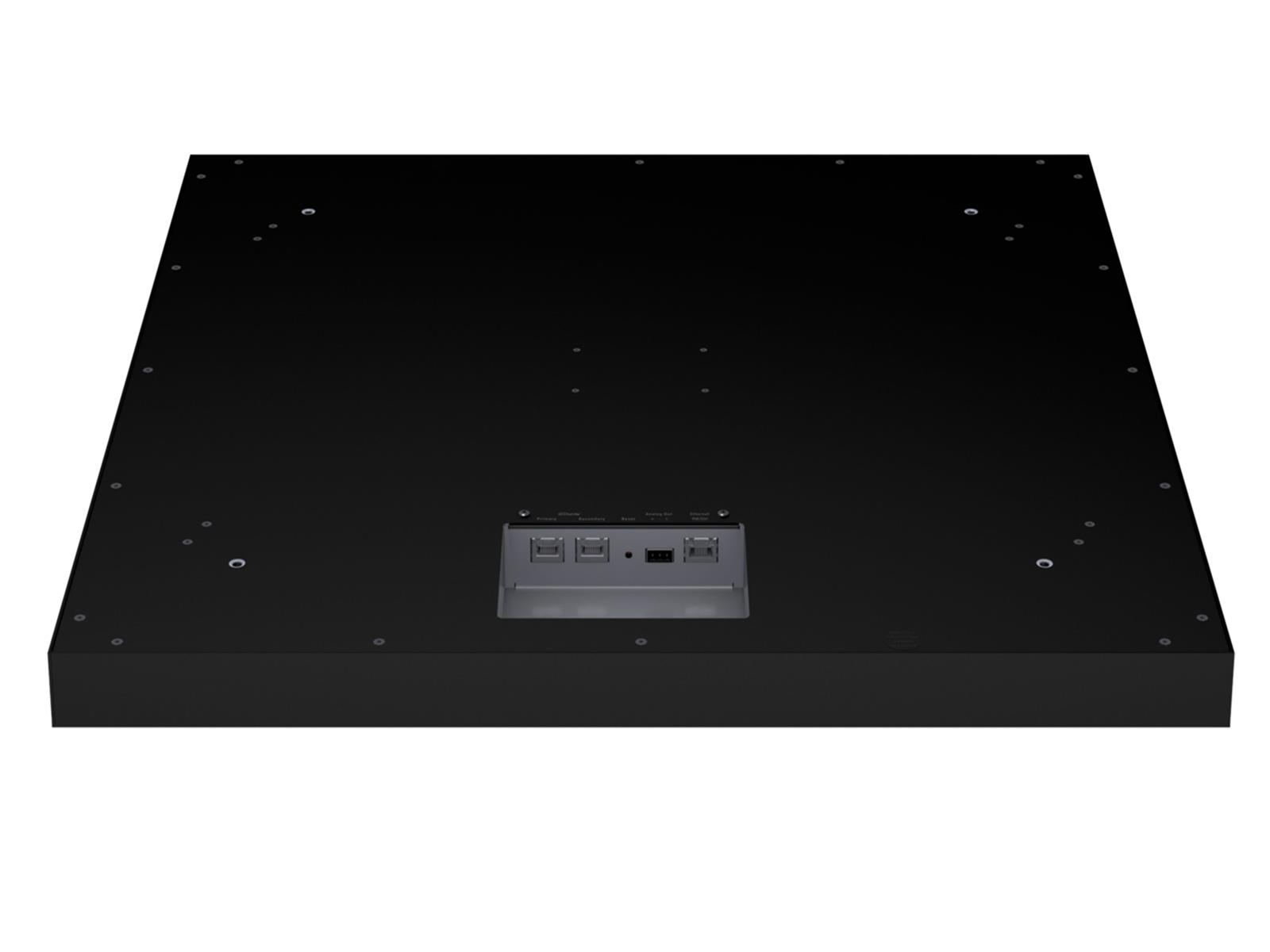

Connections
- Lydutganger
- Dante (RJ-45) 2 x Digital Dante Network Audio Channels
- Lydutganger
- Euroblock line 1 x 3-pin terminal (fits Phoenix contact MCVW 1.5-3-ST-3.81)
Energy
- Power Supply
- PoE IEEE 802.3af Class 3, Consumption max 8.8 W
Størrelse & Vekt
- Width
- 590 mm
- Dypde
- 590 mm
- Høyde
- 43 mm
- Net weight
- 5,67 kg
Additional information
- Farge
- Hvit
- Included Accessories
- 3-pin Phoenix Connector (3.81 mm), 8 self-adhesive rubber feet, 2 eye bolts (M4x10), Instruction manual, Supplement sheet
- Warranty
- 2 år
Pakkeinformasjon
- Pakkestørrelse
- 600 x 600 x 200 mm
- Pakkevekt
- 5,67 kg
