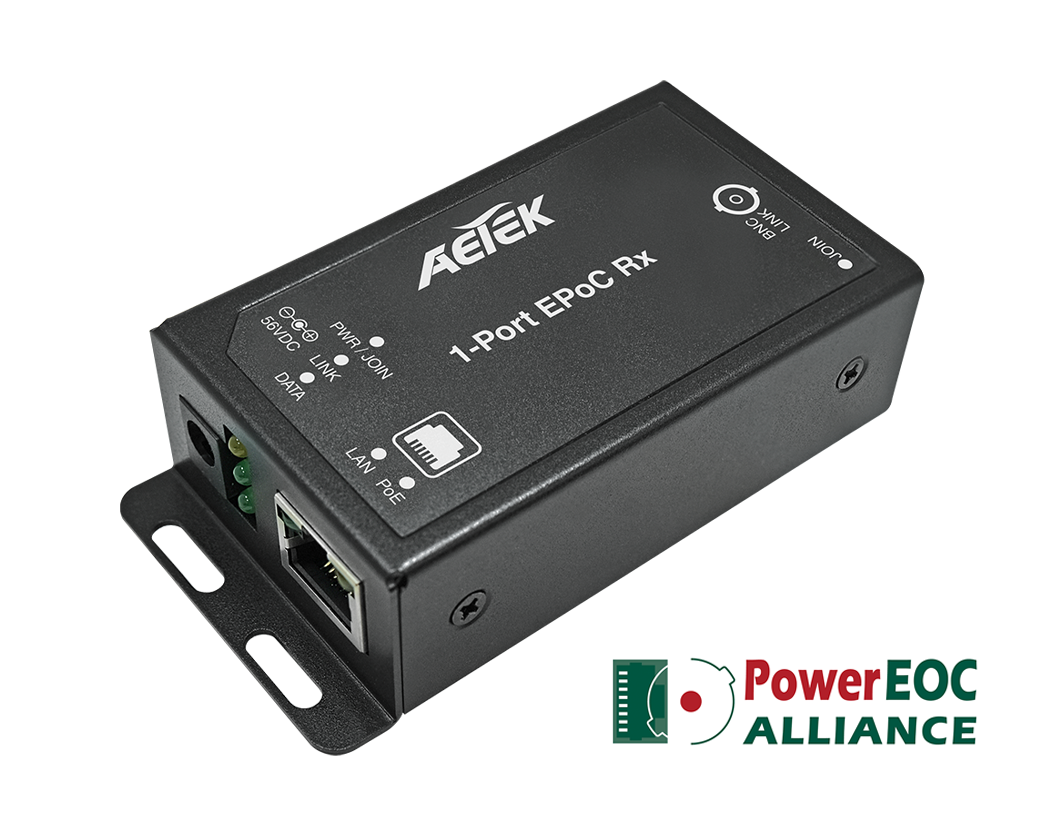

XE11-110-RX-V2 is an EPoC (Ethernet & Power over Coax) receiver(RX) equipped with 1 BNC port & 1 PoE PD LAN port. This cutting-edge model allows all of the power for the link to be sourced from a PoE switch or PoE injector.
IEEE 802.3bt 90W PoE is recommended for a long range PoE solution providing data & power to EPoC TX adapter and PoE IP camera over single coaxial cable up to 1,200m (3,937ft). Besides long range PoE solution, XE11-110-RX-V2 is also often used to upgrade legacy of CCTV to IP surveillance without changing existing coaxial cable infrastructure.
General
- Farge
- Svart
Størrelse & Vekt
- Width
- 103,4 mm
- Dypde
- 48,9 mm
- Høyde
- 27 mm
- Net weight
- 0,2 kg
