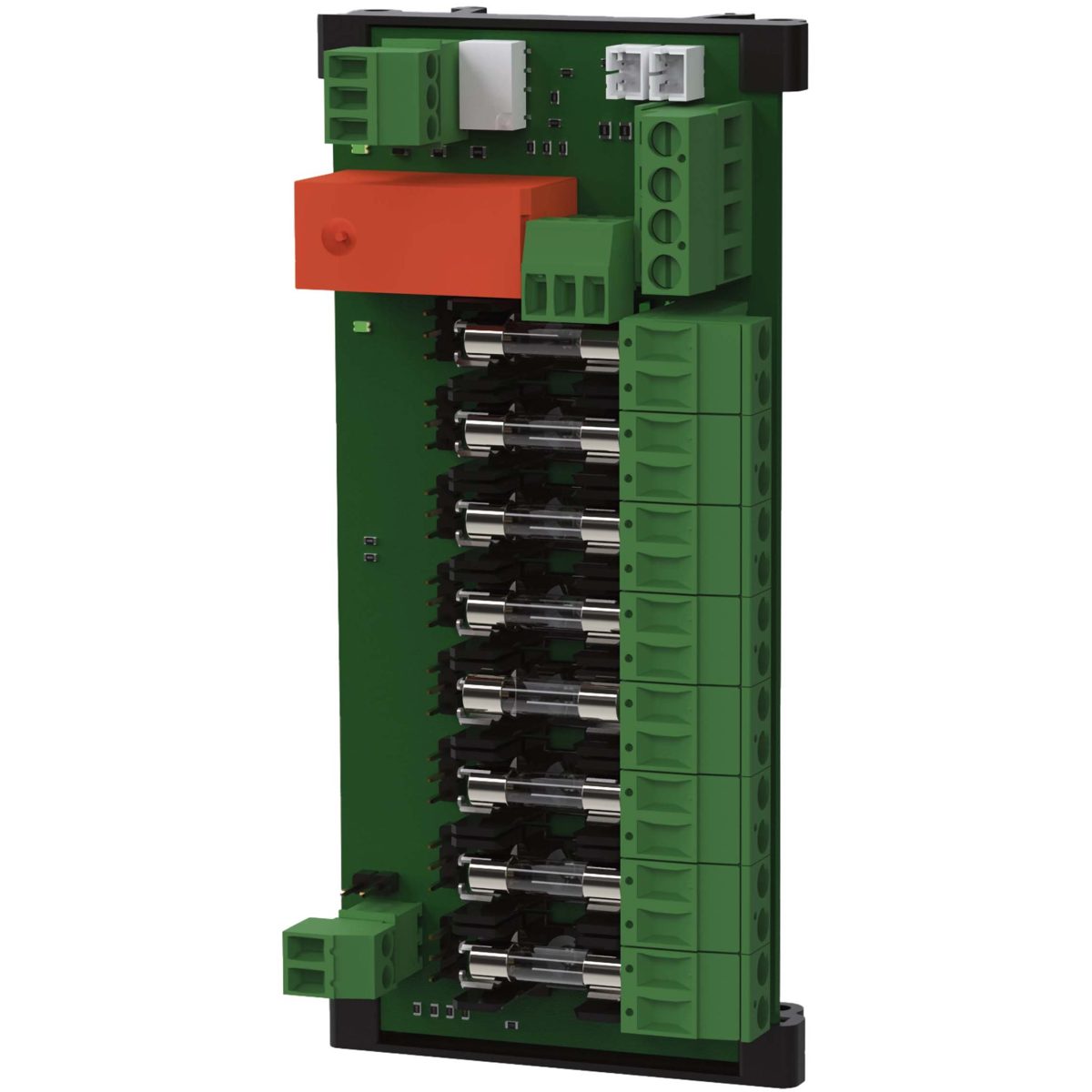

Option card with fuse and control of 8 1-pole fused outputs.

8 Output control module is an option card for control of all eight outputs. The card is 1-pole fused on each output. Each output can be jumpered as active or inactive when an alarm signal is given. The card can be controlled from the motherboard in the case of a delayed power failure alarm or from an external alarm input on the card. The type of output activation is selected with a jumper. In the event of an alarm, it is selectable whether activated outputs should provide voltage or whether voltage should cease in the event of an alarm. Sum alarms are obtained via a switching reactant, alarms are also displayed on an indicator diode.

Maximum load is 2 A per output and a total of 10 A for the entire card.

Dual voltage inputs simplify service.

Works with NEO, EN54 and NOVA in FLX S, FLX M, & FLX L.
