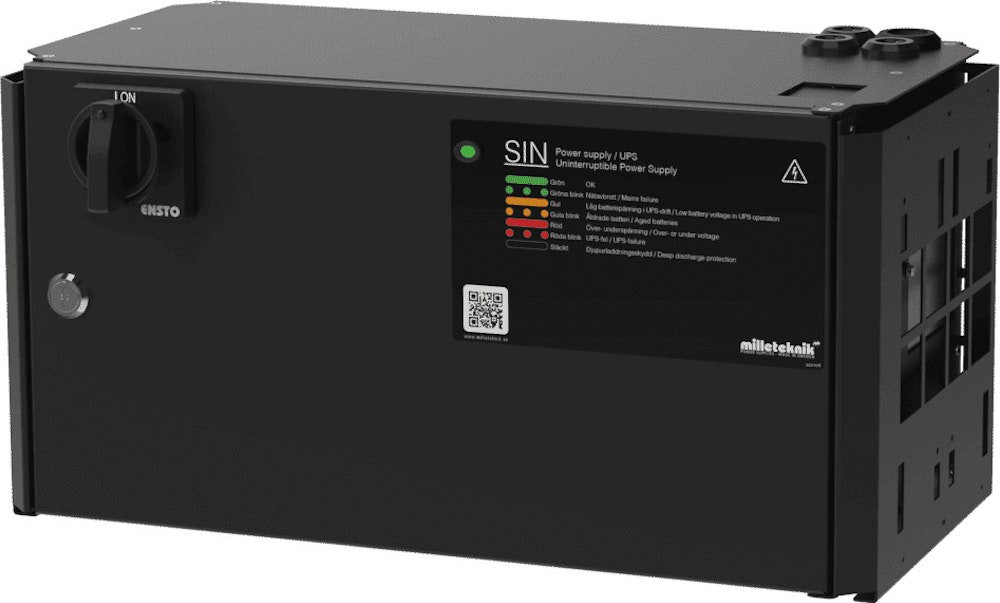

The UPS are designed with the latest switching technology and microprocessor monitoring, for the highest efficiency and operational reliability, providing long life for both electronics and batteries.
UPS is well protected with:
Isolation switch
Battery automatic fuse
Protection against overtemperature, overload and short circuit.
Complete self-test including advanced battery test.
The device is installation and service friendly with compact volume.
External wall brackets are included.
Modular structure. All electronics on cassette for easy servicing or upgrading.
FIELD OF USE
SINUS UPS is mostly used for:
Camera surveillance, PoE switches and other security systems.
Gate and door control of smaller and larger industrial and garage doors.
Note, batteries are not included!
Functions
- Form factor
- Rack mount, Wall mount
Electric specifications
- AC-inngangsspenning (V)
- 230 – 240 VAC
- Gjeldende vurdering
- 5 A
- Output power
- 600 W
- Utgangsspenning
- 230 V
Batteri
- Batteri kapasitet
- 20 Ah
- Batterispenning
- 12 V
- Tall
- 2 pcs.
Mål og vekt
- Width
- 437 mm
- Depth
- 212 mm
- Høyde
- 224 mm
- Net weight
- 10 kg
Additional information
- Certification
- CE direktivet enligt:765/2008, EMC Direktiv 2014/30EU, Emission: EN61000-6-:2001, EN55022:1998:-A1:2000, A2:2003 Klass B, EN61000-3-2:2001, Immunity: EN61000-6-2:2005, EN61000-4-2, -3, 4, -5, -6, -11, Lågspännings direktivet: 2014/35/EU
- Warranty
- 2 år
