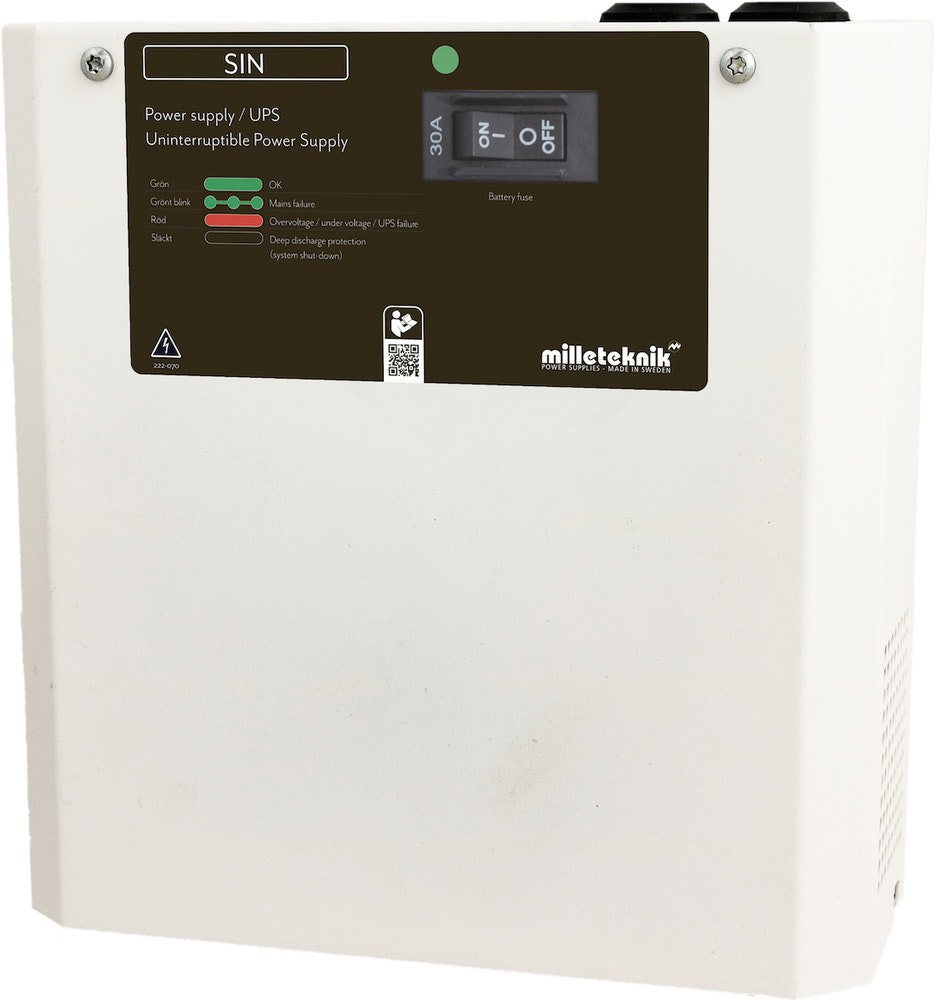

SINUS 200W UPS with clean, constant & regulated sine voltage incl. 1x 7Ah battery. Full self-diagnosis of charger, inverter and qualified battery test (alarm for aged battery). Protection for; overload, overvoltage, overtemperature, short circuit and deep discharge. Alarm for (1 output): Charging error, Inverter error and aged battery. 1 pc 230V load output (for emergency lighting systems; + 1 pc load output that only provides 230V in the event of a power failure). Automatic fuse on the cabinet front door to close the UPS function/make the unit voltage-free in UPS operation. The fanless enclosure is painted in white with structure, LED for alarm indication and equipped with 3 cable glands. The unit should be wall-mounted. Please note that the battery is included. 2 year warranty. SIN Small is mainly used in escape routes for door automation and for a small number of emergency lighting fixtures (60W at 1 hour operating time) where a simple and reliable power supply with UPS function is needed. The SIN series offers starting powers of 3x the rated power.
Functions
- Form factor
- Wall mount
Electric specifications
- AC-inngangsspenning (V)
- 230 – 240 VAC
- Gjeldende vurdering
- 5 A
- Output power
- 200 W
- Utgangsspenning
- 230 V
Batteri
- Batteri kapasitet
- 7,2 Ah
- Batterispenning
- 12 V
- Tall
- 1 pcs.
Mål og vekt
- Width
- 216 mm
- Depth
- 85 mm
- Høyde
- 230 mm
- Net weight
- 7 kg
Additional information
- Certification
- CE direktivet enligt:765/2008, EMC Direktiv 2014/30EU, Emission: EN61000-6-:2001, EN55022:1998:-A1:2000, A2:2003 Klass B, EN61000-3-2:2001, Immunity: EN61000-6-2:2005, EN61000-4-2, -3, 4, -5, -6, -11, Lågspännings direktivet: 2014/35/EU
- Warranty
- 2 år
