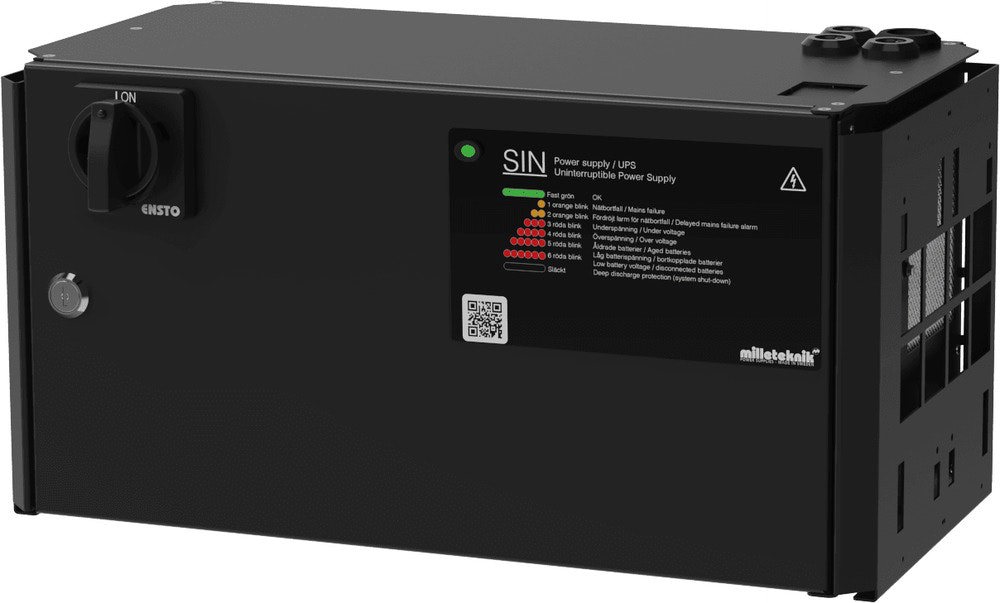

The UPS is designed with the latest switching technology and microprocessor monitoring, for the highest efficiency and operational reliability, providing a long service life for both electronics and batteries.
The UPS is well protected with:
Isolation switch
Battery circuit breaker
Protection against overtemperature, overload and short circuit.
Complete self-test including advanced battery test.
The unit is installation and service friendly with a compact volume.
Surface-mounted wall brackets included.
Modular design. All electronics on cassette for easy service or upgrade.
APPLICATION AREA
SINUS UPS is most commonly used for:
Camera surveillance, PoE switches and other security systems.
Gate and gate control of smaller and larger industrial and garage doors.
Note, batteries are not included!
Functions
- Form factor
- Rack mount, Wall mount
Electric specifications
- Gjeldende vurdering
- 6,5 A
- Output power
- 1 100 W
- Utgangsspenning
- 230 V
Batteri
- Batteri kapasitet
- 20 Ah
- Batterispenning
- 12 V
- Tall
- 2 pcs.
Mål og vekt
- Width
- 437 mm
- Depth
- 212 mm
- Høyde
- 224 mm
- Net weight
- 10 kg
Additional information
- Warranty
- 2 år
