Four-Channel Professional Microphone Input Device with Built-in Acoustical Echo Cancelation.
Key Features:
- Allows third-party professional microphones to be used with the EasyUSB Mixer/Amp
- Features four built-in wide-band echo canceling channels
- Four (4) XLR mic level inputs with assignable phantom power, high and low cut filters, GPIO and front panel lockout
- EasyUSB Port Output plugs into one EasyUSB Port Input on EasyUSB Mixer/Amp (Compliant with UC clients that use UAC drivers for USB 2.0)
- Up to eight microphones can be used on two EasyUSB Ports
The EasyUSB PRO MIC I/O is designed to integrate any professional microphone with Vaddio's™ EasyUSB audio solutions. The PRO MIC I/O incorporates Vaddio’s unique SmartMIC technology into the mixer, providing distributed multi-channel acoustical echo cancelation and automatic microphone mixing. Additional DSP/Digital Signal Processing technologies include noise reduction, microphone gating, equalization, filtering and AGC for automatically calibrating to the live requirements of the room.

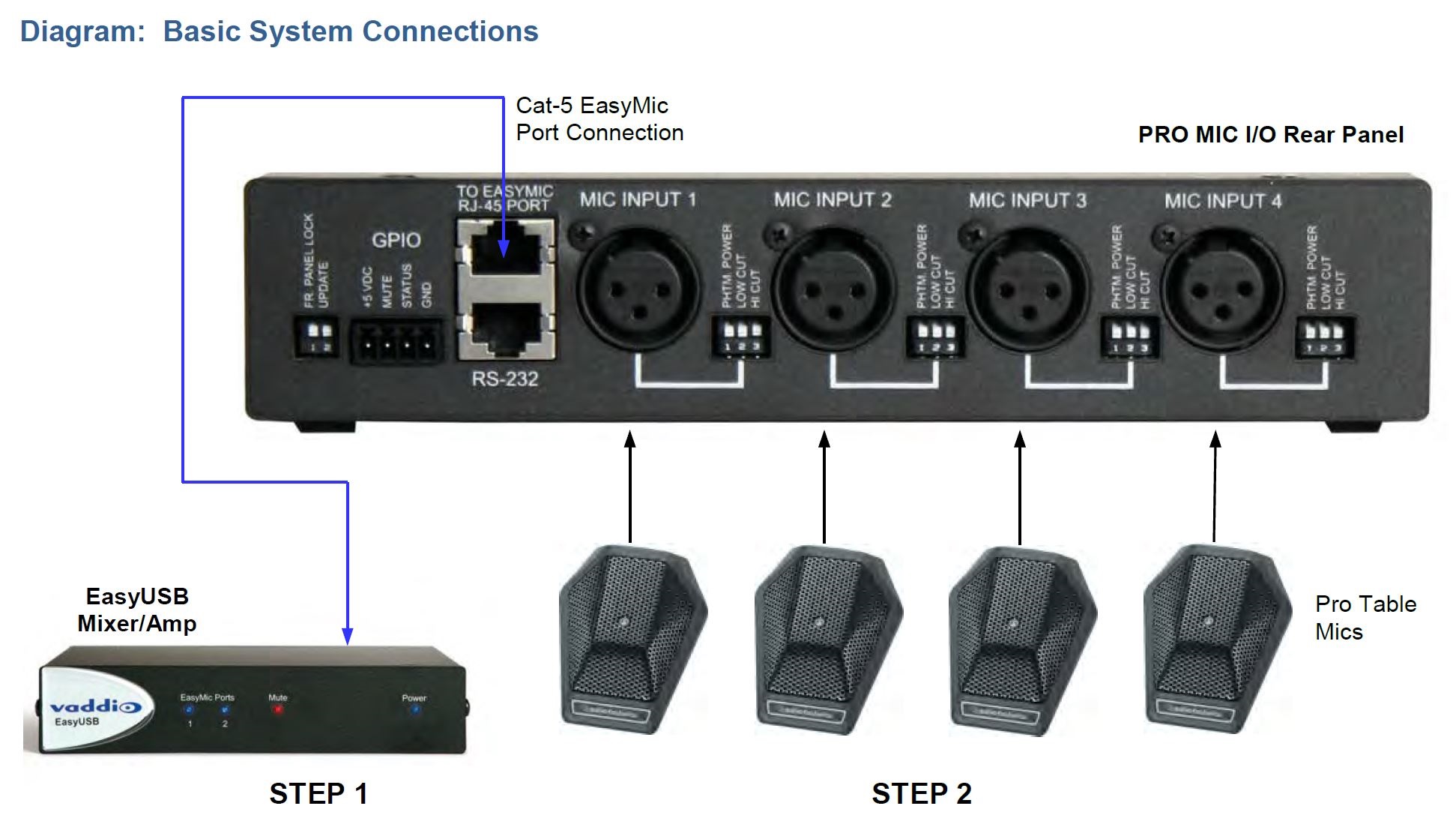

The PRO MIC I/O comes equipped with four independent echo cancelation microphone inputs and one discreet output for interfacing to the Vaddio EasyUSB Mixer/Amp. The system can be expanded to support eight microphones by adding an additional PRO MIC I/O.
This Package Includes:
- EasyUSB PRO MIC I/O Interface
- Quick-Start Guide
- 1x 4-position phoenix-style connector
- 4x rubber feet for the bottom of EasyUSB MicPOD I/O unit if not rack-mounted
- Video inputs
- 4
- Video outputs
- 1
- Distortion THD
- 0,02 %
- Frekvensområde min
- 20 Hz
- Lydinnganger
- XLR x4 Mono Mic with opt. 48V DCPhantom Power, Mic Pre Amp Adjustable
- Frekvensområde maks
- 20 000 Hz
- Lydutganger
- EasyMic Port (RJ-45) x1, Proprietary Interface (audio, power & control)
- Styring
- DIP-Switch, Front buttons, RS-232
Audio specification
- DSP
- Ja Acoustic Echo Cancellation, Automatic Gain Control, Noise Reduction, Automatic Microphone Mixing, HP/LP Filters
Connections
- Ethernet (RJ-45)
- Nei
- Wi-Fi
- Nei
- Dante
- Nei
Energy
- Power Supply
- 5V DC Power Supply
Størrelse & Vekt
- Bredde
- 212,9 mm
- Dypde
- 152,4 mm
- Høyde
- 43,7 mm
- Nettovekt
- 0,65 kg
Additional information
- Applikasjon
- 19" Rack, 1U With optional rack adapter
- Included Accessories
- See product text above
- Warranty
- 3 år
Pakkeinformasjon
- Pakkestørrelse
- 408 x 86 x 241 mm
- Pakkevekt
- 1,15 kg
