Professional audio USB interface for connecting existing audio equipment to USB-Based PC applications.
Key Features:
- Balanced Line Input: Mono line level (+4dB) input on 3-Pin Euro terminal mapped to the USB record channel
- Unbalanced Line Input: Mono consumer level input (-10dB) on RCA mapped to the USB record channel
- Balanced Line Output: Mono line level output on 3-pin Euro mapped to the USB playback channel
- Unbalanced Line Output: Mono consumer level output on RCA mapped to the USB playback channel
- USB Audio: UAC compliant Speakerphone with configurable terminal type for use with PC-based soft client
The EasyUSB AudioBRIDGE for integrating professional audio equipment into USB-based PC applications – Unified Communications, lecture capture, recording or any other application that requires professional audio. Existing meeting room audio equipment can now be used with any UC soft client – Microsoft Lync, Cisco Jabber, Google+, etc.

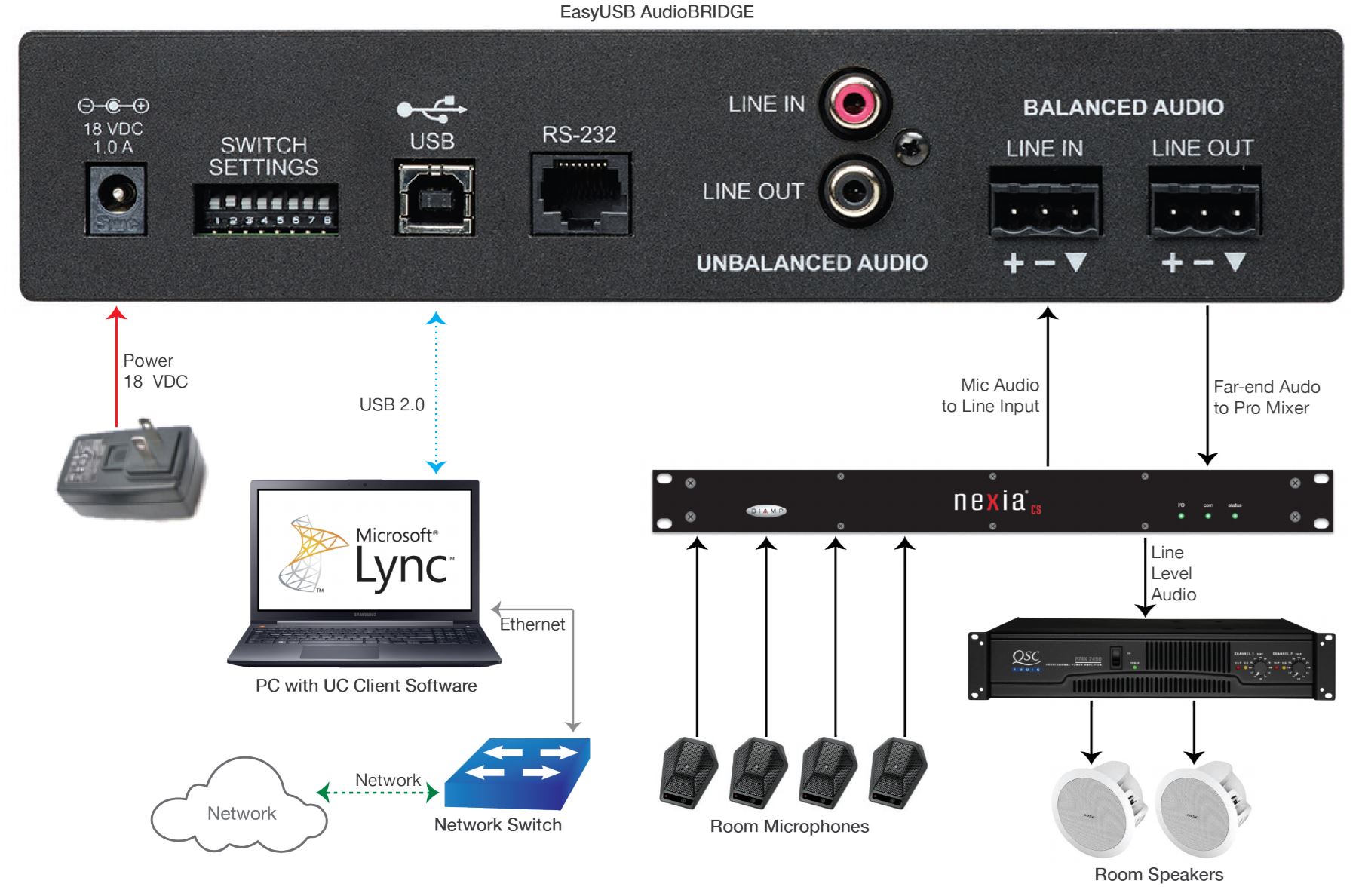

Equipped with both balanced and unbalanced audio inputs/outputs for maximum flexibility, the AudioBRIDGE easily integrates with external audio mixers, wireless microphones, amplifiers, powered loudspeakers – any audio I/O devices that require USB integration.
Professional audio equipment connects to the AV Bridge with balanced line level inputs/outputs on a 3-pin Euro Terminal block. Unbalanced audio inputs/outputs are supported with RCA connectors.
This Package Includes:
- EasyUSB AudioBRIDGE Interface
- Quick-Start Guide
- 18V, 1.0A Power Supply
- 2x 3-position phoenix-style connectors
- 4x rubber feet for bottom of EasyUSB MicPOD I/O unit if not rack-mounted
- 1.83m USB 2.0 cable, type A to B
- EZ Camera RS-232 Control Adapter
- Video inputs
- 3
- Video outputs
- 3
- Distortion THD
- 0,02 %
- Frekvensområde min
- 20 Hz
- Lydinnganger
- Euroblock line x1 Mono Balanced
- Lydinnganger
- RCA x1 Mono Unbalanced
- Lydinnganger
- USB-B 2.0
- Frekvensområde maks
- 20 000 Hz
- Lydutganger
- Euroblock line x1 Mono Balanced
- Lydutganger
- RCA x1 Mono Unbalanced
- Lydutganger
- USB-B 2.0
- Styring
- DIP-Switch for audio processing
- Styring
- RS-232
- Styring
- USB-B USB HID Controls for Volume
Audio specification
- DSP
- Nei
Connections
- Ethernet (RJ-45)
- Nei
- Wi-Fi
- Nei
- Dante
- Nei
Energy
- Power Supply
- 12V DC, 1A External Power Supply
- Forbruk maks
- 18 W
Størrelse & Vekt
- Bredde
- 212,9 mm
- Dypde
- 152,4 mm
- Høyde
- 43,7 mm
- Nettovekt
- 0,64 kg
Additional information
- Applikasjon
- 19" Rack, 1U With optional rack adapter
- Included Accessories
- See product text above
- Warranty
- 3 år
Pakkeinformasjon
- Pakkestørrelse
- 457 x 279 x 127 mm
- Pakkevekt
- 1,56 kg
