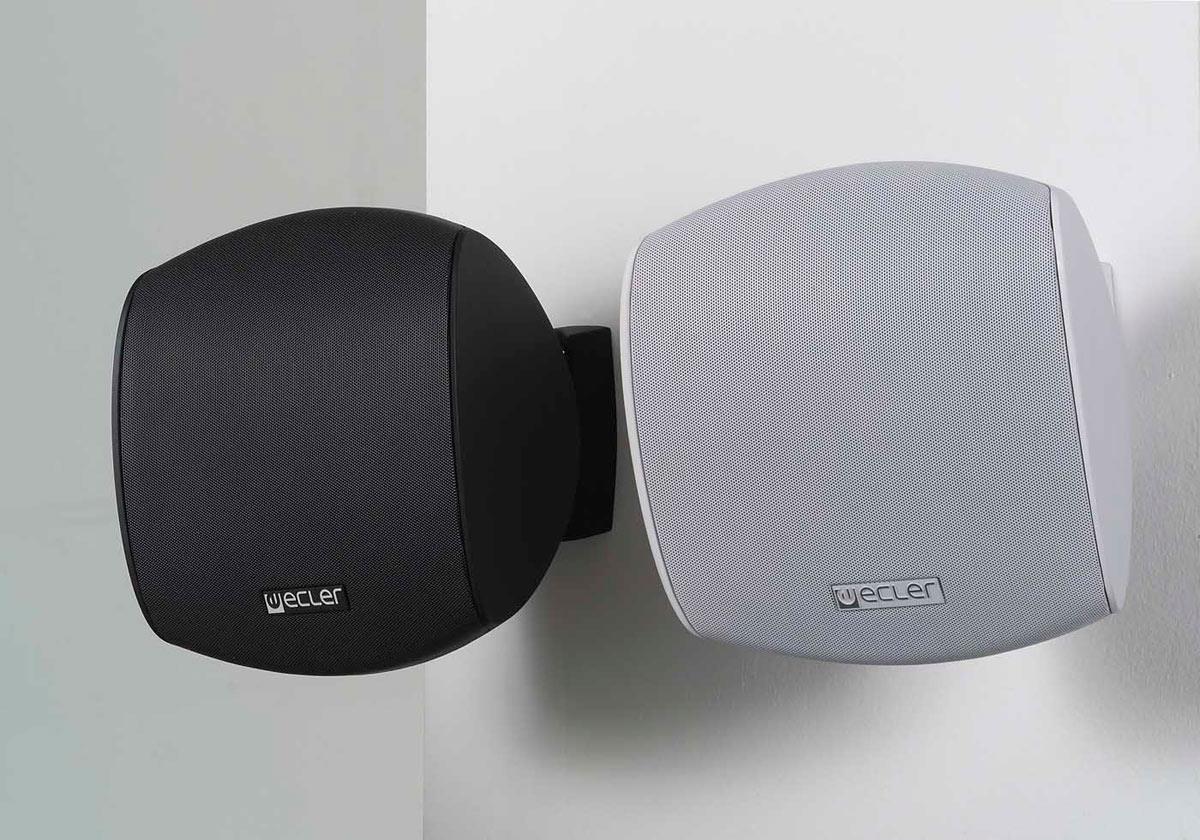

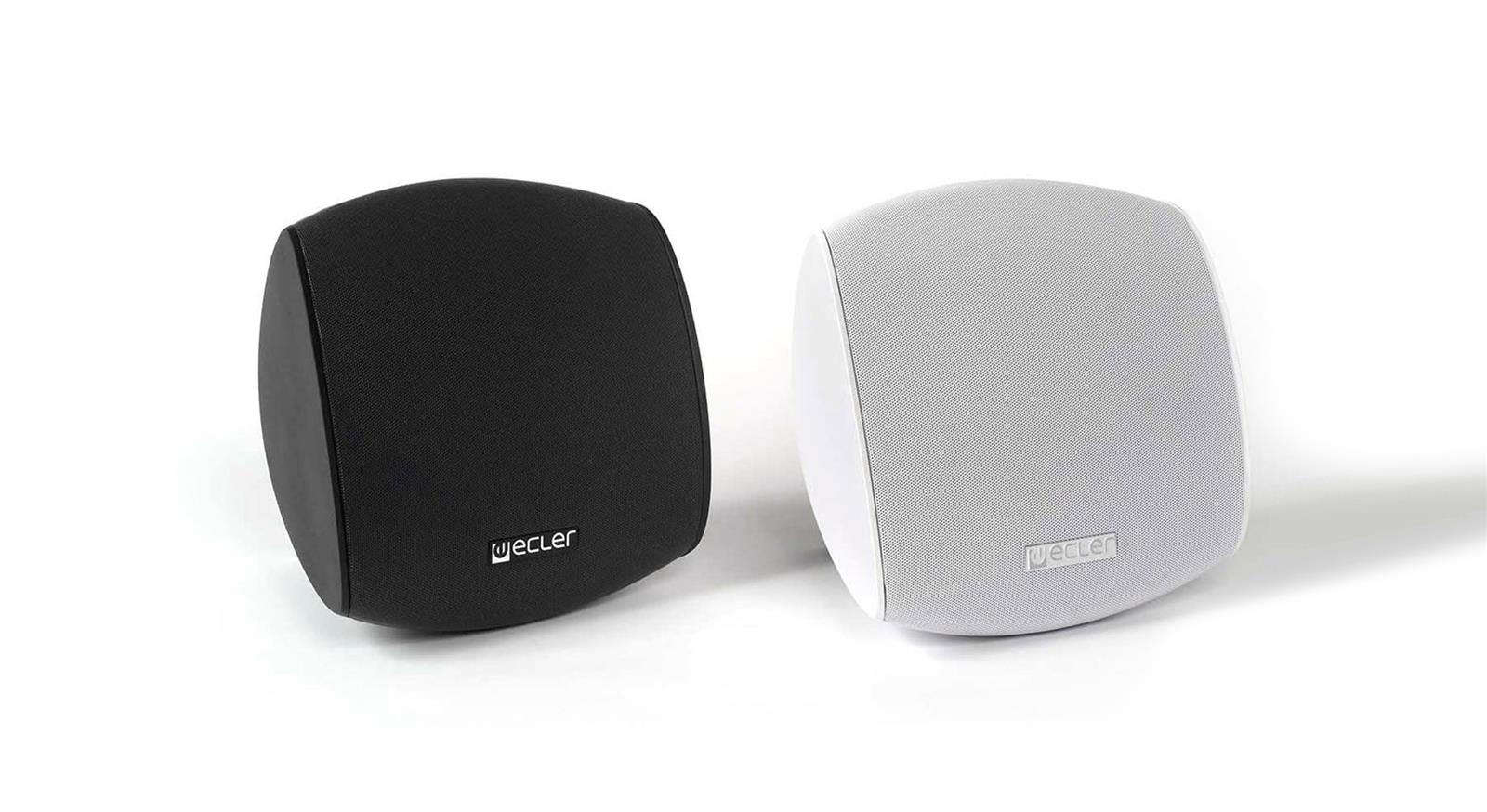

AUDEO106 is a 2-way, 50 WRMS loudspeaker cabinet. It features a 6.5” woofer and 1" tweeter. AUDEO series has a balanced, innovative design, resulting from the collaboration between ECLER and the prestigious group Giugiaro Design. It satisfies today's demands with respect to aesthetics, design and integration into all types of architectural environments which, together with its excellent sound quality, make this series the ideal solution for use in numerous sound projects.
Features:
- Full range, 2-way loudspeaker, 50 WRMS
- 6,5 in woofer / 1 in tweeter
- Made of reinforced ABS
- Available in black (RAL 9005) or white (RAL 9003)
- 8 ohm and 70/100 V line operating switch
- Accessories for wall-mounting included
- IP54 class outdoor rating
- Protective front grill with anti-rust treatment
- EASE Win file available
Applications:
- Retail
- Corporate
- Leisure
- Sports & Wellness
- Hospitality
Allmänt
- Applikation
- Vägg
- Aktiv/Passiv
- Passiv
- Färg
- Vit
Högtalarelement
- LF
- 6,5 "
- HF
- 1 "
Ljudspecifikation
- Impedans
- 8 Ohm
- Frekvensomfång Min
- 106 Hz (-10dB)
- Frekvensomfång Max
- 20 000 Hz (-10dB)
- Verkningsgrad (1W/1m)
- 90 dB (1W/1m)
- Effekttålighet
- 50 W RMS / 200 W Peak
- Förstärkareffekt
- 100 W Recommended amplifier power
- 70/100V
- Ja Transformer Taps 100V: 30W / 15W /7,5W / 5W, 70V: 15W /7,5W / 5W / 2,5
- Max SPL
- 107 dB continuous / 113 dB peak
Anslutningar
- Ljudanslutning in
- Euroblock högt. kabel
- Bluetooth
- Nej
- Ethernet (RJ-45)
- Nej
- Wi-Fi
- Nej
Mått och vikt
- Bredd
- 241 mm
- Djup
- 163 mm
- Höjd
- 244 mm
- Nettovikt
- 2,3 kg
Övrigt
- Utomhusbruk
- Ja IP54 rated. Min: -10°C / Max: 40°C
- Medföljande Tillbehör
- Wall-mounting accessories
- Garanti
- 5 år
- Antal i leverans
- Parvis
Förpackningsinfo
- Förpackningsstorlek
- 210 x 560 x 280 mm
- Förpackningsvikt
- 2,88 kg
