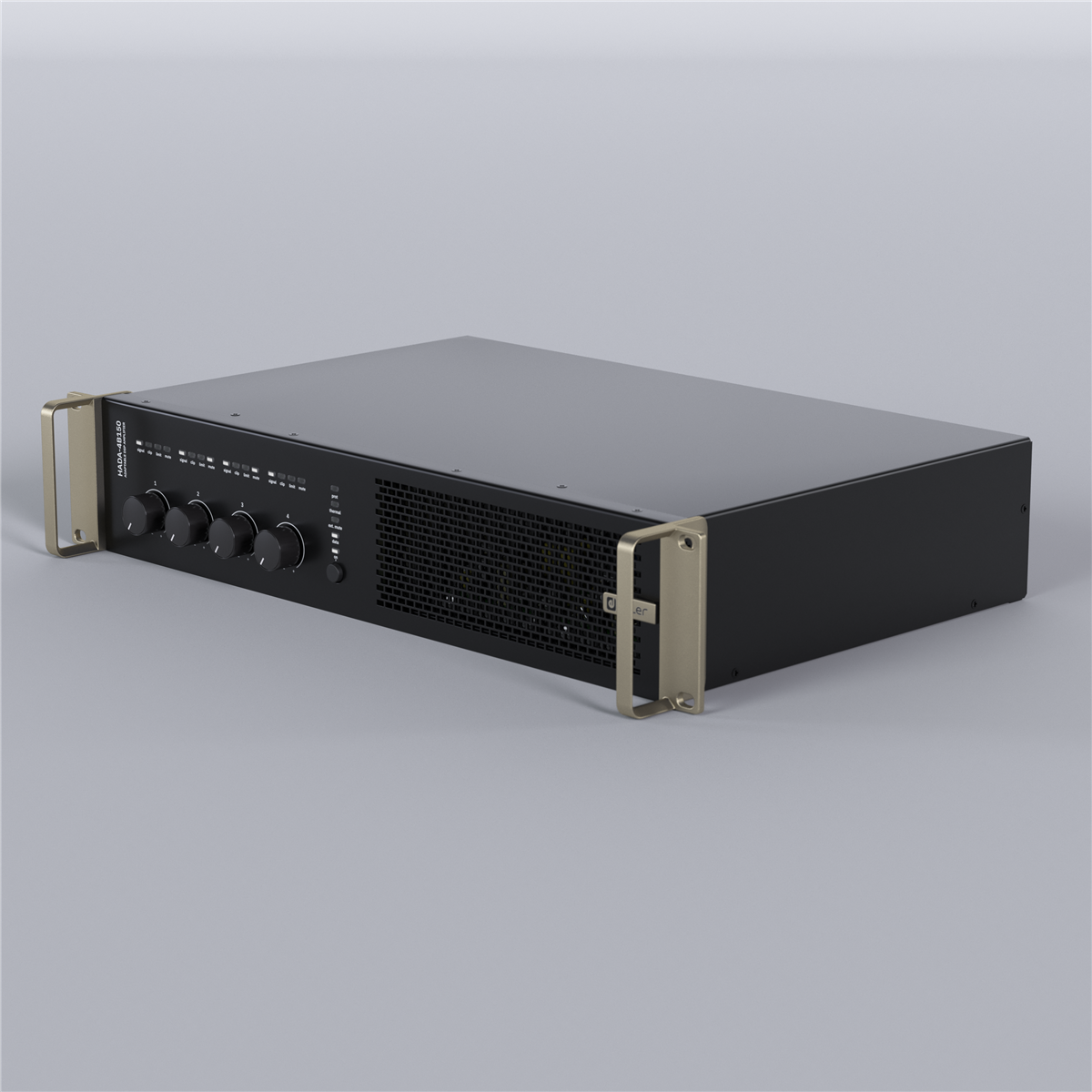

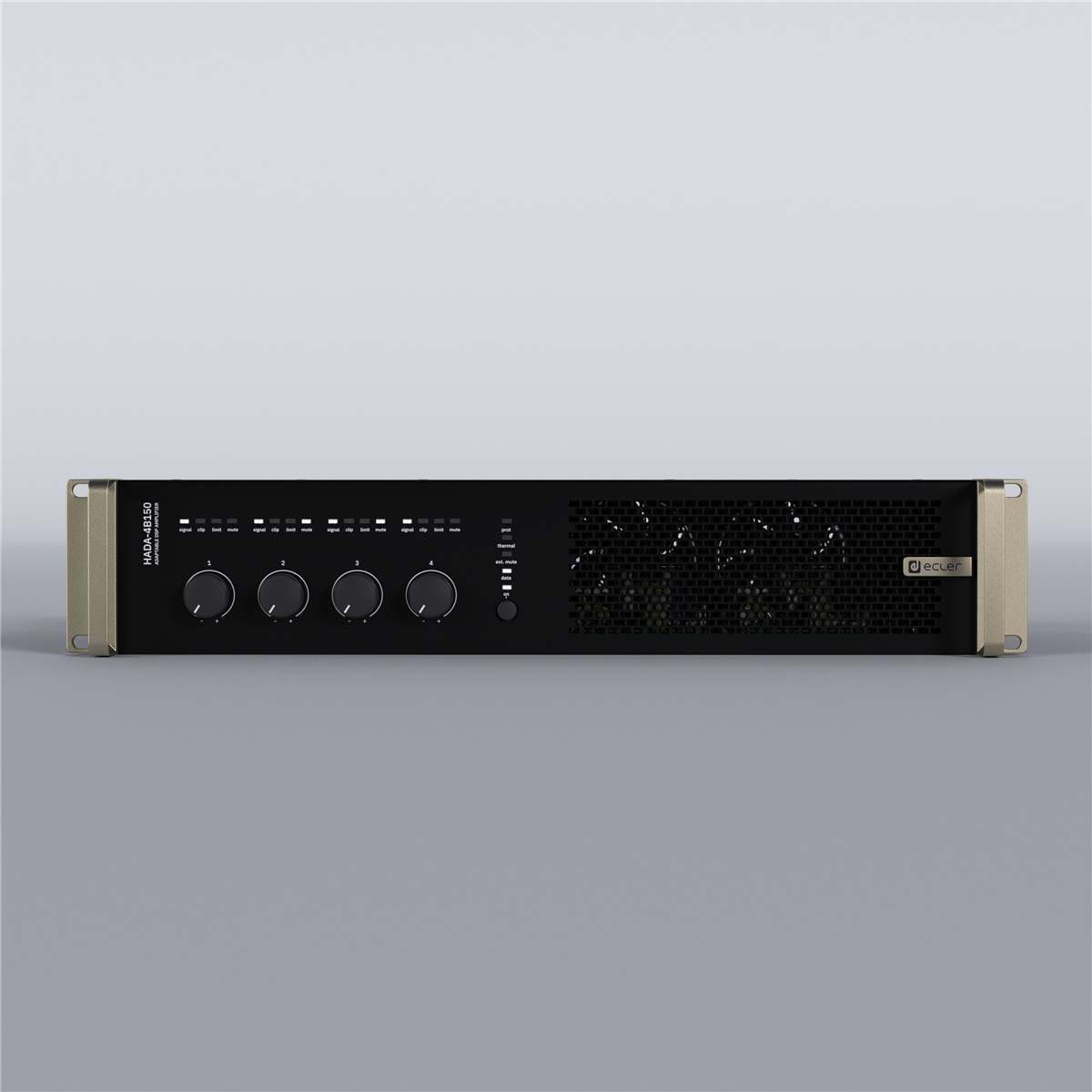

HADA-4B150 is a 4x125W digital amplifier that supports low and high impedance loads. The internal DSP, through the DSP Manager software, allows tailoring the input and output signal through parametric EQs, multi-band compressors, limiters, and delays and each configuration can be saved as a preset. In addition to the software option, input levels can be controlled via the front panel potentiometers, via remote controls using the rear panel GPI, or via a TCP/IP from third party control systems. All HADA series amplifiers include efficient thermal protection, DC protection, over current protection, and HF protection for total reliability in any kind of installation.
- 4 x 125W outputs @ 4ohms.
- 2 x 250W @ HiZ (100/70V) in bridge mode.
- 4 analogue inputs on Euroblock connectors.
- 4 GPI for remote volume control.
- 1 External Mute.
- Internal matrix mixer and signal processing.
- HADA DSP Manager software for device configuration and control.
- Third party control via TCP/IP
Applications
Education Corporate Leisure Sports & Wellness Hospitality
DSP
- Latency: 500uS (Analogue IN to analogue OUT)
- Digital processing: 64 bit
- Inputs processing: Delay, Parametric EQ, Limiter, Multiband compressor (Settings via HADA DSP Manager)
- Outputs processing: Delay, Parametric EQ, Limiter, Multiband compressor (Settings via HADA DSP Manager)
- Others: Preset management, 4x4 Matrix Mixer (Settings via HADA DSP Manager)
Allmänt
- Modellserie
- HADA
- Förstärkartyp
- Installation
Ljudspecifikation
- Förstärkarkanaler
- 4
- 70/100V
- Ja
- Effekt/kanal (4 Ohm)
- 125 W 4/8 Ω @ 1%THD, 2x 250W 8Ω bridged mode @ 1%THD
- Effekt/kanal (70/100V)
- 250 W 2x 250W 70V/100V bridged mode @ 1%THD
- Distortion THD
- 0,01 % (@ 1kHz, from 0,1W to Full Power)
- Frekvensomfång Min
- 20 Hz (-3dB, 1W any load)
- Frekvensomfång Max
- 20 000 Hz (-3dB, 1W any load)
- Inbyggd DSP
- Ja
Anslutningar
- Ljudanslutning in
- Euroblock lågnivå x4 analogue, balanced input channels
- Ljudanslutning ut
- Euroblock högt. kabel
- Bluetooth
- Nej
- Ethernet (RJ-45)
- Ja
- Wi-Fi
- Nej
- Styrning
- Contact closure External MUTE, Dry contact (2 pins Euroblock connector, rear panel. Euroblock pitch 3,5 mm)
- Styrning
- Ethernet/IP (RJ-45)
- Styrning
- GPI/O x4 GPIs (0-3.3V) (5-pin Euroblock connector, rear panel)
- Styrning
- PC mjukvara HADA DSP Manager Application
- Styrning
- Web interface
Energi
- Strömförsörjning
- 100-240 V AC; 50/60 Hz (±10%); internal Pos. IEC C14 inlet
- Förstärkarklass
- Class-D
- Typ av kylning
- Luft aktiv (fläkt) (Forced air, front to back airflow. Temperature controlled continuously variable speed). 46 dB (Maximum acoustical noise @1m)
- Förbrukning standby
- 8,5 W
- Auto Standby funktion
- Ja
Mått och vikt
- Bredd
- 482,6 mm
- Djup
- 281,5 mm
- Höjd
- 88 mm
- Nettovikt
- 4,7 kg
Övrigt
- Montering
- 19" Rack, 2U, Fristående/Hylla
- Medföljande Tillbehör
- EU Main cord, Euroblock Connectors (inputs /outputs), Desktop feet, rack 19" installation hardware
- Garanti
- 5 år
Förpackningsinfo
- Förpackningsstorlek
- 550 x 500 x 120 mm
- Förpackningsvikt
- 7,30 kg
