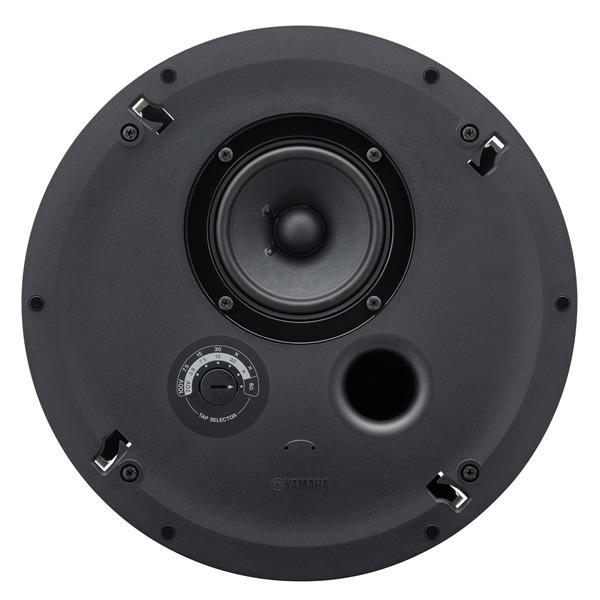

Low-profile ceiling speakers designed for superior music reproduction
Music can play an integral role in defining the aesthetic and atmosphere of a commercial space, greatly enhancing the overall experience for customers and clientele. By combining Yamaha’s unrivaled acumen for developing state of the art musical instruments and professional audio technologies, with a flexible approach towards design and application, VXC-F ceiling speakers allow you to streamline the installation process and seamlessly integrate high-quality audio into a restaurant, retail, or professional environment. Featuring a newly designed speaker unit, optimally tuned for music playback, the VXC-F’s shallow, lightweight construction and flexible design can easily adapt to the strictest installation limitations, ensuring superb audio performance wherever they’re placed.
Key Features:
- 4.5” full-range speaker unit
- Engineered for optimum BGM reproduction
- Low-profile design facilitates installation in limited ceiling spaces
- Direct support for low-impedance or high-impedance connections
- Built-in carrying band increases safety during installation
- Anti-drop tab mechanism provide secure temporary positioning during installation
- Double-threaded speaker clamp screws for speedy tightening
- Paintable grilles with magnetic catches
- Black and white versions available
- 3.1kg, Ø324 x D143 mm
Hi-Z or Lo-Z - Both high-impedance and low-impedance connections are supported, and speaker wattage can be easily switched even after installation.
Low Profile - Reduced physical depth allows installation in ceilings where space is limited.
Lightweight - Reduced weight increases installation flexibility while lessening the burden on installation personnel.
Portable - A built-in "carrying band" not only makes the speaker easy to carry around, but also increases safety when working on a stepladder.
Secure - An anti-drop tab mechanism securely holds the speaker in place so that the installation can proceed safely and efficiently. There’s also a release lever that allows the speaker to be smoothly removed from the ceiling as required.
Fast - Double threaded screws used for the speaker clamp mechanism allow the clamps to be tightened twice as fast as conventional screws.

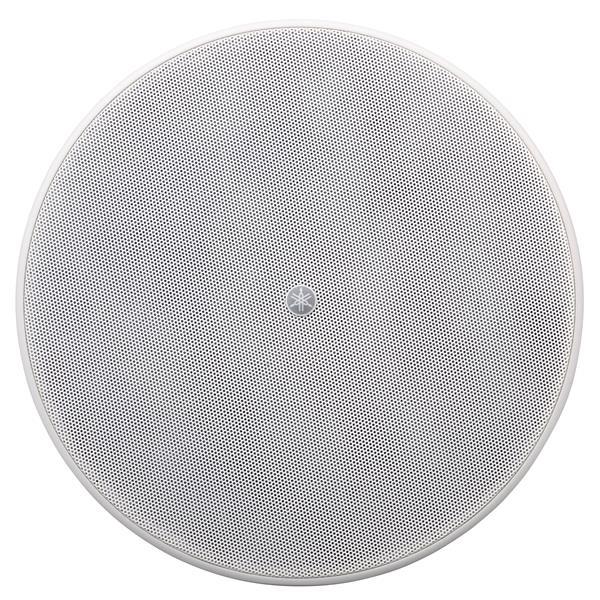

Streamlined - The supplied speaker grilles are firmly and elegantly held in place by powerful magnets. An anti-drop wire is also included.
Paintable - The supplied grilles can be painted any color to match interior decor.
EN54-24 Certified Versions with Uncompromised Performance
Yamaha also offers "VA versions" that meet European EN54-24 voice alarm system requirements. These models have been carefully tuned to retain the natural musical instrument and voice reproduction quality that is a feature in all VXC-F speakers, delivering refined BGM during normal operation while providing exceptional clarity for emergency broadcasts. The ability to support both music playback and emergency broadcasts with a single speaker type contributes to reduced system complexity and cost.
Allmänt
- Applikation
- Tak
- Aktiv/Passiv
- Passiv
- Färg
- Vit
Högtalarelement
- LF
- 4,5 " Full-range unit
Ljudspecifikation
- Impedans
- 8 Ohm
- Frekvensomfång min
- 60 Hz -10dB
- Frekvensomfång max
- 20 000 Hz -10dB
- Verkningsgrad (1W/1m)
- 89 dB 1W, 1m
- Effekttålighet
- 80 W Program, 160W Peak
- 100V High-Z
- Ja 70V: 30W, 15W, 7.5W, 3.8W, 100V: 30W, 15W, 7.5W
- Max SPL
- 111 dB Calculated, 1m
Anslutningar
- Ljudanslutning in
- Euroblock högt. kabel x1 (4-pin in/loop-throuh)
- Bluetooth
- Nej
- Ethernet (RJ-45)
- Nej
- Wi-Fi
- Nej
Mått och vikt
- Bredd
- 324 mm 285mm Cutout size
- Djup
- 143 mm
- Nettovikt
- 3,1 kg
Övrigt
- Utomhusbruk
- Nej
- Medföljande Tillbehör
- O-ring, Tile Rail, Cutout Template, Euro Block (4pin), Terminal Cover
- Antal i leverans
- Parvis
Förpackningsinfo
- Förpackningsstorlek
- 790 x 390 x 300 mm
- Förpackningsvikt
- 300 g
