Naturally Extended Lows Bring the Music to Life - VXS series “S” model subwoofers are ideal matches for VXS and VXC series speakers, smoothly extending the low frequency range with superb sonic quality for bigger, more true-to-life musical reproduction. Although no larger than a compact surface-mount speaker the VXS3S delivers solid, natural-sounding low-end reinforcement, while the VXS10S and VXS10ST make even more low-frequency power available for situations that require maximum bass authority.

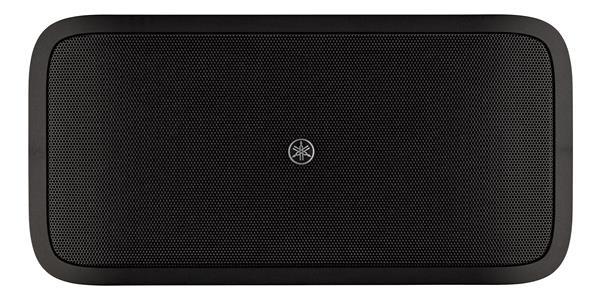

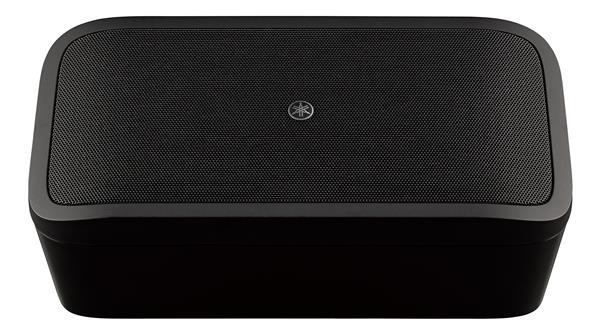

VXS3SB / VXS3SW - 3.5" Dual SR-Bass™ subwoofer for high and low impedance systems. White or black finish.
Key Features:
- Versatile subwoofer compatible with low and high impedance systems
- Sound and size ideally matched to the VXS1ML
- SR-Bass™ technology delivers solid bass in a compact unit
- Satellite connectors for easy setup
- Dedicated wall/ceiling mount hardware supplied
- Black and white models available
- Paintable enclosures and grilles
- Recommended satellite speakers: VXS1ML
A Choice of Models for All Low-frequency Needs - Luxurious bass response can enhance musical presence and realism in a big way. Yamaha offers the VXS3S for smoothly extended low-end power, and the VXS10S and VXS10ST for applications that require maximum bass impact. Choose the model that best suits the size of the system and the full-range speakers used.
Low-frequency Enhancement Methods - A number of methods are used to enhance low frequency response in speaker enclosures.
Original Yamaha SR-Bass™ technology employed in the VXS3S suspends a four-sided diaphragm on only one of its sides, using the resonance of the diaphragm to enhance the system’s low-frequency output. There are no limitations on the shape and materials used for the diaphragm, making SR-Bass™ technology applicable to a wide range of speaker designs, including compact models.

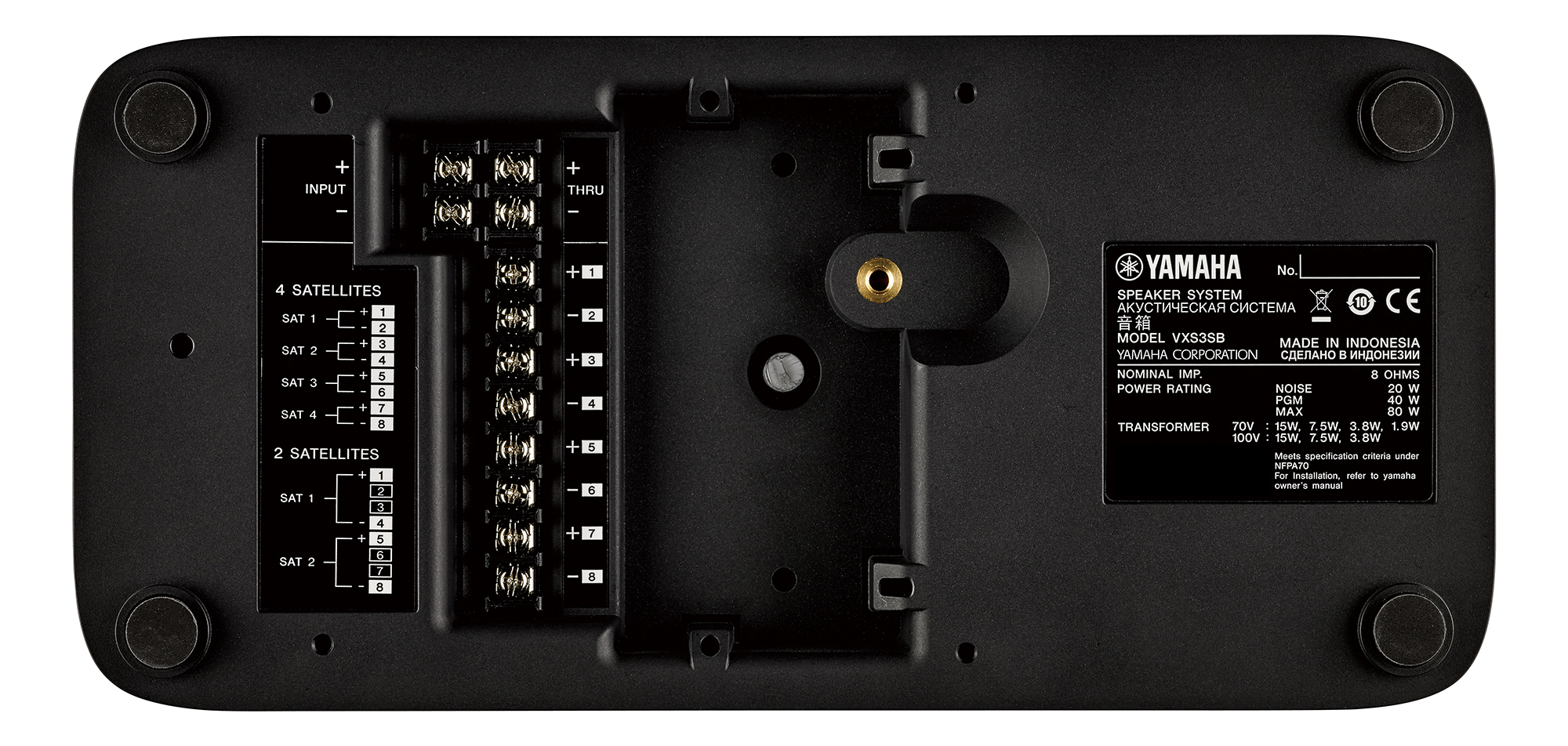

Satellite Connectors Optimize Balance - The VXS3S and VXS10S have satellite connectors on the rear panel, minimizing the number of amplifier channels required to get a system up and running. And since the VXS3S and VXS10S support high-impedance connections, it is possible to connect low-impedance satellites while the subwoofer is connected to a high-impedance system, for example. A built-in high-pass filter is automatically applied to the satellite speakers, providing exceptionally smooth, natural frequency crossover from subwoofer to satellites.
Flexible Installation Options - In addition to the supplied wall-mounting hardware, a variety of optional hardware allows VXS series “S” models to be mounted in a number of ways. The VXS10S can be placed on the floor or mounted on a wall or ceiling, while the VXS3S additionally allows flush ceiling mounting.
Allmänt
- Produktserie
- VXS
- Applikation
- Subwoofer
- Aktiv/Passiv
- Passiv
- Färg
- Svart
Högtalarelement
- LF
- 3,5 "
Ljudspecifikation
- Impedans
- 8 Ohm
- Frekvensomfång min
- 65 Hz -10dB
- Frekvensomfång max
- 180 Hz -10dB
- Verkningsgrad (1W/1m)
- 79 dB 1W, 1m
- Effekttålighet
- 40 W Program, 80W Peak
- Max SPL
- 98 dB Peak, Calculated
Anslutningar
- Ljudanslutning in
- Skruvterminal singel x2 Pair (+/-) Input/Loopthrough
- Ljudanslutning ut
- Skruvterminal högt. kabel x4 Pair (+/-) Sattelite output
- Bluetooth
- Nej
- Ethernet (RJ-45)
- Nej
Mått och vikt
- Bredd
- 322 mm
- Djup
- 118 mm
- Höjd
- 162 mm
- Nettovikt
- 2,7 kg
Övrigt
- Medföljande Tillbehör
- Mounting bracket, Safety wire, Spacer, Screw, Masking sheet
- Garanti
- 5 år
Förpackningsinfo
- Förpackningsstorlek
- 440 x 220 x 170 mm
- Förpackningsvikt
- 3,84 kg
