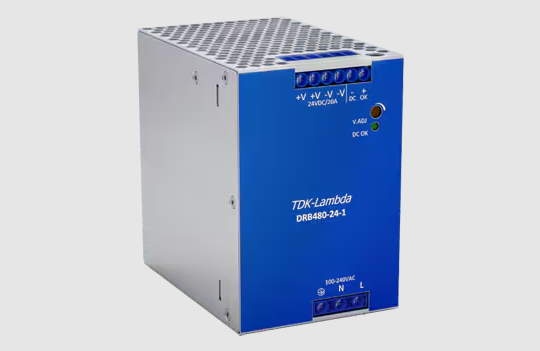

The DRB series supports the growing trend for simple and economically priced DIN power supplies for industrial and process control applications. The series
combines low cost, reliability and compact dimensions with energy saving efficiencies of up to 93%. Conservatively rated electrolytic capacitor temperatures offer improved field life-times of up to 10 years. Available in three power levels, 120W, 240W and 480W, the series provides a choice of 12V, 24V and 48V outputs. An opto-isolated DC OK signal is fitted for remote monitoring.
Input: Single-phase
Input Voltage Range[AC]: 90 to 264Vac
Efficiency: 92% Typical.
Rated Output Voltage[DC]: 48Vdc
Output Voltage Range[DC] : 48 to 52.8Vdc
Maximum Output Current: 10A
Maximum Output Power: 480W
Operating Temp. Range: -20 to 70°C
Allmänt
- Färg
- Silver
Elektriska specifikationer
- AC inspänning (V)
- 90-264V
- Utgångsspänning (V)
- 48 V to 52.8V
- Max strömstyrka (A)
- 10 A
- Uteffekt (w)
- 480 W
Mått och vikt
- Bredd
- 84 mm
- Djup
- 125 mm
- Höjd
- 124 mm
- Nettovikt
- 1 000 g
Övrigt
- Garanti
- 3 år
Förpackningsinfo
- Förpackningsstorlek
- 125 x 84 x 124 mm
- Förpackningsvikt
- 1,15 kg
