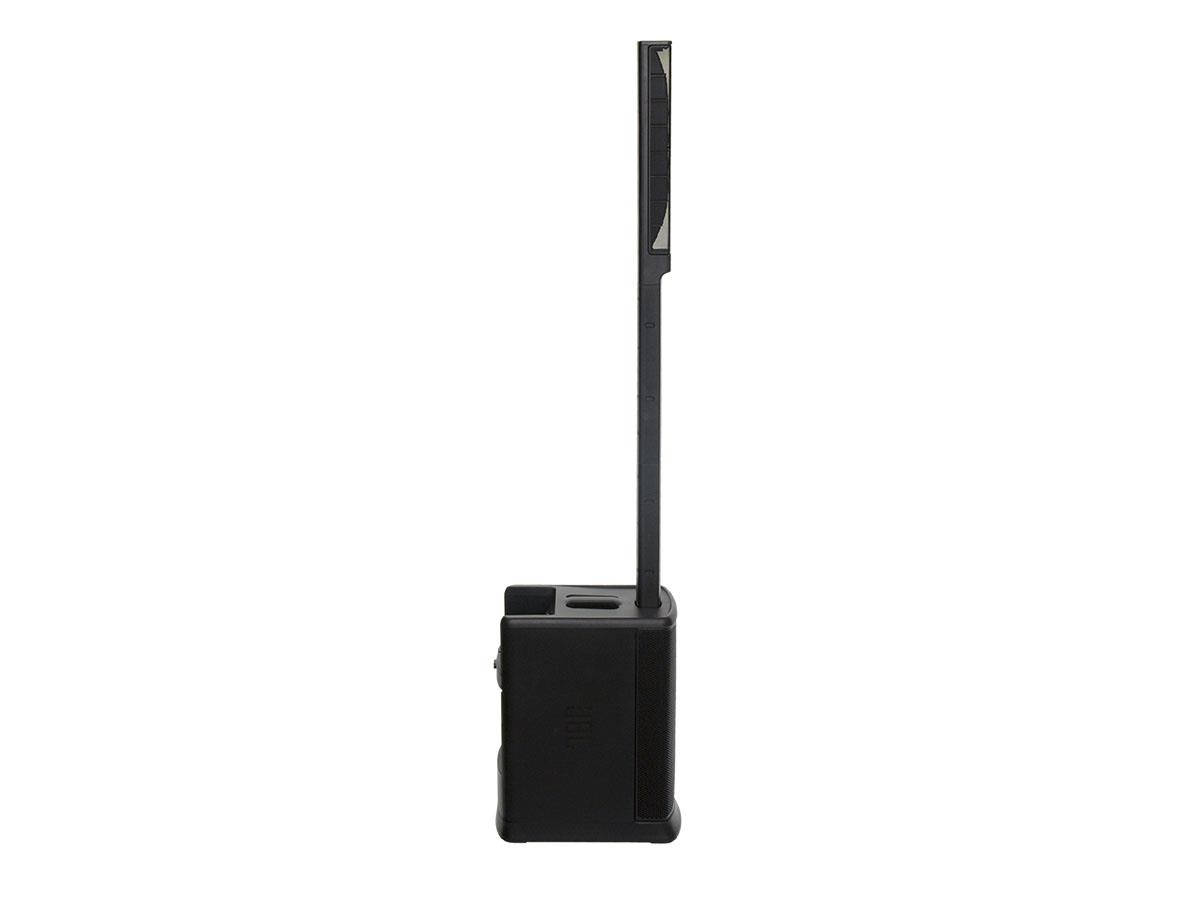

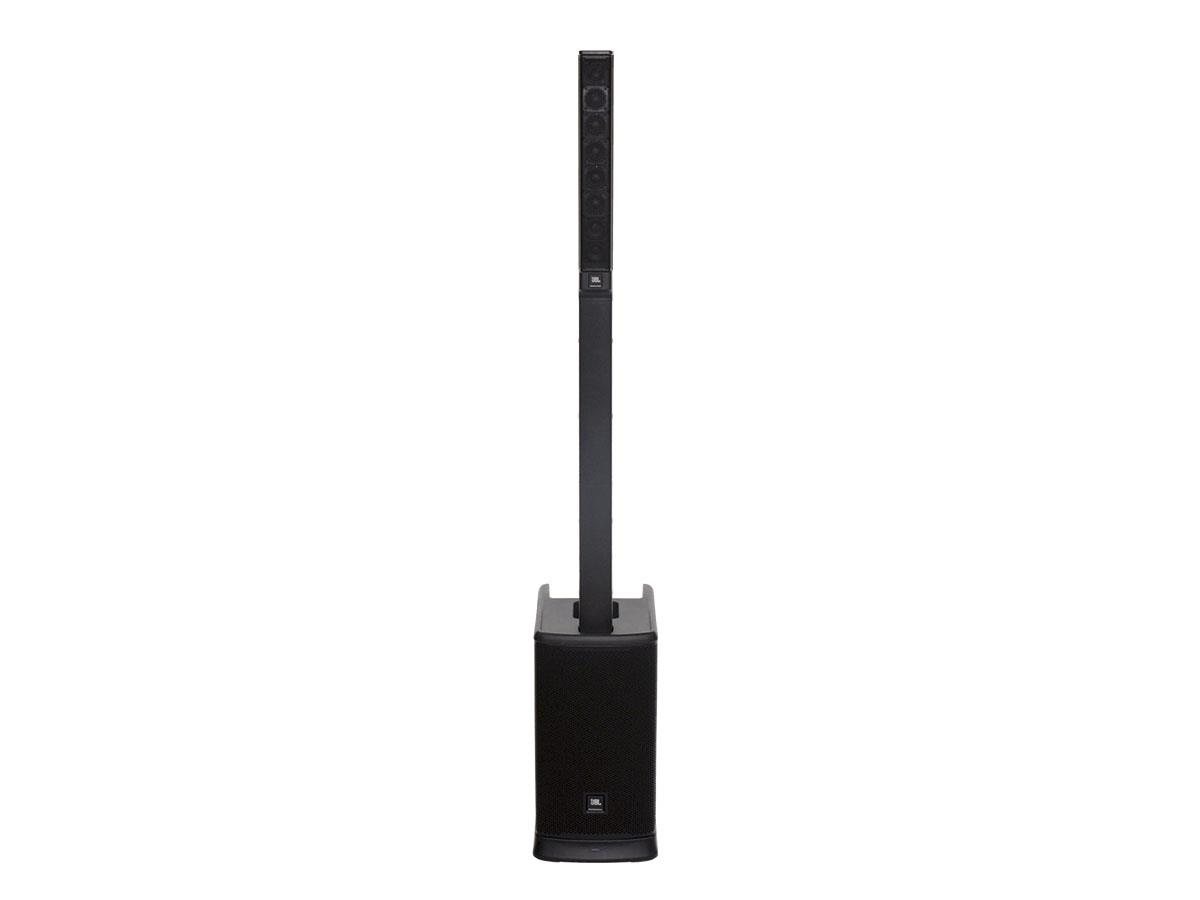

The JBL EON ONE MK2 battery-powered column PA packs a class-leading acoustic package, 5-channel digital mixer, dbx and Lexicon DSP, Bluetooth functions and universal app control into a lightweight, portable package that can be carried in one hand
The EON ONE MK2 delivers the fidelity JBL is legendary for, combining a geometrically optimized, C-shaped 8-tweeter array with a 10” woofer to deliver class-leading clarity and coverage down to 37 Hz, with wide dispersion and a maximum output of 123 dB. Bluetooth audio streaming and six-hour battery operation round out the advantages of this all-purpose, all-in-one system.
The EON ONE MK2 is engineered for versatility and ease of use: Dial up your signature sound in an instant, thanks to a full suite of pro-grade Lexicon and dbx effects and presets, with controls that scale from beginner to advanced. Variable Power Performance automatically optimizes power performance for AC or battery operation.
Features
- C-shaped array of 8 2” tweeters delivers superior clarity and 140°H x 30°V dispersion for room-filling sound
- 10” woofer in acoustically optimized cabinet generates natural, smooth low end, down to 37 Hz
- Variable Power Performance automatically optimizes power performance to provide 4 dB higher output when connected to an AC source: 123 dB peak SPL using AC power, 119 dB peak using battery power
- Built-in 1,500-watt (peak) amplifier
- Frequency response: 37 Hz–20 kHz @ -10 dB; 45 Hz–20 kHz @ -3 dB
- Easily swappable battery provides 6 hours of play time; battery is integrated into a column spacer to improve stability and to optimize the cabinet acoustic volume for superior low-frequency response
- Built-in 5-channel digital mixer is designed by mix engineers for optimized workflow
- Three fixed EQ knobs allow fast, hands-on access to onboard EQ
- Comprehensive suite of professional-grade Lexicon DSP, including reverb, chorus and delay
- dbx DriveRack Inside technology offers AFS (Automatic Feedback Suppression), 8 bands of parametric EQ, and convenient presets
- Soundcraft Easy Ducking automatically turns down music when speech is detected
- Triple-Tier DSP lets users choose beginner, intermediate or advanced control
- I/Os include 3 Neutrik XLR Combo jacks, 1 Hi-Z input and a summed 3.5mm/BT input
- ¼” balanced passthrough with independent volume control and speaker delay allows for analog system expansion
- Two channels of true 48V phantom power expand microphone connectivity
- Two USB ports allow device charging from onboard battery or AC power
- Bluetooth 5.0 audio streaming to one device, with control of up 10 units
- Full-color EasyNav LCD provides access to all control parameters
- Simple Success LED meters indicate mixer functions such as mute, signal detection and clipping
- JBL Pro Connect universal app offers control over every function of up to ten systems
- PA components are stored in the woofer cabinet for easy, one-hand carry
- Ergonomically optimized carry handle minimizes wrist strain
- Road-tough, lightweight polypropylene cabinet with steel grille
- Accessories include dual battery charger, additional batteries
- Weight: 42.5 pounds (19.3 kg)
- Mixer
- Ja
Allmänt
- Produktserie
- EON ONE
- Applikation
- Pelare
- Aktiv/Passiv
- Aktiv
- DSP
- Ja
- Färg
- Svart
Högtalarelement
- LF
- 10 " x1
- HF
- 2 " x8
Ljudspecifikation
- Frekvensomfång min
- 37 Hz -10 dB
- Frekvensomfång max
- 20 000 Hz -10 dB
- Effekttålighet
- 400 W RMS/ 1500W Peak
- Max SPL
- 123 dB using AC power. 119dB using Battery
- Spridningsvinkel (Hor)
- 140 °
- Spridningsvinkel (Ver)
- 30 °
Anslutningar
- Ljudanslutning in
- 3,5mm tele x1 Bluetooth summed
- Ljudanslutning in
- 6,3mm tele x1 Balanced
- Ljudanslutning in
- XLR/TELE Combo x3
- Bluetooth
- Ja
Energi
- Strömförsörjning
- 100-230 V AC; 50/60 Hz; internal Pos
- Batteridrift
- Ja 97.2 WH, 36V, Lithium Ion
- Batteritid
- 6 tim Play time
Mått och vikt
- Bredd
- 322 mm
- Djup
- 490 mm
- Höjd
- 2 000 mm Fully asembled, (550mm)
- Nettovikt
- 19,3 kg
Övrigt
- Garanti
- 7 år
- Antal i leverans
- Styckvis
Förpackningsinfo
- Förpackningsstorlek
- 630 x 450 x 730 mm
- Förpackningsvikt
- 22,38 kg
