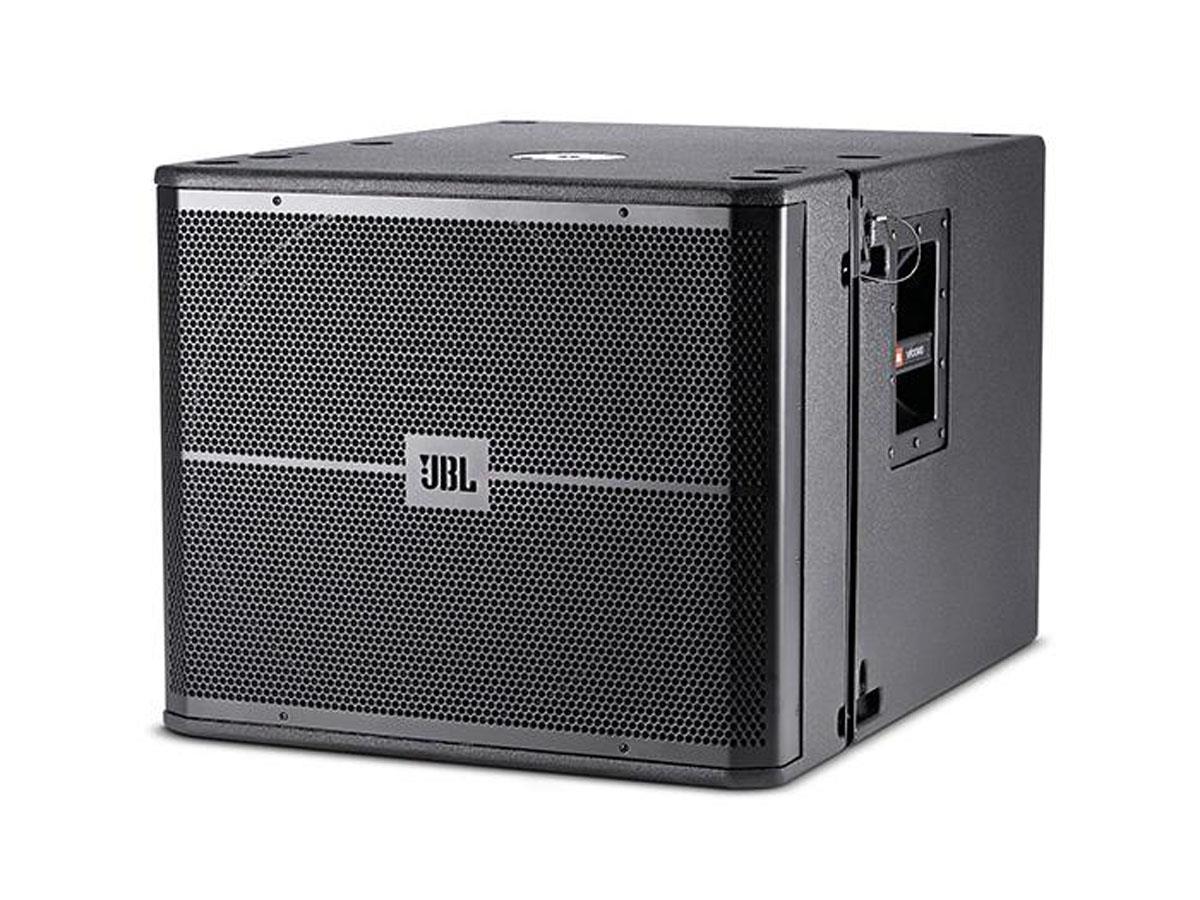

The VRX918SP is a powered, suspendable subwoofer system containing a 2268FF neodymium magnet, patented Differential Drive®, 18" woofer in a front-loaded, vented enclosure. It was designed specifically for use in arrays with the VRX932LAP Line Array speaker and VRX-AF Array Frame. In addition it may also be used in arrays consisting entirely of VRX918SP subwoofers.
Features

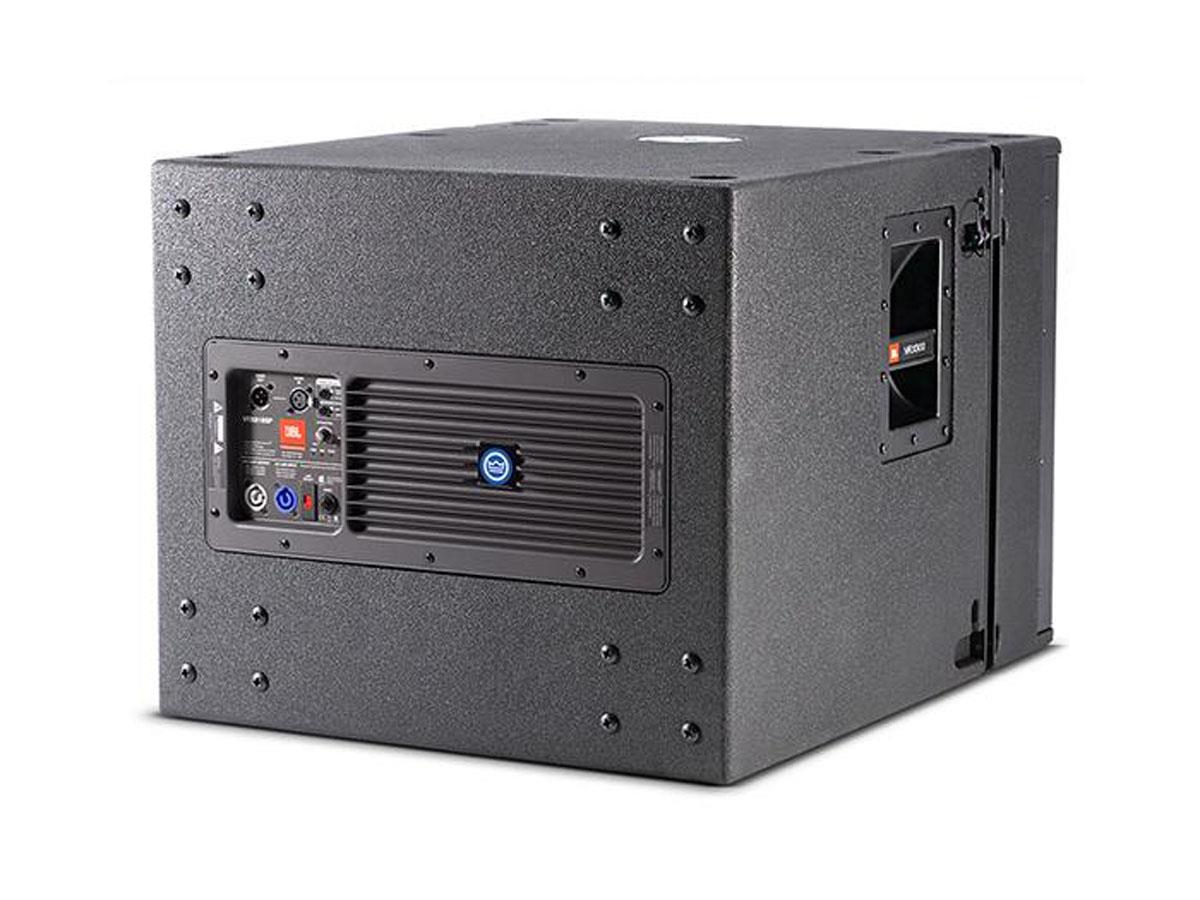

- Built-in JBL Drivepack® DPC-2 amplifier module designed by Crown provides 1500 Watts of peak Power. DSP based resident input module provides system optimization, EQ and crossover functionality.
- 18 inch, 2268FF dual voice coil, neodymium magnet Differential Drive® woofer for high-power capacity and light weight.
- Integral rigging hardware for simple connection of enclosures and optional array frame.
- 20 mm threaded pole socket for solid, secure satellite speaker mounting.
- Large port area for reduced distortion.
Allmänt
- Produktserie
- VRX900
- Applikation
- Subwoofer
- Aktiv/Passiv
- Aktiv
- DSP
- Ja
- Färg
- Svart
Högtalarelement
- LF
- 18 " JBL 2268FF
Ljudspecifikation
- Frekvensomfång min
- 31 Hz
- Frekvensomfång max
- 220 Hz
- Förstärkareffekt
- 750 W Continuous, 1500 Watts Peak
- Max SPL
- 126 dB
Anslutningar
- Ljudanslutning in
- XLR
- Ljudanslutning ut
- XLR loop through
Energi
- Strömförsörjning
- 90-132 VAC or 216-264 VAC, 50/60Hz, User selectable: 120V/240V (-15%, +10%)
Mått och vikt
- Bredd
- 597 mm
- Djup
- 749 mm
- Höjd
- 508 mm
- Nettovikt
- 38,5 kg
Övrigt
- Antal i leverans
- Styckvis
Förpackningsinfo
- Förpackningsstorlek
- 360 x 240 x 240 mm
- Förpackningsvikt
- 41,73 kg
