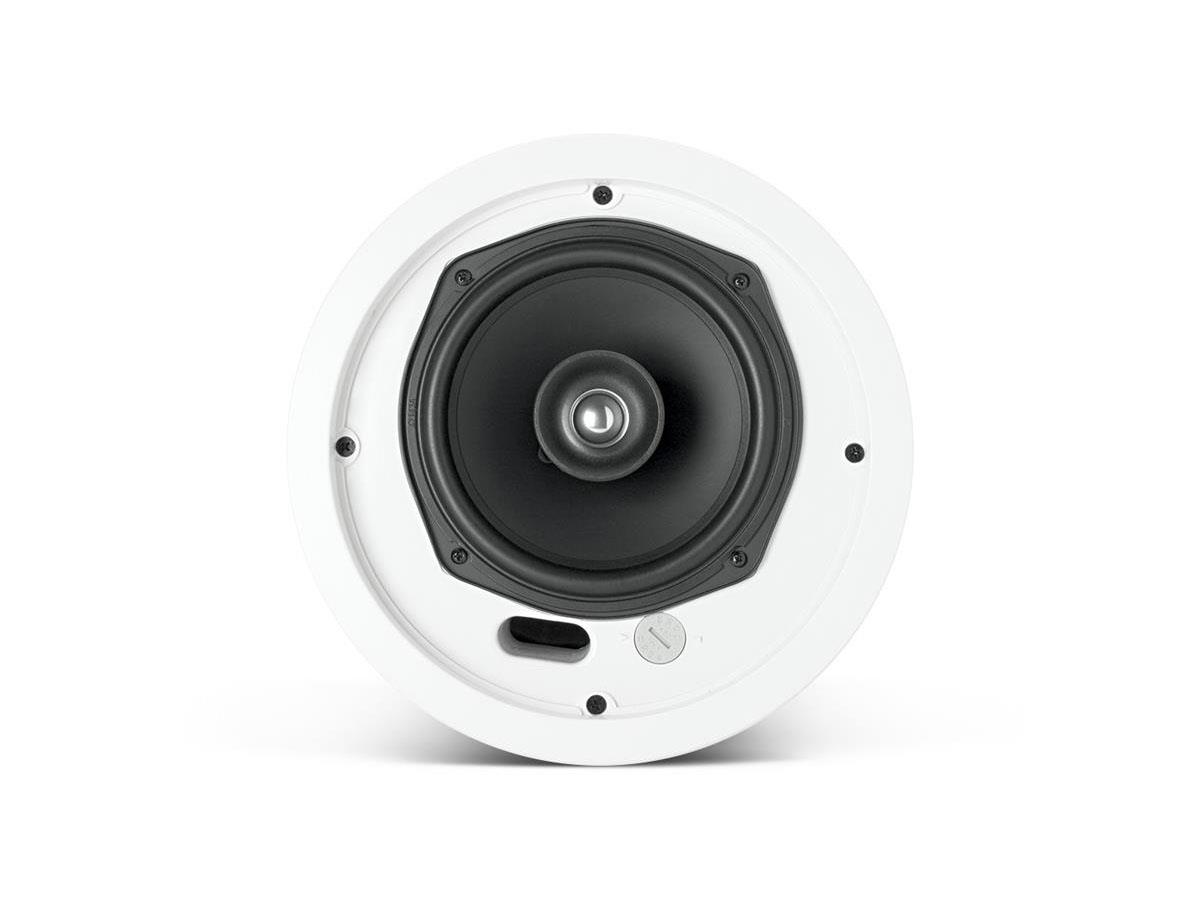

The Control 26C is a powerhouse ceiling speaker containing a coaxially mounted 6.5" woofer and 3/4" titanium-coated tweeter, able to deliver maximum sound level over a wide coverage area. The Control 26C includes a multitap transformer for a 70V or 100V line distribution system. The Control 26C is perfectly suited for a wide variety of applications from casinos and hotels to upscale restaurants and themed locations.

High power handling, wide frequency response and low distortion make the Control 26C ideal for sound systems requiring a higher fidelity sound from ceiling loudspeakers. The premium performance capability ensures excellent sound character, providing pleasant, enveloping sound throughout the listening area. The Control 26C’s 16 ohm impedance allows use of multiple speakers in parallel without having to use a more expensive constant voltage distributed system. The optional Control 26C version includes a multitap transformer for 70V/100V systems.

Features

  • Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated
  • High power, wide frequency response and low distortion for high sound level capability.

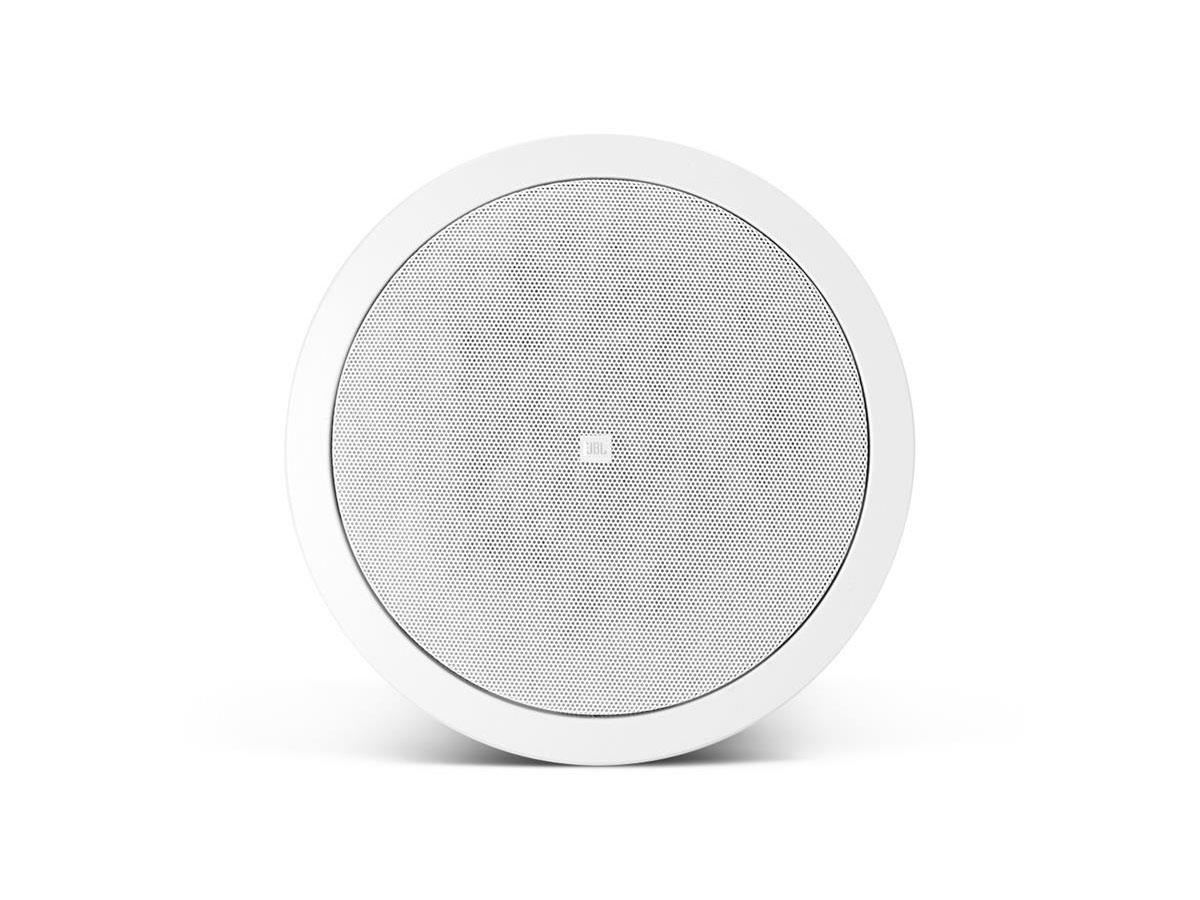

  • Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.


Allmänt

Modellserie
Control 20
Applikation
Tak
Aktiv/Passiv
Passiv

Ljudspecifikation

70/100V
Ja

Förpackningsinfo

Förpackningsstorlek
330 x 300 x 290 mm
Förpackningsvikt
4,20 kg

Förpackningsinfo (2 st)

Förpackningsstorlek
660 x 300 x 290 mm
Förpackningsvikt
8,40 kg
Streckkod
050036903967
