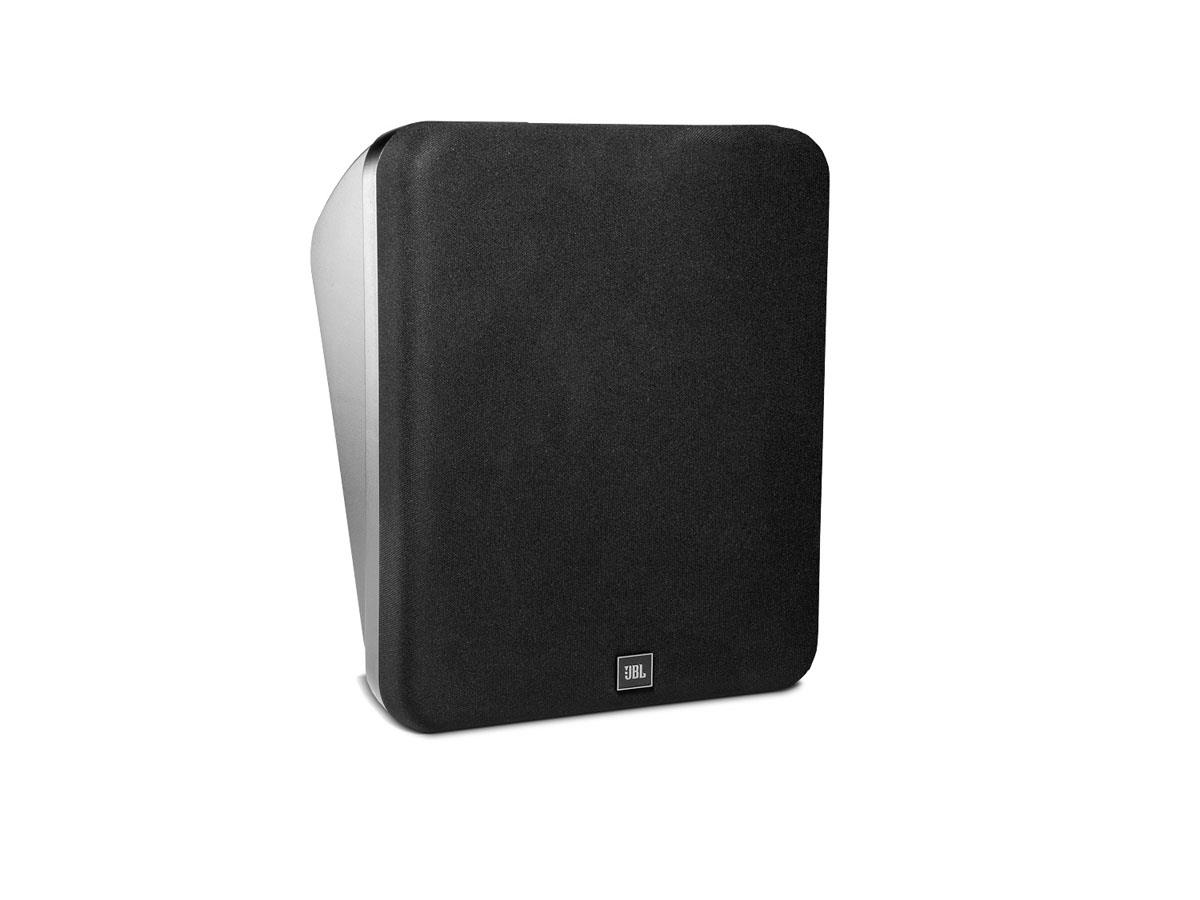

The 8320 features a high power, long-throw 200 mm (8 in) low frequency driver for smooth, extended bass response. The high frequency section combines a 25 mm (1 in) diameter soft dome driver with a constant-coverage horn for very high output capability and wide, even high frequency coverage. The 150-watt continuous power rating (600-watt peak) provides extended dynamic range required for digital soundtracks with absolute reliability.
Features
- 50 Hz to 20 kHz Frequency Range
- High Sensitivity, 91 dB SPL, 1 W, 1 m (3.3 ft)
- High Power Handling Capability: 150 watts continuous pink noise
- Internal Thermomaster® technology allows for unprecedented high frequency power in a compact molded enclosure.
- Convenient mounting design uses JBL QuickMount™, Omnimount® or APC Multimount brackets
- Special cabinet shape incorporates 20° angled front baffle
- SMPTE/ISO2969 Curve X high frequency de-emphasis
- Lightweight, rigid molded enclosure
- Input terminals located on top of cabinet for quick access
- Uniform horizontal and vertical coverage
- THX® Approved
Allmänt
- Produktserie
- Surround
- Applikation
- Surround
- Aktiv/Passiv
- Passiv
- Färg
- Svart
Högtalarelement
- LF
- 8 "
- HF
- 1 "
Ljudspecifikation
- Frekvensomfång min
- 50 Hz
- Frekvensomfång max
- 20 000 Hz
- Effekttålighet
- 150 W continuous pink noise
- Spridningsvinkel (Hor)
- 100 °
- Spridningsvinkel (Vert)
- 90 °
Förpackningsinfo
- Förpackningsstorlek
- 510 x 500 x 420 mm
- Förpackningsvikt
- 6,12 kg
Förpackningsinfo (2 st)
- Förpackningsstorlek
- 1 000 x 500 x 420 mm
- Förpackningsvikt
- 12,30 kg
