Features
- Seamless switching of 2 HDMI, 1 HDMI + USB-B, and 2 USB-C video and data ports both with 60W PD
- Output over HDBaseT 3.0 for uncompressed 18Gbps as well as a mirrored HDMI 2.0 loop out
- 2x USB-A local, 2x USB-A at RX - additional HDMI and USB-B input at RX side
- Support for multiview screen layouts PiP, PaP and quad view
- Dante input and output support with balanced 5-pin phoenix connection

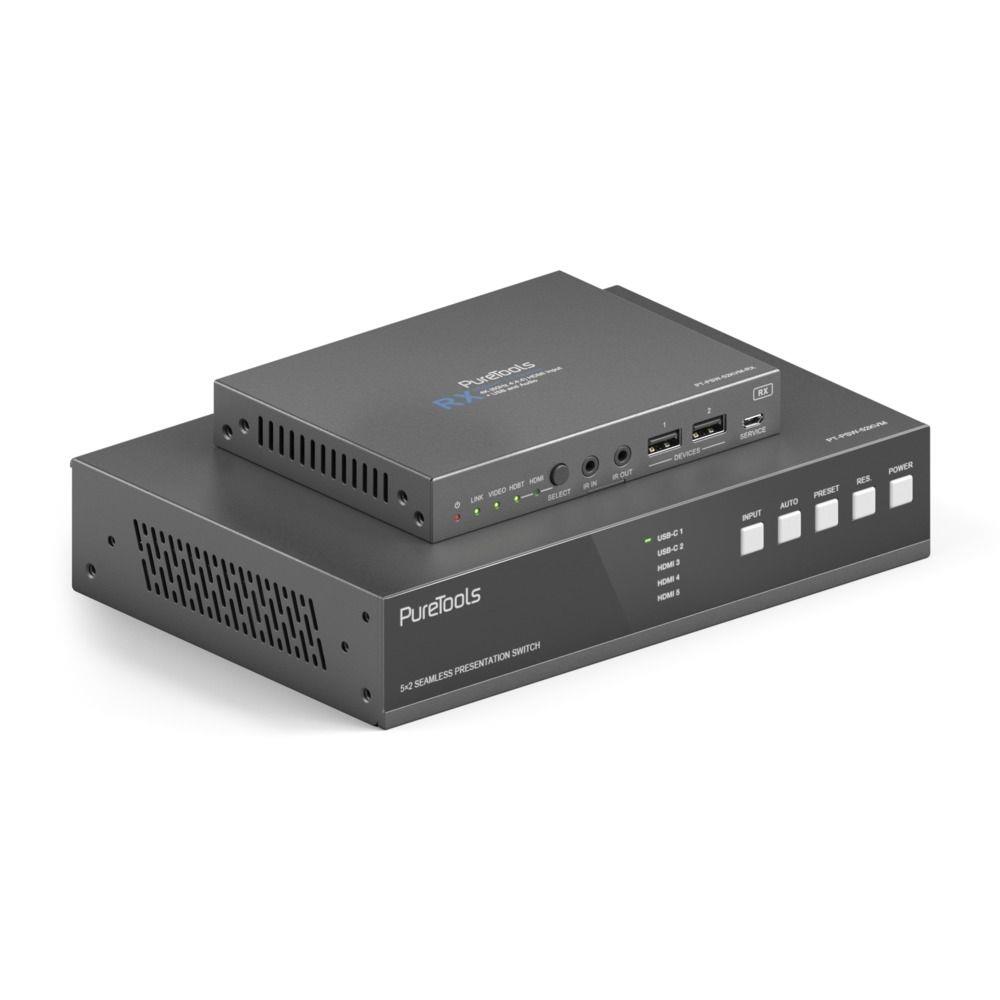

PureTools - 5x2 HDBaseT 3.0 KVM Multiview Switcher Set with Dante: Seamless Switching and Enhanced Connectivity
This advanced switcher allows you to effortlessly switch between 2 HDMI, 1 HDMI + USB-B, and 2 USB-C video and data ports, all with 60W Power Delivery. With a range of impressive presentation, connectivity and audio features, this switcher offers a versatile and efficient solution for your multimedia needs.
- Seamless Switching: Enjoy seamless switching between 2 HDMI, 1 HDMI + USB-B, and 2 USB-C video and data ports. This allows you to easily connect and switch between different devices without any interruptions.
- High-Quality Output: The switcher supports output over HDBaseT 3.0, delivering uncompressed 18Gbps video signals. It also features a mirrored HDMI 2.0 loop out, ensuring high-quality video output.
- Enhanced Connectivity: With 2 USB-A ports at the local side and 2 USB-A ports at the receiver side, the switcher provides additional connectivity options. It also offers an additional HDMI and USB-B input at the receiver side, allowing you to connect multiple devices simultaneously.
- Dual 60W Power Delivery: The 52KVM leads the industry with its massive 120W Power delivery capabilities. The two full feature USB-C ports are able to provide 60W of PD to laptops simultaneously.
- Flexible Multiview Layouts: The switcher supports multiview screen layouts, including Picture-in-Picture (PiP), Picture-and-Picture (PaP), and quad view. This enables you to customize your viewing experience and display multiple sources on a single screen.
- Dante Audio Support: The switcher features Dante input and output support, allowing for seamless integration with Dante-enabled audio systems. It also includes a balanced 5-pin phoenix connection for enhanced audio connectivity.
Bring the power of seamless switching, Dante audio, super powered USB-C and enhanced connectivity to your meeting with the PureTools 5x2 HDBaseT 3.0 KVM Multiview Switcher Set. Upgrade your multimedia setup and enjoy a truly immersive and efficient presenting experience.
- Räckvidd
- 70 m 4K@30 Hz, 40m 4K@60 Hz
- Teknologi
- HDBaseT 3.0
- Extender typ
- Sändare & mottagar kit
Allmänt
- Applikation
- Konferens Hub, Presentations switch
Bildspecifikation
- Upplösning max ut
- 3840x2160 18 Gbps
- Uppdateringsfrekvens
- 60 Hz
- Chroma subsampling (4K)
- 4:4:4

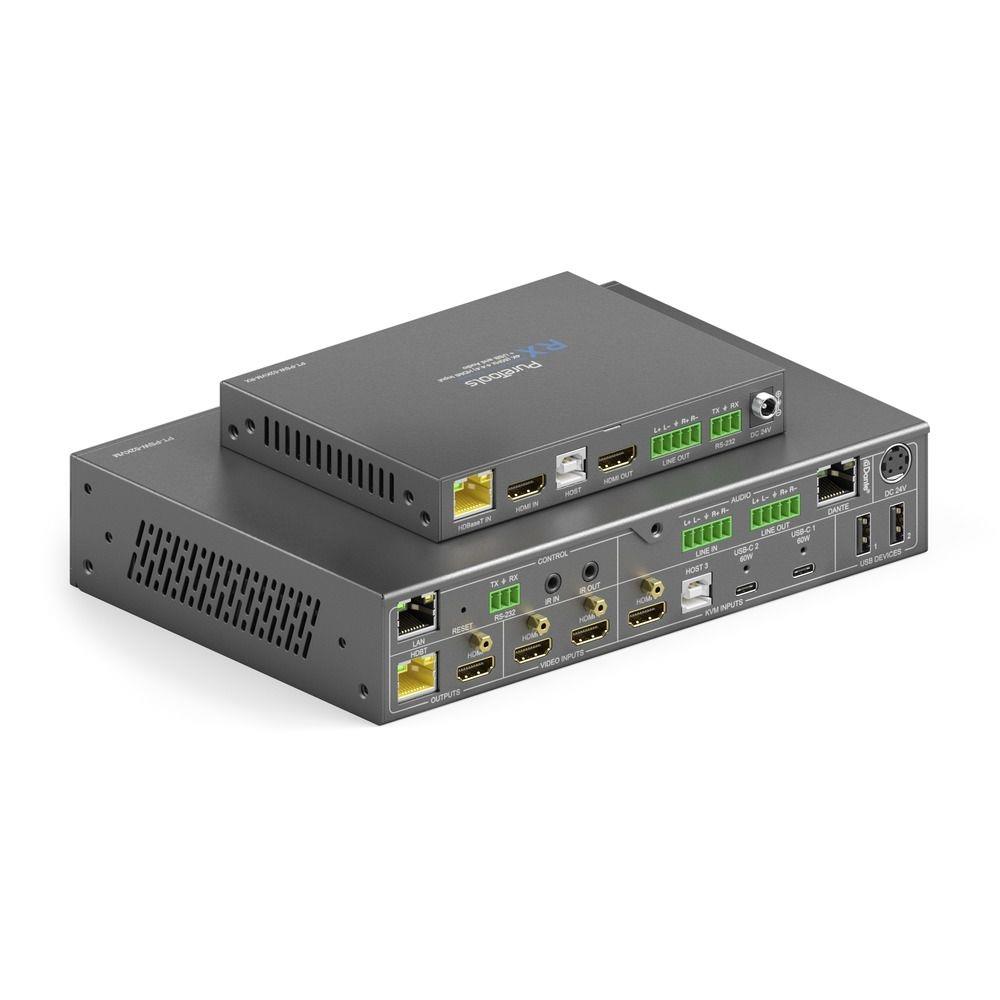

Anslutningar
- Antal bildingångar
- 5
- Antal bildutgångar
- 1 1x HDMI, 1x HDBaseT mirrored outputs
- Bildanslutning in
- HDMI x3 HDMI 2.0b, HDCP 2.2
- Bildanslutning in
- USB-C x2 With DP1.2 Alt mode video, USB 2.0 480Mbps KVM Data, up to 60W PD
- Bildanslutning ut
- HDBaseT (RJ-45) x1 Mirrored output with HDMI
- Bildanslutning ut
- HDMI x1 HDMI 2.0, HDCP 2.2 / 1.4 Mirrored output with HDBT
- Ljudanslutning in
- Dante (RJ-45) x2 in
- Ljudanslutning in
- Euroblock lågnivå x1 Balanced stereo (L/R)
- Ljudanslutning ut
- Dante (RJ-45) x2 out
- Ljudanslutning ut
- Euroblock lågnivå x1 Balanced stereo (L/R)
Funktioner
- Scaler
- Nej
- Video operation modes
- Multiviewer
- USB passthrough
- Ja 2x USB-C & 1x USB-B Host (transmitter), 1x USB-B Host (reciecver), 4x USB device ports for KVM: 2 USB-A 3.2 on the switcher, 2 USB-A on the receiver
- USB standard
- 2.0 TX USB DEVICES to TX HOST/USB-C: 480Mbps; RX USB
- USB strömleverans
- 20V, 3A (60W) For USB-C Host ports (max)
- Styrning
- Auto-växling, CEC
- Styrning
- Ethernet/IP (RJ-45) TCP/IP
- Styrning
- GPI/O
- Styrning
- IR fjärrkontroll included
- Styrning
- IR kabelanslutning in/out
- Styrning
- RS-232
Energi
- Strömförsörjning
- PoE from Transmitter to Reciever, DC 24V / 8A external power supply (included) for Tramsmitter
Mått och vikt
- Bredd
- 220 mm Transmitter
- Djup
- 150 mm Transmitter
- Höjd
- 44 mm Transmitter
- Nettovikt
- 1,21 kg Transmitter
Övrigt
- Montering
- Fristående/Hylla
- Medföljande Tillbehör
- 1 × Transmitter, 1x Reciever, 1× IR Receiver Cable (1.5 m), 2× 3pin-3.5mm Phoenix Connector (male), 3× 5pin-3.5mm Phoenix Connector (male), 4× Mounting Ears, 1× IR Remote, 1× User Manual, 8× Machine Screw, 1× 24V/8A Power Supply, 1× AC Power Cord (1.5m)
- Garanti
- 5 år
Förpackningsinfo
- Förpackningsstorlek
- 383 x 279 x 116 mm
- Förpackningsvikt
- 4,01 kg
- Streckkod
- 4251364741542
