Pro AV Extender Kit

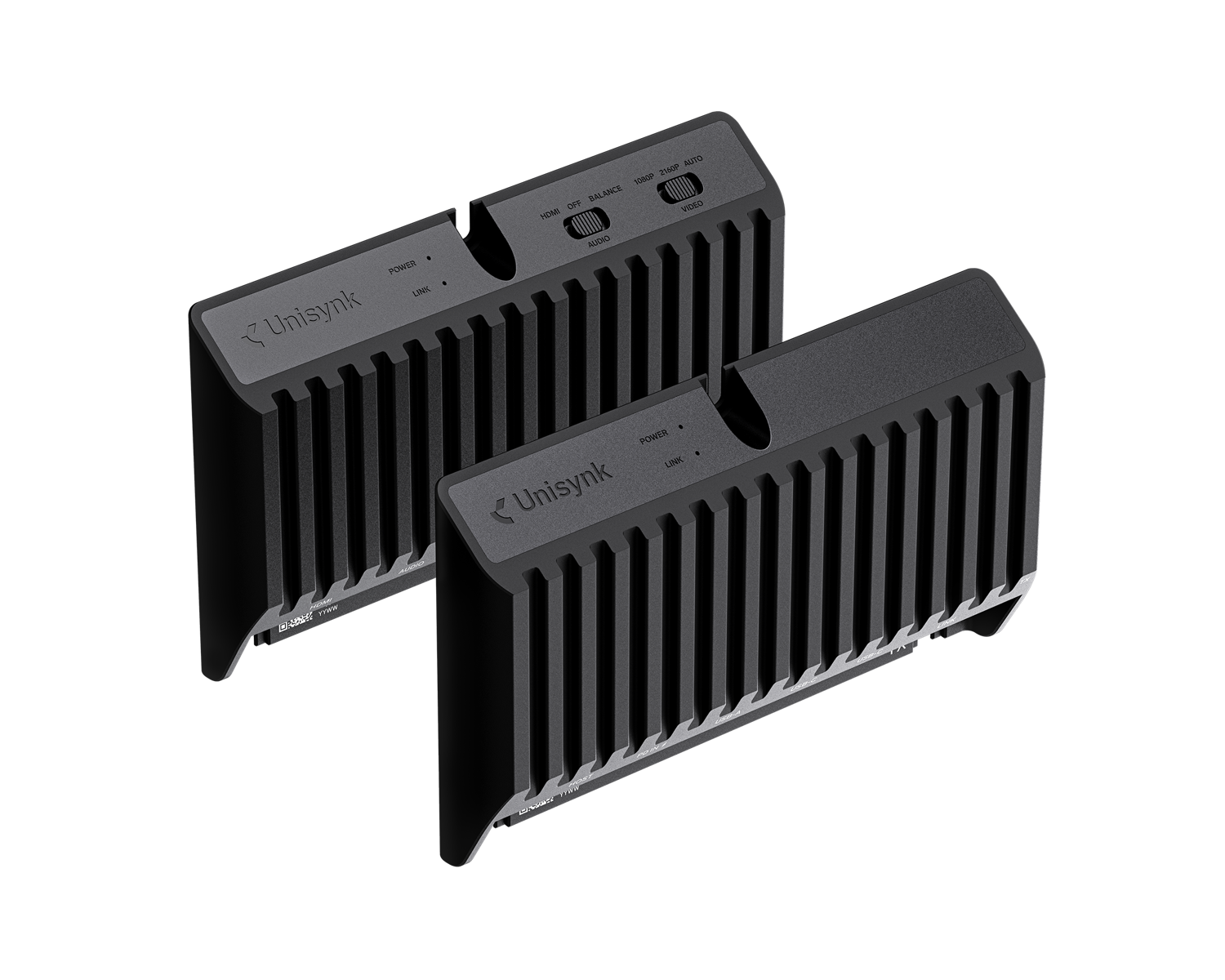

Simplify conference room setups with this Pro AV Extender Kit by bridging the distance between the display and the laptop – without the signal loss or instability that comes with long USB or HDMI cables. This kit delivers reliable data transfer, 4K video, and power over a single Cat6 cable (Cat6A S/FTP recommended) using AVT protocol. Functional features such as resolution EDID and automatic power-cycle reset ensure seamless, hassle-free presentations every time. Transmitter and receiver included in one complete kit.
Ports:

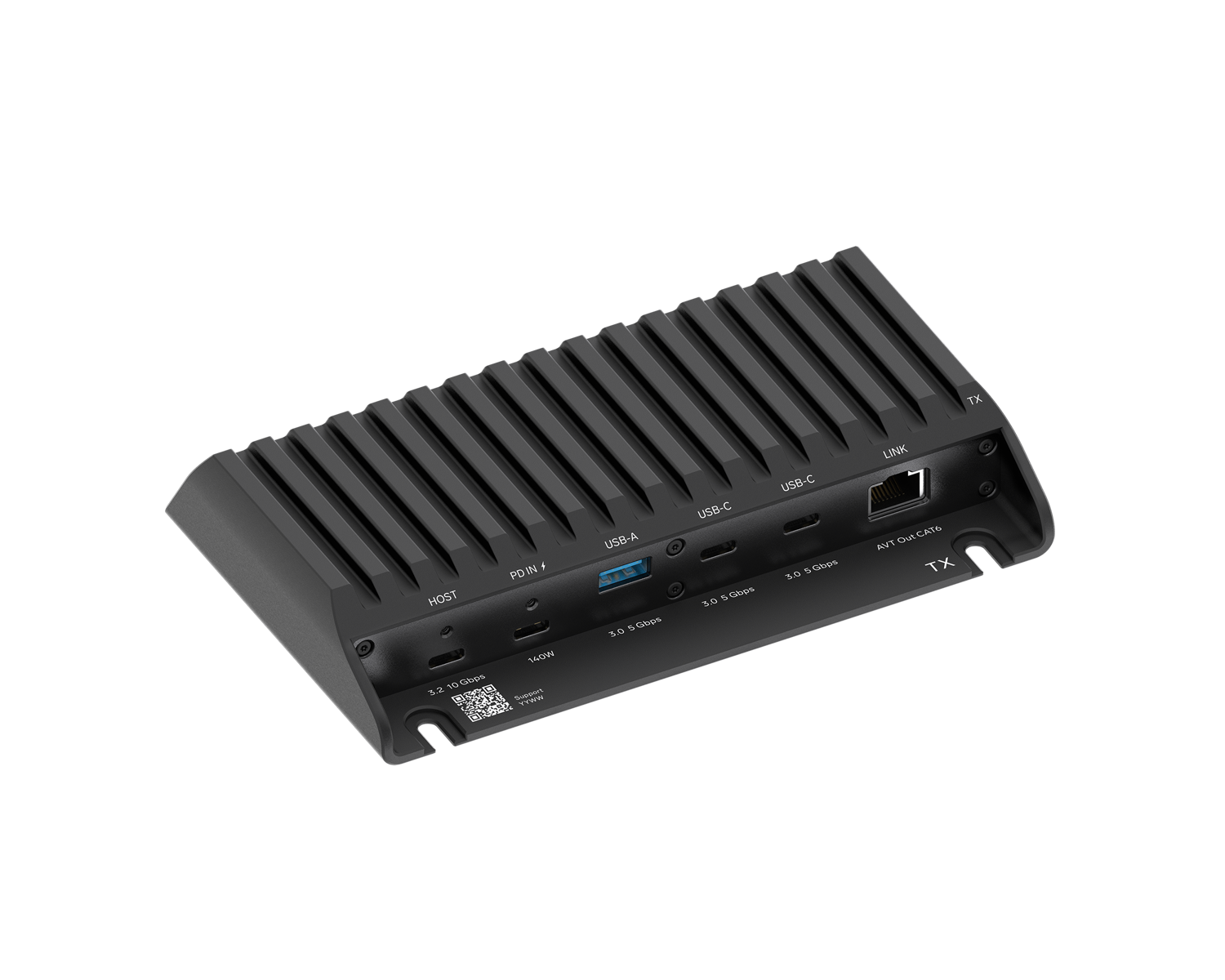

Transmitter, TX Connect laptop
1 x USB-C Host Screw 10 Gbps
1 x USB-C PD Screw 140W
1 x USB-A 5 Gbps
2 x USB-C 5 Gbps
1 x RJ45 AVT Link to RXReceiver, RX Connect external display/projector
1 x HDMI 4K@60Hz
1 x USB-A 480 Mbps
2 x USB-C 480 Mbps
1 x 5-pin Phoenix balanced line
1 x RJ45 AVT Link to TX
Compatibility
Optimized for PC, Mac, and other devices that support USB-C video. Supports PowerDelivery protocol and HDCP 2.3. Make sure the USB-C port on your device supports DisplayPort protocol for video.
For full functionality, use with Cat6A S/FTP cable, USB 3.1 10Gbps cable, and a 100-140W power adapter. The kit requires constant power supply to ensure full functionality.
Allmänt
- Extender typ
- Sändare & mottagar kit
- Teknologi
- AVT
- Räckvidd (Max)
- 30 m Max (Windows OS), 20m (Mac OS)
Bild specifikation
- Max stödd upplösning
- 3840 x 2160 With lockable EDID setting
- Uppdateringsfrekvens
- 60 Hz
Anslutningar
- Bildanslutning in
- USB-C TX, with 140W PD
- Bildanslutning ut
- HDMI
- Ljudanslutning ut
- Euroblock lågnivå 5-pin Balanced Line
- USB passthrough
- Ja Max USB 3.2 10Gbps
- USB standard
- 2.0, 3.0
- USB standard
- 3.2 Gen 1 10Gbps
Energi
- Strömförsörjning
- USB-C PD 140W in on TX
Mått och vikt
- Bredd
- 166 mm TX/RX
- Djup
- 103 mm TX/RX
- Höjd
- 28 mm TX/RX
- Nettovikt
- 415 kg (TX), 419g (RX)
Övrigt
- Montering
- Bord, Vägg
- Garanti
- 2 år Swop warranty
Förpackningsinfo
- Förpackningsstorlek
- 262 x 203 x 40 mm
- Förpackningsvikt
- 977 g
Förpackningsinfo (10 st)
- Förpackningsstorlek
- 380 x 280 x 240 mm
- Förpackningsvikt
- 10,00 kg
