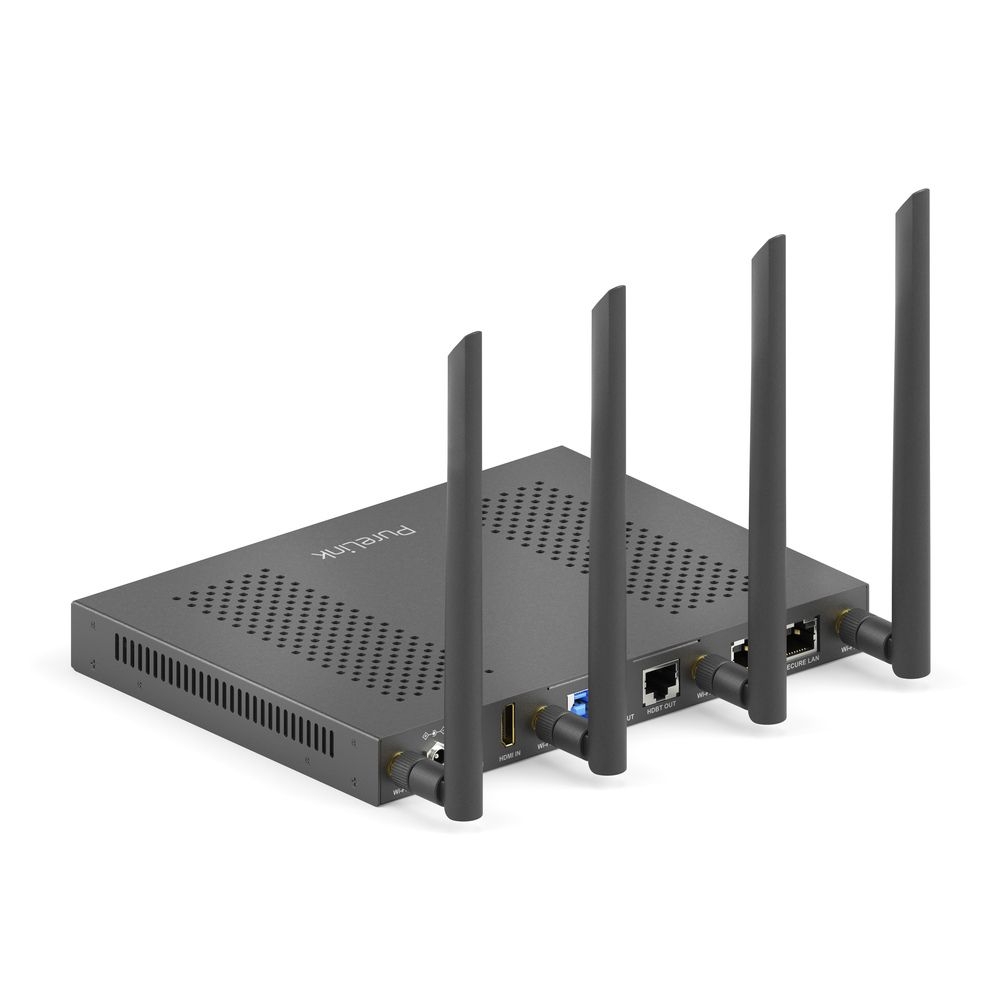

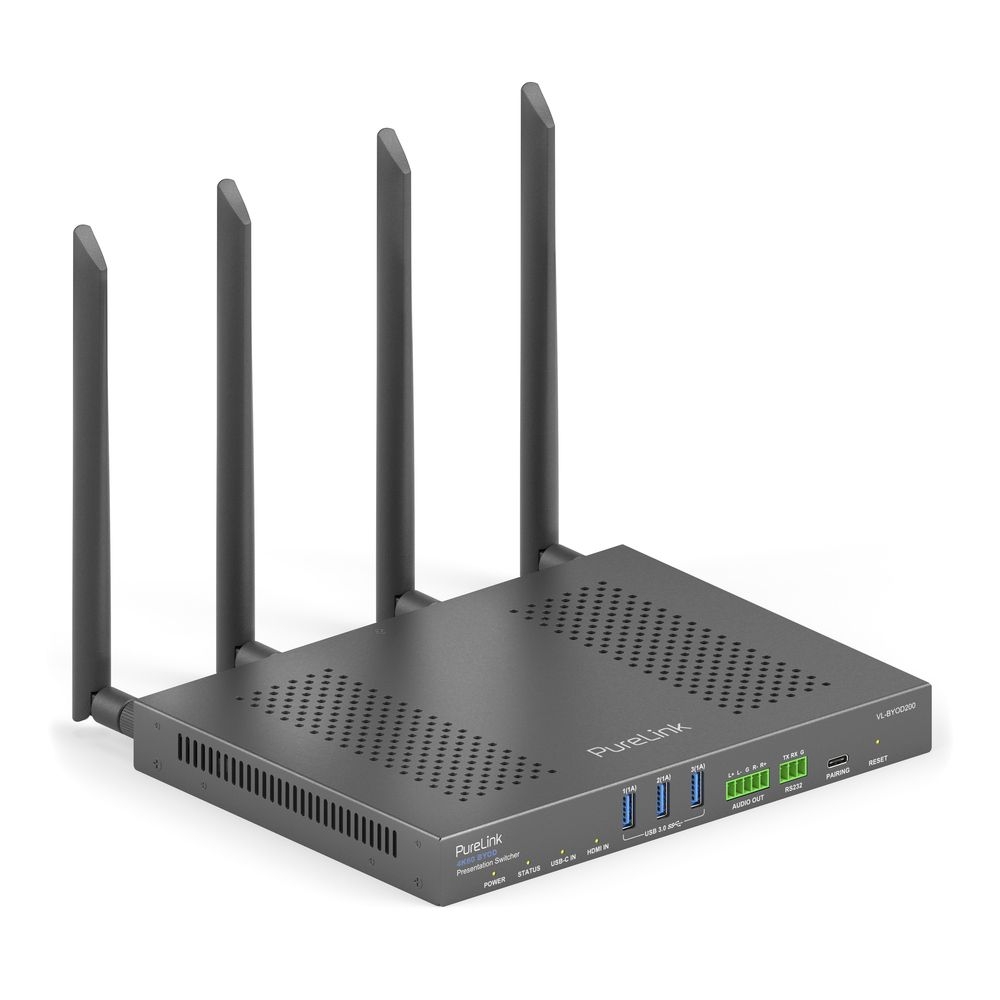

PureLink VL-BYOD200 | 4K60 BYOD Collaboration Switcher | 2in x 1:2out | 3840x2160 60Hz 4:4:4

Features

4K 30Hz 4:4:4 HDMI / USB-C inputs, 4K 60Hz 4:4:4 HDMI output, 4K 60Hz 4:2:0 HDBaseT output
Multi-View collaboration screen sharing with fast video switching / seamless USB peripheral switching
Built-in Wi-Fi module for sharing via, Airplay Mirroring, Miracast, dongle (DGL200) and Chromecast
USB-C Alt-Mode input with 60W PD, Ethernet connection, and USB 3.x data
3x 5Gbps peripheral ports, secure / utility LAN, web GUI, TCP/IP, RS232

VL-BYOD200 – Multi-Input 4K Collaboration Switcher: Unified AV Signal Routing for Hybrid Workspaces
The VL-BYOD200 integrates multiple high-resolution AV inputs and outputs into a single unit, supporting HDMI, USB-C, and HDBaseT connectivity for flexible signal routing in meeting rooms, collaborative workspaces, and hybrid environments. The device’s architecture accommodates both wired and wireless presentation workflows, enabling seamless integration of user devices via AirPlay Mirroring, Miracast, Chromecast, and dedicated dongle. With built-in collaboration functionality, network management options, and USB-C Power Delivery, this switcher streamlines AV infrastructure for spaces requiring fast switching, device charging, and secure network access.

Comprehensive 4K Input Options: Supports 4K 30Hz 4:4:4 HDMI and USB-C inputs, accommodating a wide range of source devices and ensuring compatibility with modern laptops and media players. This flexibility is suitable for dynamic meeting spaces and collaborative AV environments where multiple device types are routinely connected.
Dual 4K Output Pathways: Provides both 4K 60Hz 4:4:4 HDMI output and 4K 60Hz 4:2:0 HDBaseT output, enabling simultaneous display on local and remote screens. This dual-path approach facilitates integration with direct-view displays and extended distribution systems in conference rooms or signage deployments.
Multi-View Collaboration and Fast Switching: Integrated multi-view collaboration screen sharing allows users to display and control multiple sources simultaneously. Fast video switching and seamless USB peripheral switching improve workflow efficiency in environments where presenters or devices change frequently.
Integrated Wireless Sharing Module: Features a built-in Wi-Fi module supporting AirPlay Mirroring, Miracast, Chromecast, and dedicated dongle (DGL200) connectivity. This enables wireless content sharing from a broad range of user devices without the need for additional network infrastructure.
USB-C Alt-Mode and Network Integration: The USB-C input supports Alt-Mode video, 60W Power Delivery for device charging, Ethernet connectivity, and USB 3.x data transfer. Three 5Gbps USB peripheral ports and secure LAN options provide robust connectivity for peripherals and network management via web GUI, TCP/IP, and RS232.

Unified Signal Management for Professional AV Deployments
By combining multi-format input support, dual 4K output options, and integrated wireless sharing, the VL-BYOD200 enables streamlined AV signal management across hybrid meeting rooms and collaborative workspaces. Collaboration switching, network integration, and USB-C Power Delivery address common requirements for device flexibility, secure connectivity, and efficient content sharing in professional AV installations.

Allmänt

Applikation: Presentations switch, Switch

Bildspecifikation

Upplösning max ut: 3840x2160
Uppdateringsfrekvens: 60 Hz
Chroma subsampling (4K): 4:4:4

Anslutningar

Antal bildingångar: 2
Antal bildutgångar: 1:2 HDMI & HDBaseT Mirrored
Bildanslutning in: HDMI x1
Bildanslutning in: Trådlös bilddelning AirPlay, Miracast, Chromecast & Purelink DGL200 Dongle (optional)
Bildanslutning in: USB-C x1 with DP Alt-Mode video, 60W PD, Ethernet & USB 3.x data
Bildanslutning ut: HDBaseT (RJ-45) x1 4K 60Hz 4:2:0
Bildanslutning ut: HDMI x1
Ljudanslutning ut: Euroblock lågnivå Analog

Funktioner

Video operation modes: Multiviewer
USB passthrough: Ja 3x 5Gbps peripheral ports
USB standard: 3.0
USB strömleverans: 12V, 5A (60W) via USB-C
Styrning: Ethernet/IP (RJ-45) TCP/IP
Styrning: RS-232, Web interface

Energi

Strömförsörjning: 20V DC Power supply

Övrigt

Montering: Fristående/Hylla
Medföljande Tillbehör: 1x EZCast Pro Box II - Wireless Multi Display Receiver, Manual

Förpackningsinfo

Förpackningsstorlek: 399 x 225 x 88 mm
Förpackningsvikt: 1,87 kg
