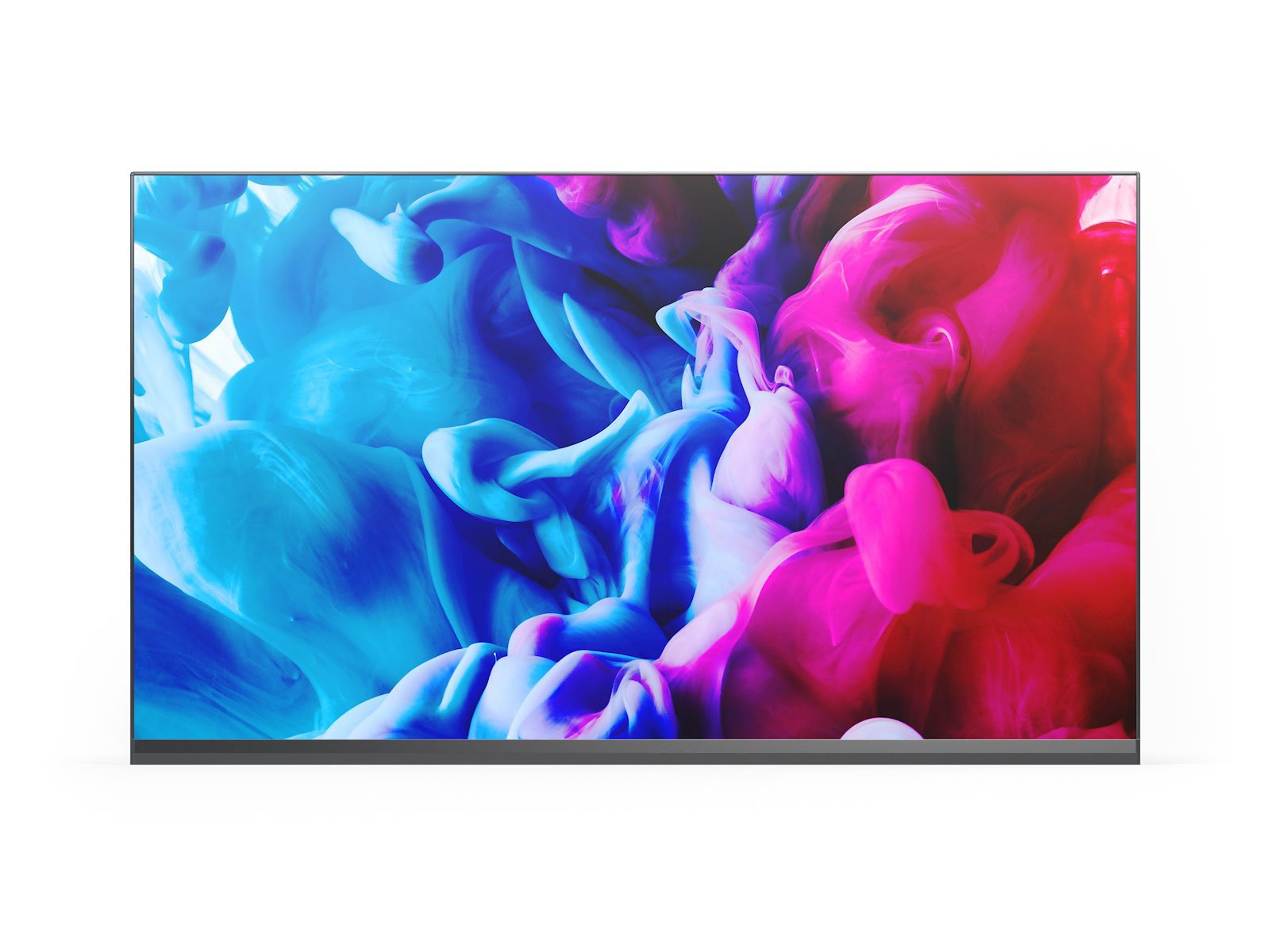

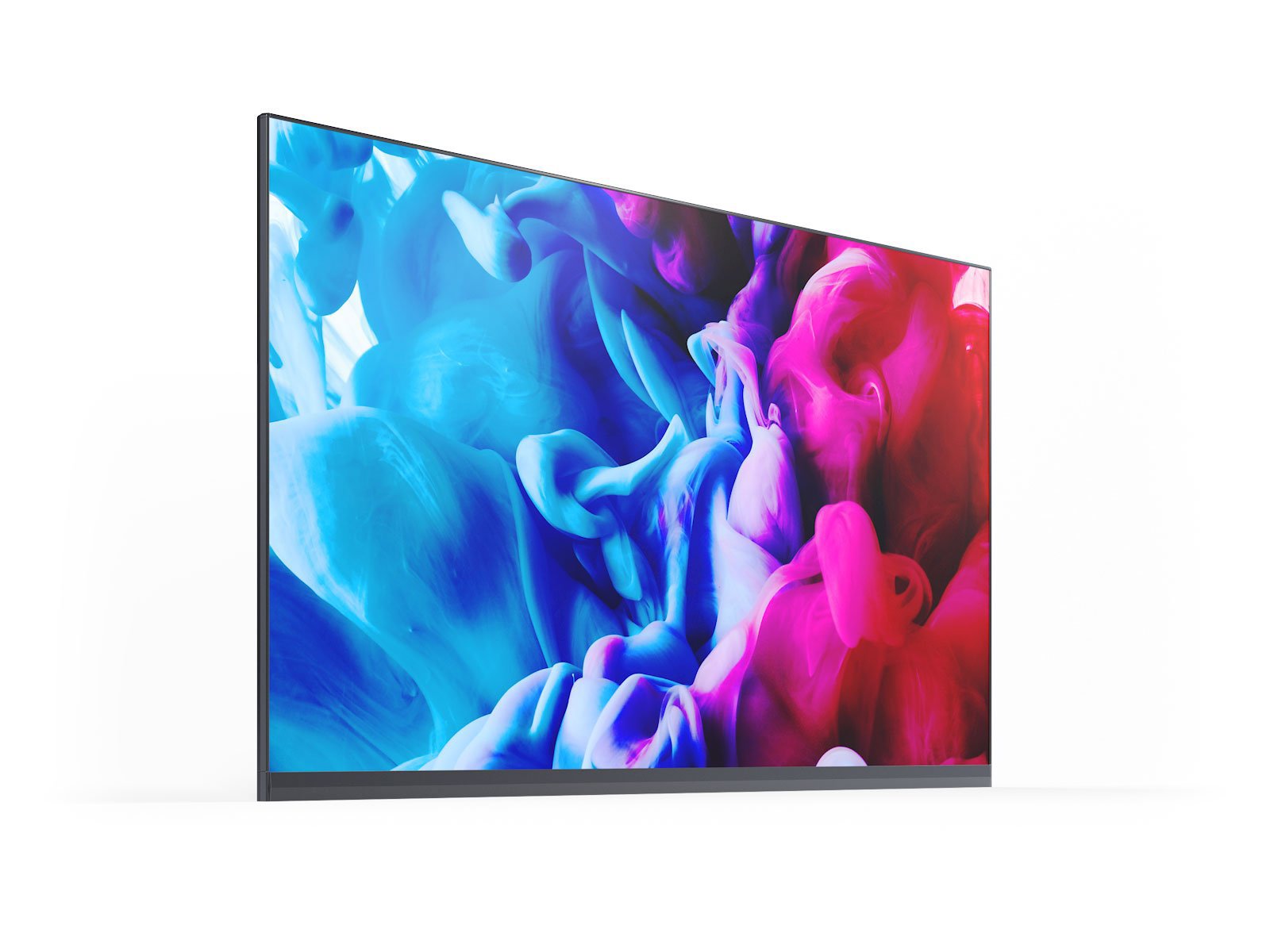

Next-Level Visual Performance. Built to Endure.
Delivering vibrant colour, deep blacks, and extreme contrast, the Sharp D Series redefines the visual experience with captivating content, even in the brightest environments. Powered by advanced flip-chip CoB technology, it provides outstanding image clarity and true blacks, aligning it for presentation of detail-rich content, wayfinding, and immersive digital storytelling across a variety of settings.
The highly energy efficient flip-chip CoB architecture not only enhances visual performance but also reduces power consumption, helping to significantly lower operating costs over its long lifetime.
Engineered for durability, the D Series performs reliably in demanding spaces such as transport hubs, public venues and corporate settings. Choose from standard-size bundle options, including all the components needed for seamless integration of large format displays, free from distracting bezels. Its robust construction, high brightness, and long service life make it a smart investment for professional installations that prioritise visual quality and long-term value.
Benefits:
- Excellent contrast ratio of up to 20000:1 and deep black level – ensures content is presented in vivid clarity for the best possible viewing experience.
- Significantly lowering your energy usage – CoB technology is highly efficient, consuming up to 40% less power compared to standard SMD technology at the same brightness output.
- Established mechanical cabinet design – supports wall mounted or freestanding installation with speed and ease, achieving precision module alignment for a single large surface perception.
- Excellent visual performance – unseen colour reproduction with excellent off angle performance.
- Secure investment in high-end dvLED visualisations – CoB technology enables installations to be more robust and long lasting.
Display
- Bilddiagonal
- 165 "
- Upplösning Display
- 3840 x 2160
- Pixel pitch
- 0,9 mm
- Diodtyp
- COB (0408)
- Uppdateringsfrekvens
- 3 840 Hz
- Ljusstyrka (Max)
- 800 Nits
- Betraktningsvinkel
- 160 ° horizontal / 150 vertical
LED Modul/Kabinett
- Antal kabinett/display (BxH)
- 6x6 36
- Antal moduler/kabinett (BxH)
- 4x2
- Upplösning Kabinett
- 640 x 360
- Upplösning Modul
- 160 x 180
Anslutningar
- Bildanslutning in
- HDMI x1
- Ethernet (RJ-45)
- Ja x1
Energi
- Strömförsörjning
- 100-240 V AC; 50/60 Hz
- Förbrukning Max/m2
- 289 W
- Förbrukning Max tot.
- 2 160 W
Mått och vikt
- Bredd
- 3 688 mm
- Höjd
- 2 176,5 mm
- Djup
- 82 mm
- Nettovikt
- 325 kg
Övrigt
- Service access
- Front Service
- IP Klassning
- IP20; IP40
- Min temp vid drift
- −20 Celsius
- Max temp vid drift
- 40 Celsius
- Medföljande Tillbehör
- 1x LED Controller; LED Modules (36 Cabinets, 288 Pixel Cards); Overframe Kit (6x6); Pixel Card Removal Tool; Powerbar (depending on version); Spare Parts Kit; Wall mount (6x6)
- Garanti
- 3 år
