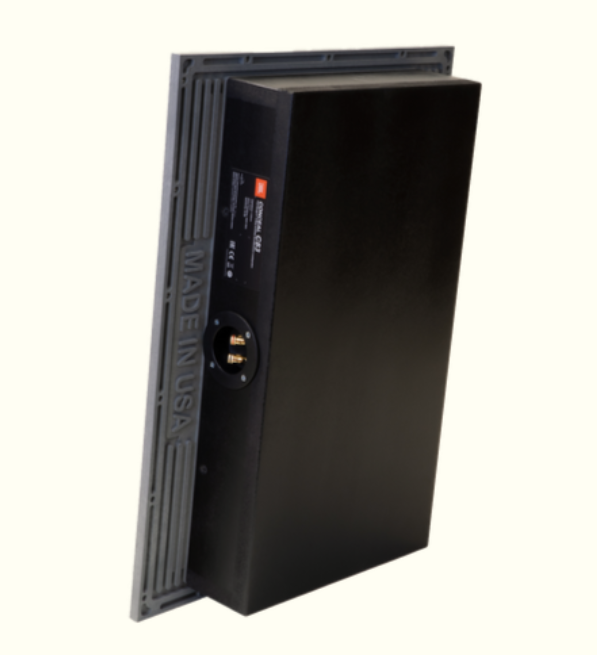

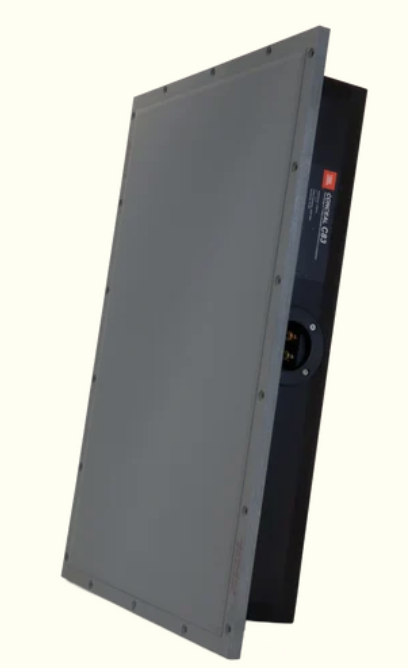

The JBL Conceal C83 Invisible Loudspeaker is a high-performance 3-element design built around a patented compression molded baffle and paintable Fidelity Glass™ outer skin. The finished loudspeaker panel installs easily and disappears completely into the surrounding walls or ceiling, allowing optimal placement virtually anywhere in a home. The JBL Conceal Series is the ultimate solution for high-performance architectural audio.

• One-piece design with 8-inch (200mm) LF driver and duel-element MF/HF driver.
• Proprietary FidelityGlass™ acoustic panel and compression molded baffle.
• Custom designed transducers with JBL premium acoustic crossover network.

8-inch (200mm) 3-element Invisible Loudspeaker
• Low Frequency Driver: 8-inch (203mm) woofer with 1.5-inch (38mm) voice coil
• Mid Frequency Driver: 1.18-inch (30mm) voice coil transducer with neodymium magnet
• High Frequency Driver: 1-inch (25mm) voice coil transducer with neodymium magnet
• Recommended Amplifier Power: 50 – 160WRMS
• Impedance: 4 Ohm
• Loudspeaker Sensitivity: 84 dB/1W/1m measured in-room
• Frequency Response: 45Hz – 20kHz (-6 dB) measured in-room
• Crossover Frequency: 500Hz
• Enclosure Type: Sealed, with wooden back-box
• Panel Dimensions: 22" H x 15-7/8" W x 3-7/8" D (559mm H x 403mm W x 98mm D)
• Cut-out Dimensions: 22-1/8" H x 16" W (562mm H x 406mm W)
• Mounting Depth: 3-3/8-inches (86mm)
• Protection: Two independent self-resetting devices (LF and MF/HF)
• Input Type: Dual gold-plated spring-loaded binding posts
