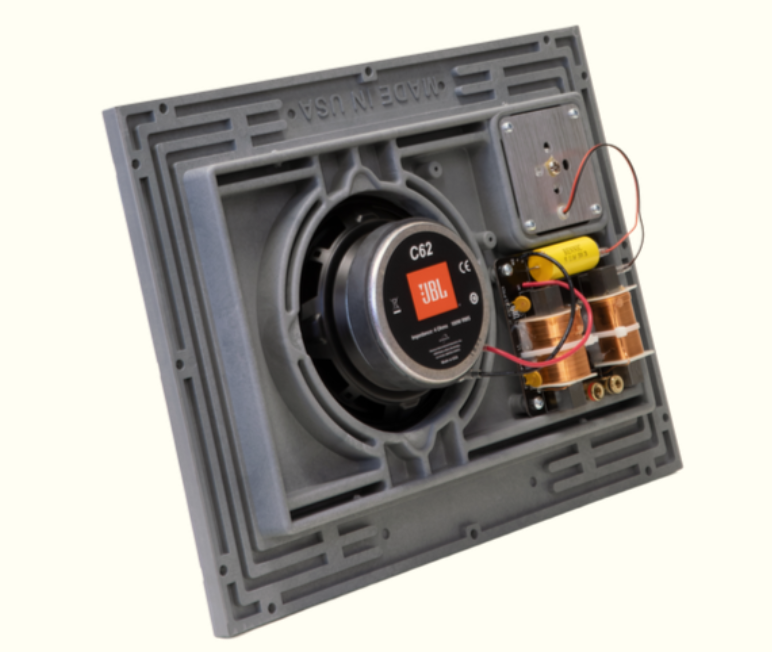

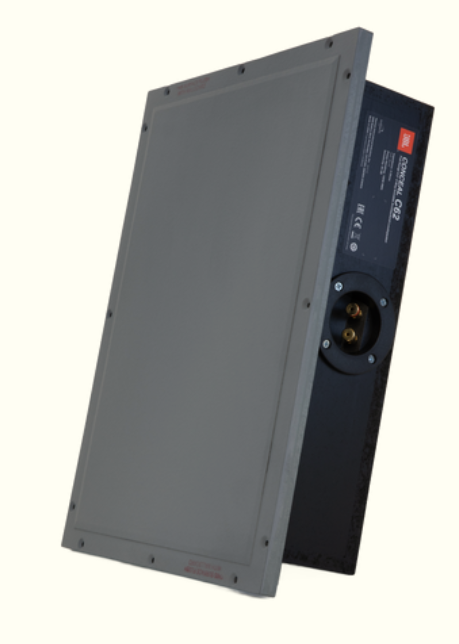

The JBL Conceal C62 Invisible Loudspeaker is a compact 2-way design built around a patented compression molded baffle and paintable Fidelity Glass™ outer skin. The finished loudspeaker panel installs easily and disappears completely into the surrounding walls and ceiling, allowing optimal placement virtually anywhere in a home. The JBL Conceal Series is the ultimate solution for high-performance architectural audio.

• One-piece design with 6.5-inch (165mm) LF driver and single-element MF/HF driver.
• Proprietary FidelityGlass™ acoustic panel and compression molded baffle.
• Custom designed transducers with JBL premium acoustic crossover network.

6.5-inch (165mm) 2-element Invisible Loudspeaker
• Low Frequency Driver: 6.5-inch (165mm) woofer with 1-inch (25mm) voice coil
• High Frequency Driver: 1.18-inch (30mm) voice coil transducer with neodymium magnet
• Recommended Amplifier Power: 50 – 100 WRMS
• Impedance: 4 Ohm
• Loudspeaker Sensitivity: 83dB/1W/1m measured in-room
• Frequency Response: 45Hz – 20kHz (-6dB) measured in-room
• Crossover Frequency: 600Hz
• Enclosure Type: Sealed, with wooden back-box
• Panel Dimensions: 11-7/8" H x 15-7/8" W x 3-7/8" D (302mm H x 403mm W x 98mm D)
• Cut-out Dimensions: 12" H x 16" W (305mm H x 406 W)
• Mounting Depth: 3-3/8-inches (86mm)
• Protection: Two independent self-resetting devices (LF and HF)
• Input Type: Dual gold-plated spring-loaded binding posts
