The BSS OMNI-VE-630-WP is an AV-over-IP encoder wallplate for distributing 4K60 4:4:4 video, audio, and USB 2.0 signals over Gigabit Ethernet, in environments ranging from classrooms and meeting rooms to courtrooms, hospitality venues, and large enterprise or government facilities.

At the core of the OMNI-VE-630-WP is the Motion Wavelet Compression (MWC) codec, engineered for pristine visual quality and ultra-low encode to decode latency with fast-motion video, high-detail graphics, and dynamic visual content.

This AVoIP encoder includes USB-C and HDMI inputs with automatic switching. The USB-C interface supports DisplayPort Alt Mode for video input, and USB data for the host PC.

The OMNI-VE-630-WP features USB 2.0 routing and extension through Virtual Network USB 2.0 Hub technology. A host PC can communicate with USB devices located at up to four OMNI 600 decoders or OMNI 200 USB endpoints, supporting USB 2.0 data rates up to 480 Mbps. This capability allows host PCs to interface with cameras, conferencing bars, touch displays, HID peripherals, and other devices at remote locations across the network.

Along with high-performance networked AV distribution, the OMNI-VE-630-WP is Dante AV-A enabled for interoperability with third-party Dante AV-A decoders. Integrators can configure and manage OMNI 600 systems using Dante Controller, Dante Domain Manager, and Dante Director. In addition, this encoder supports two-channel Dante audio input and output, as well as conversion to USB audio (UAC) for the host PC.

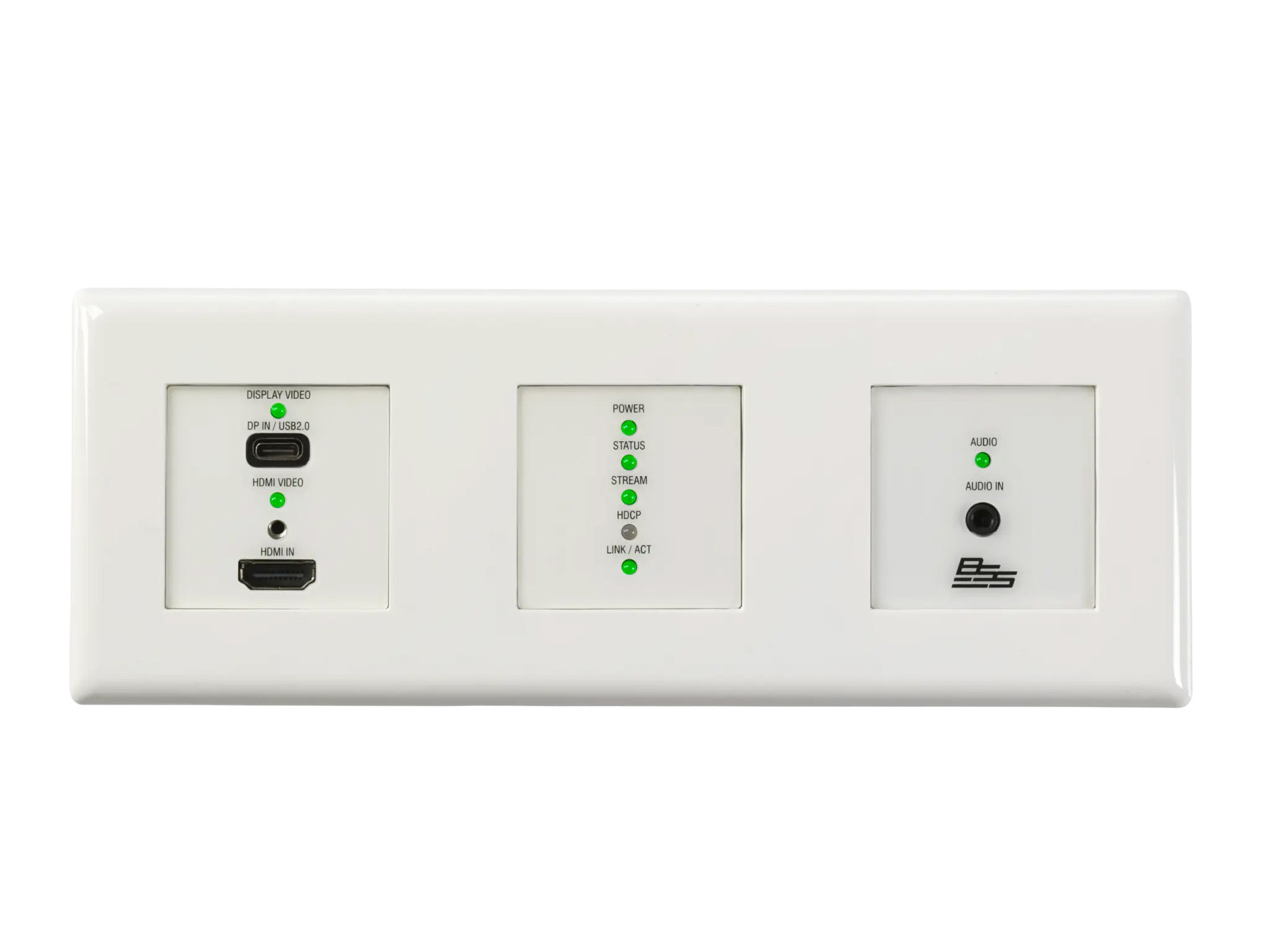

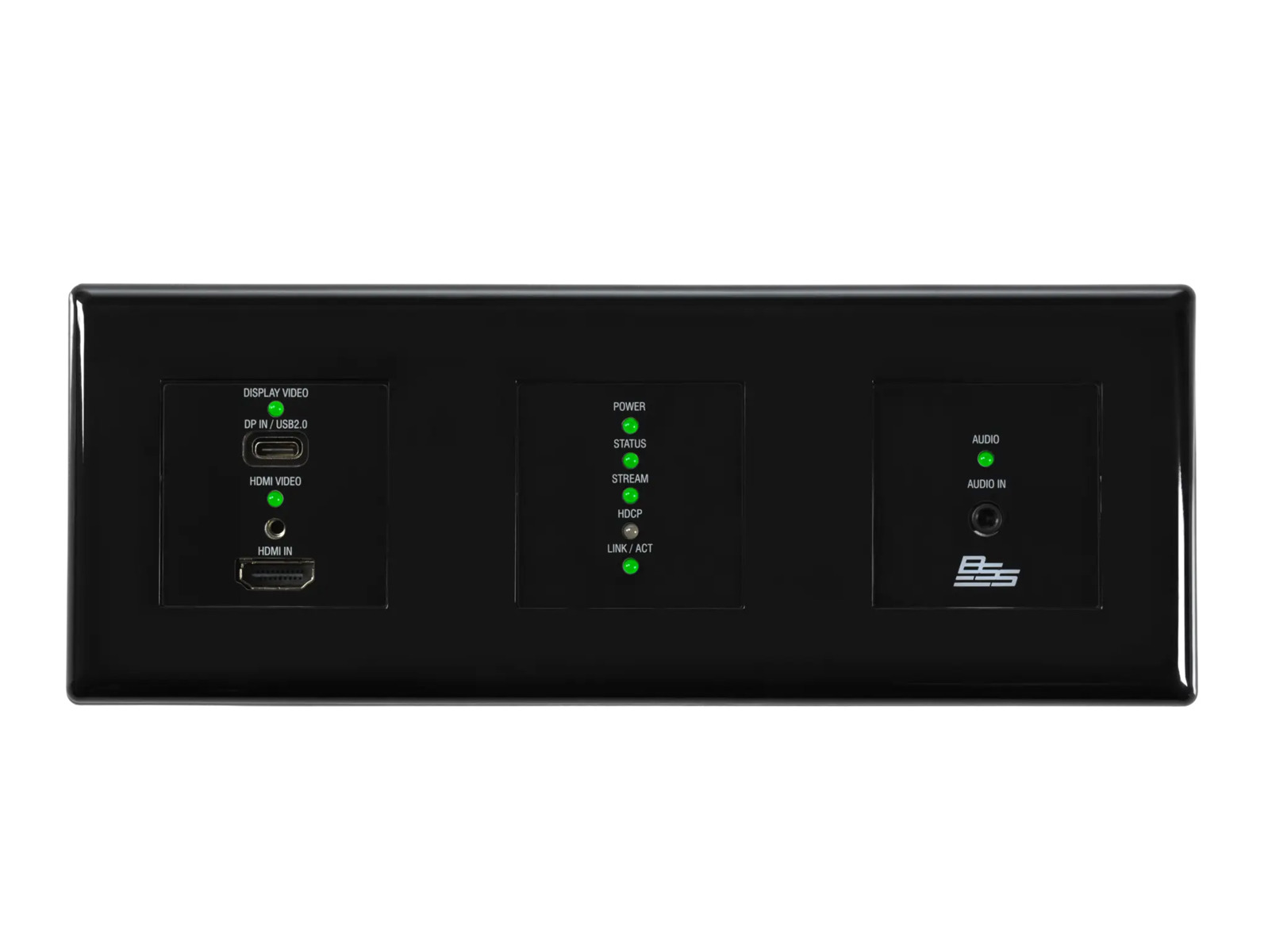

The OMNI-VE-630-WP is designed for modern professional AV installations, with essential integration features including PoE+ remote powering, a low-power standby mode, video source preview, custom image and slideshow presentations, and open APIs for third-party control. It is available in two models: OMNI-VE-630-WP (US Version) and OMNI-VE-630-WP-EK (EU/UK Version). Each model includes black and white faceplate inserts and wallplate covers.

Features

• AV-over-IP encoder for 4K60 4:4:4 video, audio, and USB 2.0 over Gigabit Ethernet
• Available in US and EU/UK wallplate versions, each with interchangeable black and white faceplate inserts and wallplate covers
• High-performance MWC codec delivers pristine-quality video with ultra-low latency
• USB-C and HDMI inputs with automatic switching
• USB-C interface supports DisplayPort Alt Mode for video input, and USB data for host PC
• Virtual Network USB 2.0 Hub for routing between a USB host and devices at up to four remote locations
• Two-channel Dante audio input and output (2x2) with conversion to USB audio (UAC)
• Dante AV-A enables interoperability with third-party networked AV decoders, plus system management from Dante Controller, Dante Domain Manager, and Dante Director
• Video preview from the built-in web interface or a touch panel
• Supports custom image and slideshow presentations
• PoE+ powered with low-power (standby) mode to conserve energy
• Enterprise-grade network security and standards including IEEE 802.1x, HTTPS, TLS, AES-256 encryption, LDAP, VLAN tagging, and QoS
• AVX Suite for OMNI 600 system configuration and management
• HARMAN HControl and BSS Direct Control provide open APIs for third-party control integration
