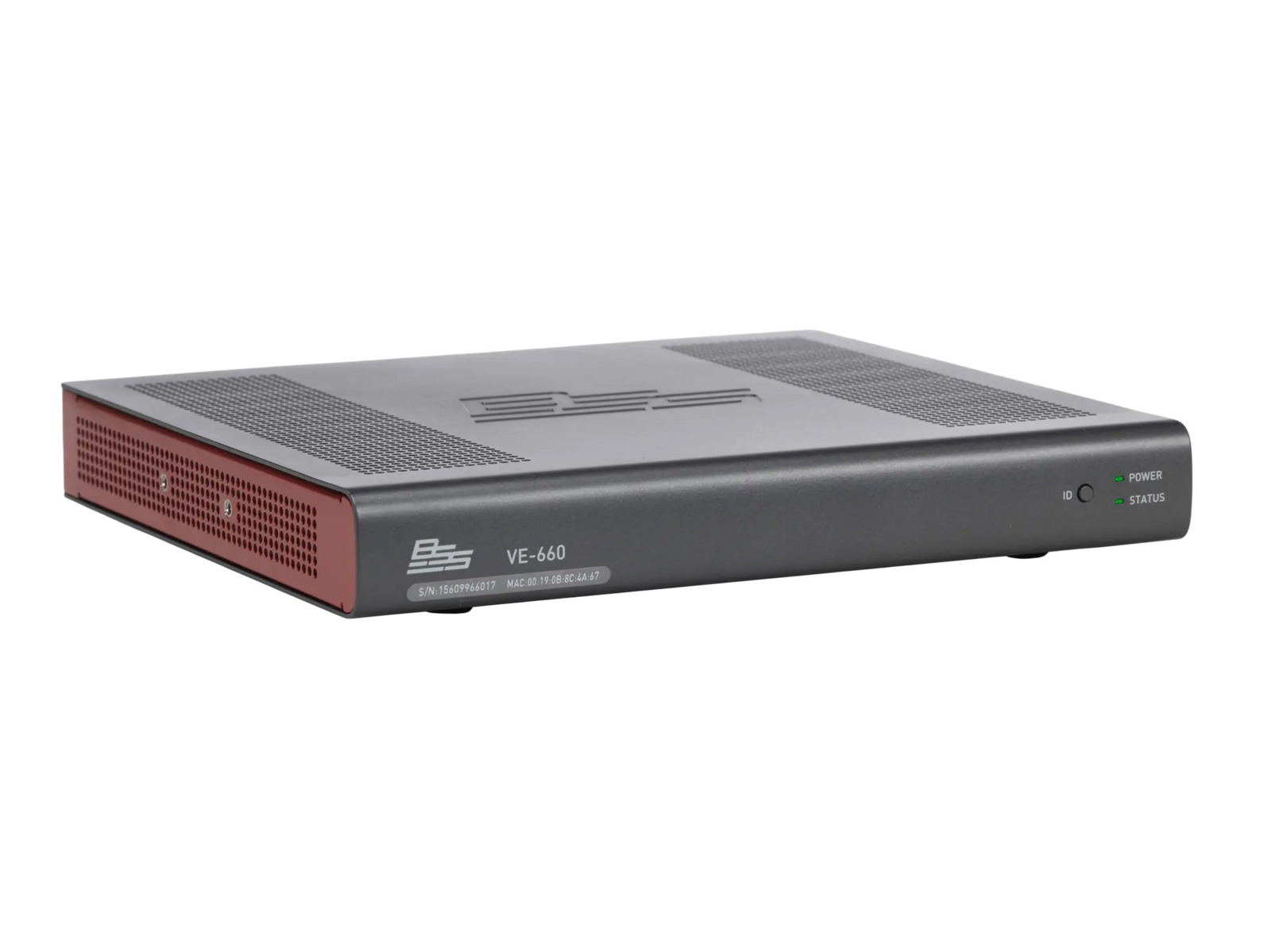

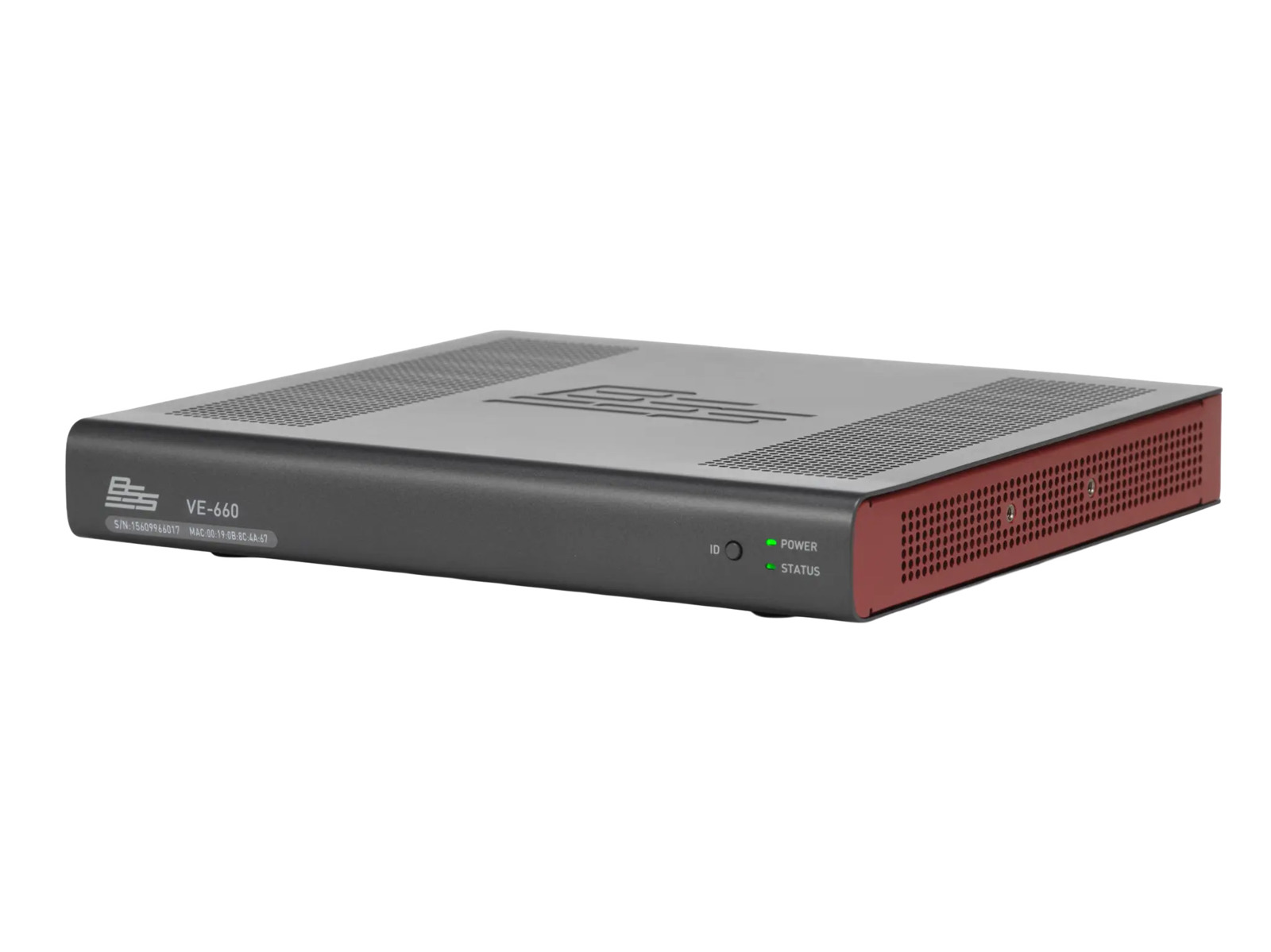

The BSS OMNI-VE-660 is a feature-rich AV-over-IP encoder for distributing 4K60 4:4:4 video, audio, control, and USB 2.0 signals over Gigabit Ethernet, in environments ranging from classrooms and meeting rooms to courtrooms, hospitality venues, and large enterprise or government facilities.
At the core of the OMNI-VE-660 is the Motion Wavelet Compression (MWC) codec, engineered for pristine visual quality and ultra-low encode to decode latency with fast-motion video, high-detail graphics, and dynamic visual content. Additionally, the OMNI-VE-660 features simultaneous, standards-based 1080p H.264 or H.265 encoding, for bandwidth-efficient streaming over WANs or shared networks to third-party devices and platforms.
This AVoIP encoder includes USB-C and HDMI inputs with automatic switching and HDMI loop output. The USB-C interface supports DisplayPort Alt Mode for video input, USB data for the host PC, and up to 100 watts charging when a standard USB PD power supply is connected.
The OMNI-VE-660 features USB 2.0 routing and extension through Virtual Network USB 2.0 Hub technology. A host PC can communicate with USB devices located at up to four OMNI 600 decoders or OMNI 200 USB endpoints, supporting USB 2.0 data rates up to 480 Mbps. This capability allows host PCs to interface with cameras, conferencing bars, touch displays, HID peripherals, and other devices at remote locations across the network.
Along with high-performance networked AV distribution, the OMNI-VE-660 is Dante AV-A enabled for interoperability with third-party Dante AV-A decoders. Integrators can configure and manage OMNI 600 systems using Dante Controller, Dante Domain Manager, and Dante Director. In addition, this encoder supports two-channel Dante audio input and output, as well as conversion to USB audio (UAC) for the host PC.
The OMNI-VE-660 is designed for modern professional AV installations, with essential integration features including PoE+ remote powering, a low-power standby mode, video source preview, custom image and slideshow presentations, and open APIs for third-party control.
Features
- AV-over-IP encoder for 4K60 4:4:4 video, audio, control, and USB 2.0 over Gigabit Ethernet
- High-performance MWC codec delivers pristine-quality video with ultra-low latency
- Simultaneous, standards-based 1080p H.264 or H.265 encoding for bandwidth-efficient streaming
- USB-C and HDMI inputs with automatic switching and HDMI loop output
- USB-C interface supports DisplayPort Alt Mode for video input, USB data for host PC, and up to 100 watts charging when a standard USB PD power supply is connected
- Virtual Network USB 2.0 Hub for routing between a USB host and devices at up to four remote locations
- Two-channel Dante audio input and output (2x2) with conversion to USB audio (UAC)
- Dante AV-A enables interoperability with third-party networked AV decoders, plus system management from Dante Controller, Dante Domain Manager, and Dante Director
- Video preview from the built-in web interface or a touch panel
- Supports custom image and slideshow presentations
- PoE+ powered with low-power (standby) mode to conserve energy
- Enterprise-grade network security and standards including IEEE 802.1x, HTTPS, TLS, AES-256 encryption, LDAP, VLAN tagging, and QoS
- AVX Suite for OMNI 600 system configuration and management
- HARMAN HControl and BSS Direct Control provide open APIs for third-party control integration
- UL2043 certification for plenum space installation
Allmänt
- Produktserie
- OMNI 600
- Extender typ
- Sändare (Tx)
- Teknologi
- Dante AV-A, H.264, H.265, MWC
Bildspecifikation
- Max stödd upplösning
- 4096x2160
- Uppdateringsfrekvens
- 60 Hz
- Chroma subsampling (4K)
- 4:4:4
Anslutningar
- Bildanslutning in
- HDMI
- Bildanslutning in
- USB-C DisplayPort Alt Mode, USB Data, 100W charging with USB PD connected
- Bildanslutning ut
- HDMI Loop
- Bildanslutning ut
- IP stream (RJ-45)
- Ljudanslutning in
- Euroblock lågnivå Unbalanced
- Ljudanslutning in
- HDMI Embedded
- Ljudanslutning in
- USB-C Embedded
- Ljudanslutning ut
- Dante (RJ-45)
- Ljudanslutning ut
- HDMI Loop
- Styrning
- Ethernet/IP (RJ-45), IR kabelanslutning, RS-232
- USB passthrough
- Ja USB 2.0 Hub for routing between a USB host and devices at up to four remote locations
Kommunikation
- Latency
- 2 ms Scaling adds one frame of latency
- Switch Data Rate
- 1GbE
Energi
- Strömförsörjning
- PoE+, conforms to IEEE 802.3at. Option AC power supply 2.0 Amp @ 12 Volts DC; 100-240 Volts
Mått och vikt
- Bredd
- 200 mm
- Djup
- 172 mm
- Höjd
- 26,6 mm
- Nettovikt
- 1,44 kg
Övrigt
- Montering
- Fristående/Hylla, Väggmontering
- Medföljande Tillbehör
- 2x Painted L-Brackets
