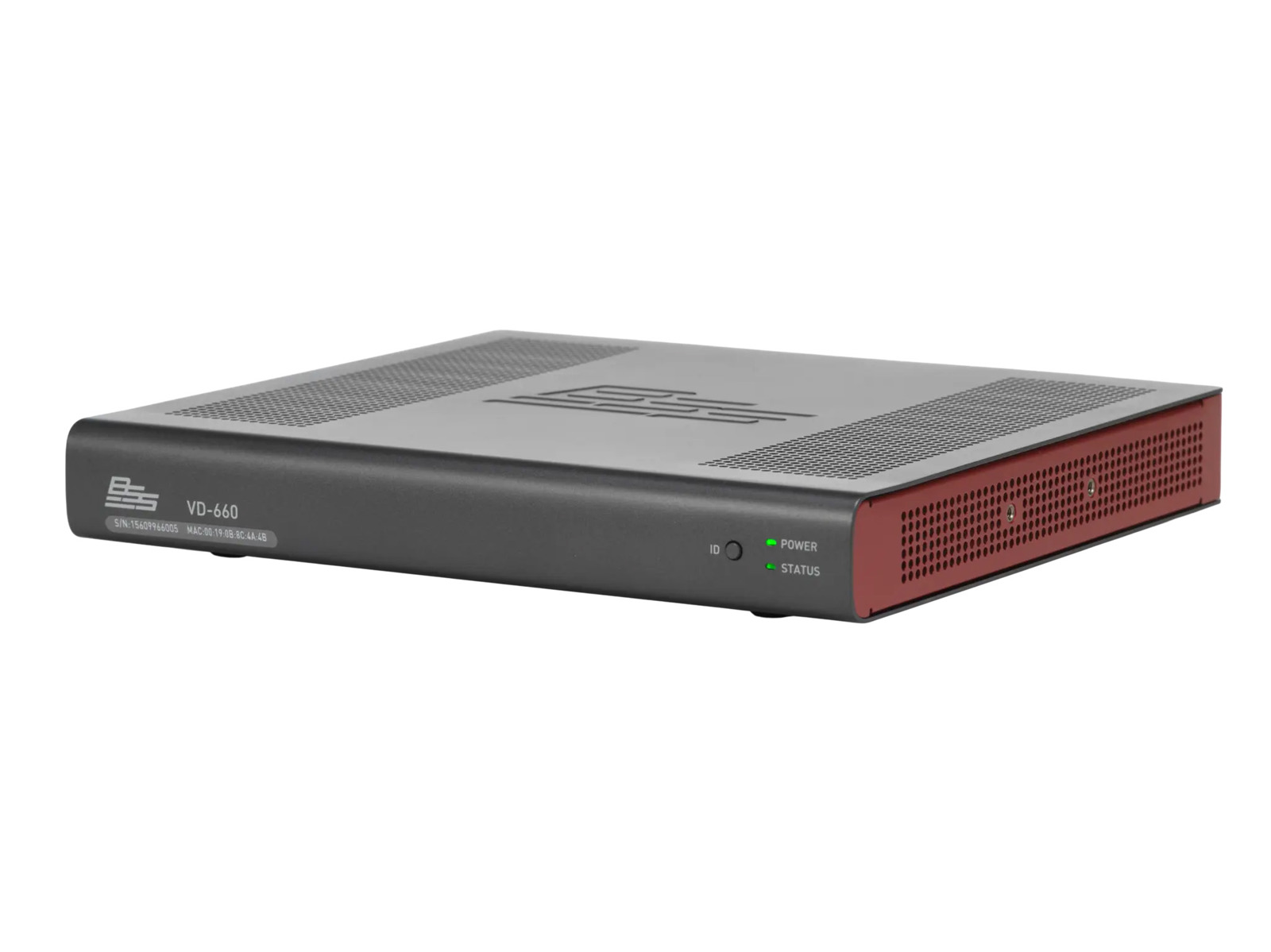

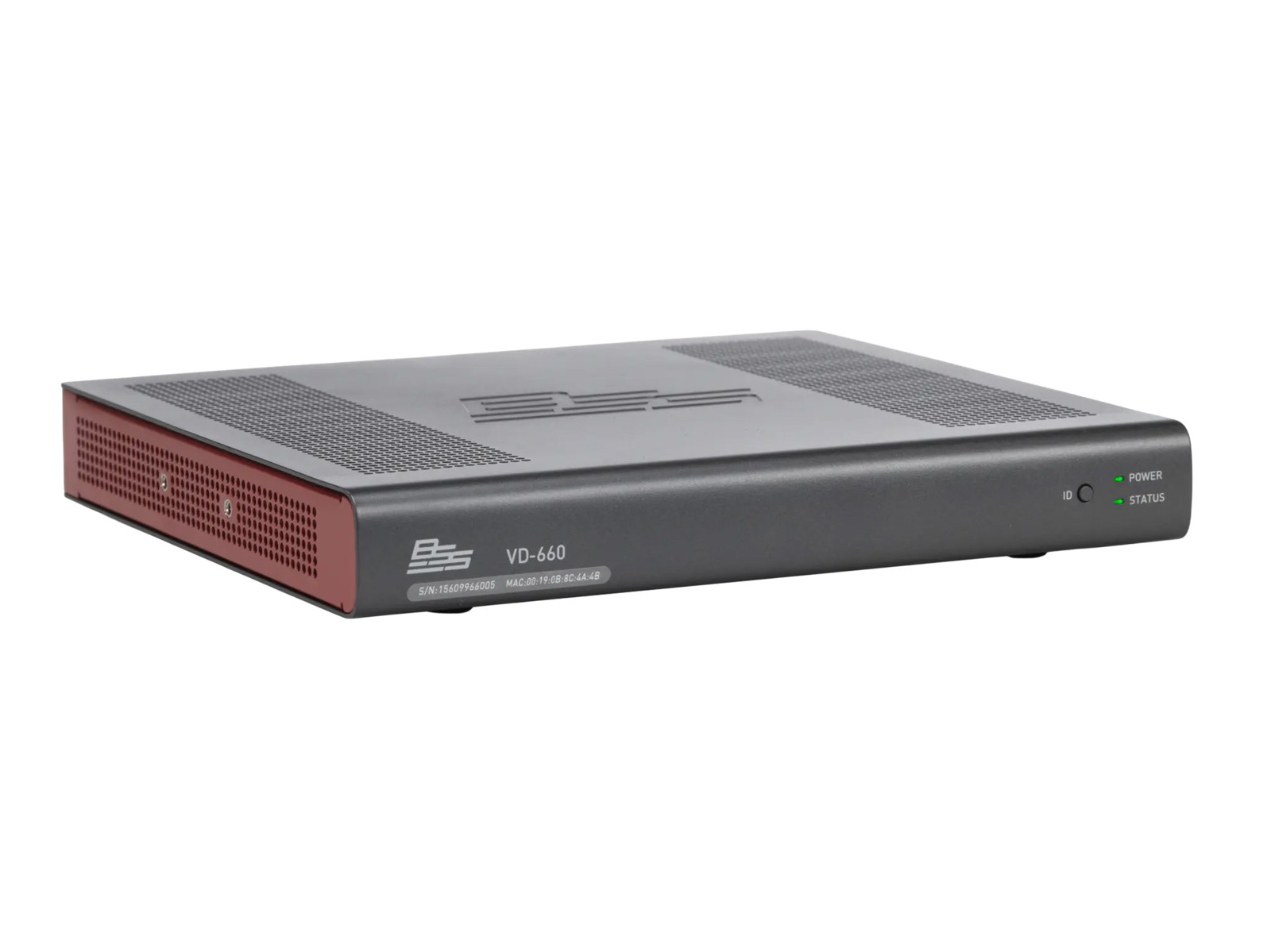

The BSS OMNI-VD-660 is an AV-over-IP decoder for distributing 4K60 4:4:4 video, audio, control, and USB 2.0 signals over Gigabit Ethernet, in environments ranging from classrooms and meeting rooms to courtrooms, hospitality venues, and large enterprise or government facilities.
At the core of the OMNI-VD-660 is the Motion Wavelet Compression (MWC) codec, engineered for pristine visual quality and ultra-low encode to decode latency with fast-motion video, high-detail graphics, and dynamic visual content. Additionally, the OMNI-VE-660 features standards-based 1080p H.264 or H.265 decoding, for receiving bandwidth-efficient streams from third-party devices or platforms, or compatible OMNI networked AV encoders over WANs or shared networks.
The OMNI-VD-660 features USB 2.0 routing and extension through Virtual Network USB 2.0 Hub technology. A host PC, connected to an OMNI 600 encoder, can communicate with USB devices located at up to four OMNI-VD-660 decoders or 200 Series device transceivers, supporting USB 2.0 data rates up to 480 Mbps. This capability allows host PCs to interface with cameras, conferencing bars, touch displays, HID peripherals, and other devices at remote locations across the network.
Along with high-performance networked AV distribution, the OMNI-VD-660 is Dante AV-A enabled for interoperability with third-party Dante AV-A encoders. Integrators can configure and manage OMNI 600 systems using Dante Controller, Dante Domain Manager, and Dante Director. In addition, this decoder supports two-channel Dante audio input and output.
The OMNI-VD-660 is designed for modern professional AV installations, with essential integration features including PoE+ remote powering, a low-power standby mode, video stream preview, custom image and slideshow presentations, open APIs for third-party control, 4K video scaling, and video wall processing
Features
- AV-over-IP decoder for 4K60 4:4:4 video, audio, control, and USB 2.0 over Gigabit Ethernet
- High-performance MWC codec delivers pristine-quality video with ultra-low latency
- Standards-based 1080p H.264 or H.265 decoding
- Virtual Network USB 2.0 Hub for routing between a USB host and devices at up to four remote locations
- Dante AV-A enables interoperability with third-party networked AV encoders, plus system management from Dante Controller, Dante Domain Manager, and Dante Director
- Two-channel Dante audio input and output (2x2)
- Video preview from the built-in web interface or a touch panel
- Supports custom image and slideshow presentations
- Enhance video presentations with 4K video scaling, seamless switching, and video wall processing
- PoE+ powered with low-power (standby) mode to conserve energy
- Enterprise-grade network security and standards including IEEE 802.1x, HTTPS, TLS, AES-256 encryption, LDAP, VLAN tagging, and QoS
- AVX Suite for OMNI 600 system configuration and management
- HARMAN HControl and BSS Direct Control provide open APIs for third-party control integration
- UL2043 certification for plenum space installation
Allmänt
- Produktserie
- OMNI 600
- Extender typ
- Mottagare (Rx)
- Teknologi
- Dante AV-A, H.264, H.265, MWC
Bildspecifikation
- Max stödd upplösning
- 4096x2160
- Uppdateringsfrekvens
- 60 Hz
- Chroma subsampling (4K)
- 4:4:4
- Scaler
- Ja
- Video operation modes
- Videovägg/Tileing 16x16 MWC Only
Anslutningar
- Bildanslutning in
- IP stream (RJ-45)
- Bildanslutning ut
- HDMI
- Ljudanslutning in
- Dante (RJ-45)
- Ljudanslutning ut
- Dante (RJ-45), Euroblock lågnivå, HDMI
- Styrning
- Ethernet/IP (RJ-45), IR kabelanslutning, RS-232
- USB passthrough
- Ja USB 2.0 Hub for routing between a USB host and devices at up to four remote locations
Kommunikation
- Latency
- 2 ms Scaling adds one frame of latency
- Switch Data Rate
- 1GbE
- Krav Nätverksswitch
- Jumbo Frames
Energi
- Strömförsörjning
- PoE+, conforms to IEEE 802.3at. Option AC power supply 2.0 Amp @ 12 Volts DC; 100-240 Volts
Mått och vikt
- Bredd
- 200 mm
- Djup
- 172 mm
- Höjd
- 26,6 mm
- Nettovikt
- 1,44 kg
Övrigt
- Montering
- Fristående/Hylla, Väggmontering
- Medföljande Tillbehör
- 2x Painted L-Brackets
