2-portS DT30 synchronous and asynchronous LED controller

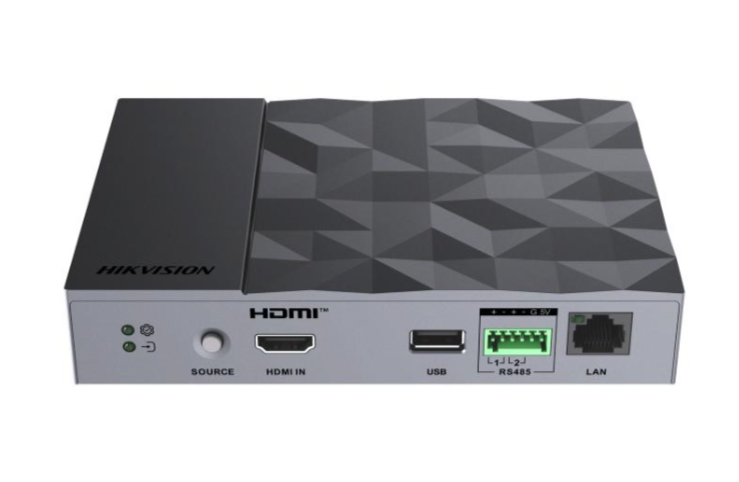

• Provides buttons on the front panel to change signal source.
• Provides indicator lights on the front panel to show power status, signal input status, operation status, and other information.
• Supports 1 video signal input, compatible with HDMI 1.3 at 1920 × 1080@60 Hz resolution.
• Supports frame rate adaption ranging from 25 Hz to 60 Hz for image collection.

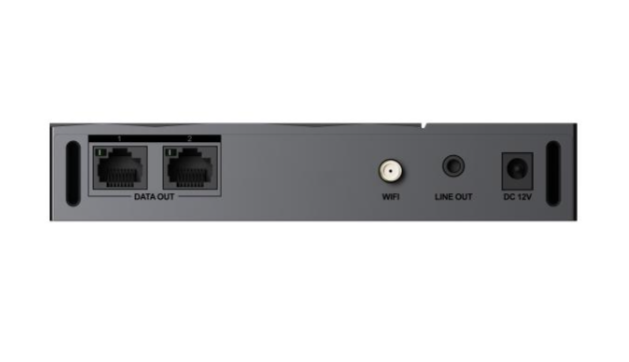

• Supports 2 network ports for output with a load capacity of up to 1.3 MP. The maximum width is 2048 pixels and maximum height is 2048 pixels for a single device and the maximum loading capacity of each network port is 0.65 MP.
• Supports HDMI audio-video composite stream input and 3.5mm audio output.
• Supports full-screen and custom scaling of video signal input and signal source switching.
• Complies with HDCP 1.4 protocol for high-bandwidth digital content protection.
• Supports custom EDID settings.
• Supports custom cable alignment without rectangular frame limit.
• Supports the operation through the client or the LED controller web page.
• Supports configuring the background.
• Supports configuring the startup logo
• Supports configuring the display dehumidification.
• Supports using the remote control to control the display to show the remote UI menu. The remote control needs to be purchased separately.
• Supports adjusting the brightness, contrast, hue, and other parameters of the output image.
• Supports changing the display mode, including general, text, advertisement, video, cinema, security, and etc.
• Supports selecting the color temperature adjustment mode such as standard, warm color, and cold color and customizing color temperature.
• Supports high refresh rate output at 3840 Hz, nanosecond response time, and smooth video picture.
• Supports viewing the loading relationship between the device and LED display.
• Supports viewing abnormal display positioning during running.
• Supports checking parameters such as device running status, device memory, CPU usage, and network port usage.
• Supports abnormal cabinet voltage detection and cabinet temperature detection.
• Supports connecting to the central control device and IoT device through RS-485 port.
• Supports docking device command and managing device by using the control network port and the protocols such as OTAP.
• Supports using the control network port to connect to the multi-function card to realize environment temperature detection, environment humidity detection, and the cooperation between the human body temperature monitoring and screen control.
• Provides built-in Android 14 system, 2 GB memory and 32 GB storage and supports multi-media playing.
• Supports program playback via USB flash drive.
• Decodes 2 channels of 1080P multi-media video.
• Supports simultaneous display of Android content and HDMI local source, and Picture-in-Picture (PiP) mode.
