Naturally Extended Lows Bring the Music to Life - VXS series “S” model subwoofers are ideal matches for VXS and VXC series speakers, smoothly extending the low frequency range with superb sonic quality for bigger, more true-to-life musical reproduction. Although no larger than a compact surface-mount speaker the VXS3S delivers solid, natural-sounding low-end reinforcement, while the VXS10S and VXS10ST make even more low-frequency power available for situations that require maximum bass authority.
Key Features:
- Versatile low-impedance subwoofer
- Sound and size ideally matched to the VXS and VXC series
- Bass-reflex design ensures smooth, distortion-free low-frequency extension
- Dual voice coil configuration supports stereo sources
- Satellite connectors for easy setup
- Dedicated wall-mount hardware supplied
- Black and white models available
- Recommended satellite speakers: VXS3F, VXS5, VXS8, VXC4, VXC6, VXC8, VXC3F
A Choice of Models for All Low-frequency Needs - Luxurious bass response can enhance musical presence and realism in a big way. Yamaha offers the VXS3S for smoothly extended low-end power, and the VXS10S and VXS10ST for applications that require maximum bass impact. Choose the model that best suits the size of the system and the full-range speakers used.
Low-frequency Enhancement Methods - A number of methods are used to enhance low frequency response in speaker enclosures. In bass reflex designs, a tuned port in the enclosure boosts low frequencies emanating from the rear of the speaker unit. The VXS10S adopts this method, specializing in more powerful low frequency reproduction. The problem with this approach is that as the enclosure becomes smaller or thinner, the size of the port must be reduced accordingly, resulting in increased resistance and correspondingly reduced bass enhancement. Bass reflex designs are not always suitable for compact enclosures.

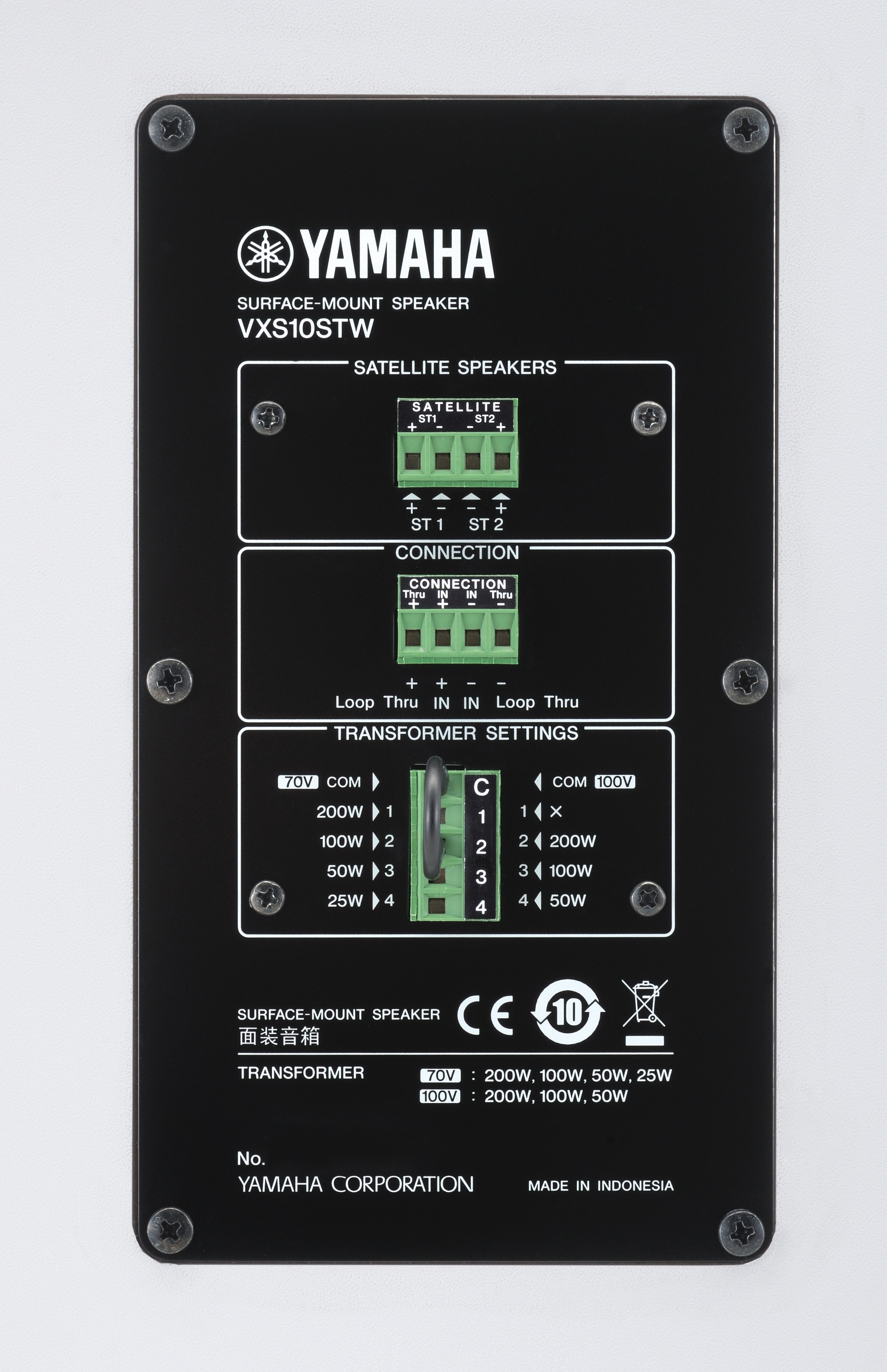

Satellite Connectors Optimize Balance - The VXS3S and VXS10S have satellite connectors on the rear panel, minimizing the number of amplifier channels required to get a system up and running. And since the VXS3S and VXS10S support high-impedance connections, it is possible to connect low-impedance satellites while the subwoofer is connected to a high-impedance system, for example. A built-in high-pass filter is automatically applied to the satellite speakers, providing exceptionally smooth, natural frequency crossover from subwoofer to satellites.
Flexible Installation Options - In addition to the supplied wall-mounting hardware, a variety of optional hardware allows VXS series “S” models to be mounted in a number of ways. The VXS10S can be placed on the floor or mounted on a wall or ceiling, while the VXS3S additionally allows flush ceiling mounting.
Allmänt
- Produktserie
- VXS
- Applikation
- Subwoofer
- Aktiv/Passiv
- Passiv
- Färg
- Vit
Högtalarelement
- LF
- 10 " Dual voice coils
Ljudspecifikation
- Impedans
- 8 Ohm +8 Ohm
- Frekvensomfång min
- 45 Hz
- Frekvensomfång max
- 250 Hz
- Verkningsgrad (1W/1m)
- 96 dB (1W, 1m)
- Effekttålighet
- 200 W +200W Program, 400W + 400W Max, 100W + 100W Noise
- Max SPL
- 125 dB (Calculated)
Anslutningar
- Ljudanslutning in
- Euroblock högt. kabel 4-Pin (CH1: +/-, CH2: +/-)
- Ljudanslutning ut
- Euroblock högt. kabel 4-Pin Sattelite output (ST1: +/-, ST2: +/-)
- Bluetooth
- Nej
- Ethernet (RJ-45)
- Nej
Mått och vikt
- Bredd
- 260 mm
- Djup
- 389 mm
- Höjd
- 500 mm
- Nettovikt
- 19,5 kg
Övrigt
- Medföljande Tillbehör
- Wall/Surface Mount Bracket
- Garanti
- 5 år
Förpackningsinfo
- Förpackningsstorlek
- 490 x 360 x 620 mm
- Förpackningsvikt
- 23,00 kg
