A superb blend of aesthetic simplicity and functional sophistication, the VS Series delivers high quality sounds in a variety of indoor and outdoor settings, particularly locations where interior design is a consideration. Let the VS Series be the perfect complement to your sonic needs.
Key Features:

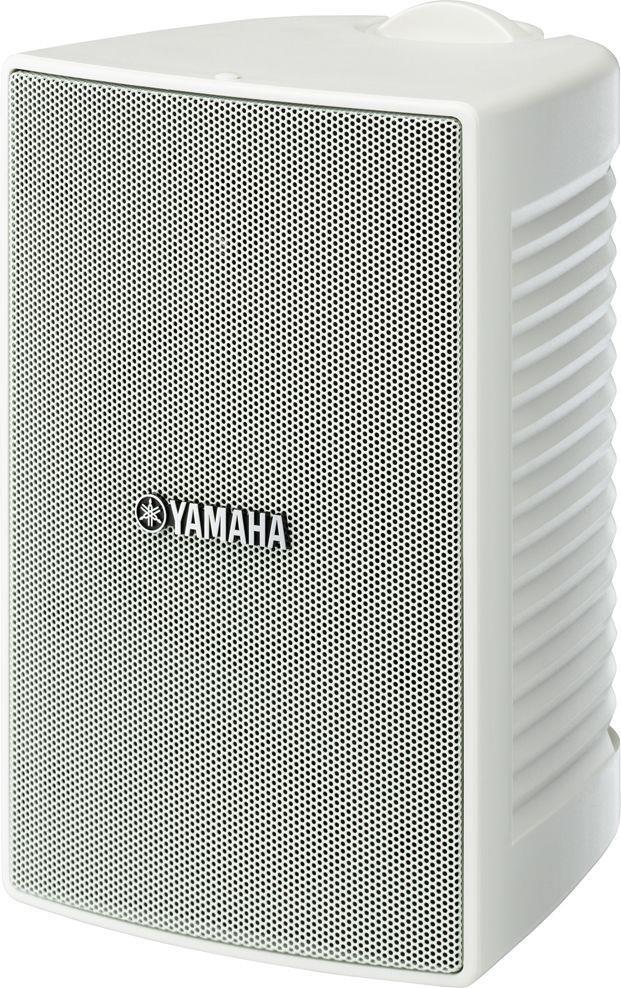

• Compact surface mount speakers with superior sound quality and sleek, functional design.
• Series comprises two models: the VS6 (6.5" woofer) and VS4 (4" woofer) - both models feature a 1" balanced dome tweeter and are available in Black or White.
• Waterproof construction meeting the IEC60529 IPX3 rating requirements for outdoor usage.
• Internally mounted transformers allowing operation in 70V or 100V distributed sound systems.
• Dedicated, color-matched steel U-bracket enclosed for horizontal or vertical installation.
• Paintable enclosure and grill to match any decor.
• Overload protection circuit provided to protect speaker components.
Easily adaptable to virtually any environment with its sleek, compact and functional design
The VS Series' smart and compact construction makes them well suited to locations where interior design is a consideration. Black and white models are available to choose from to match your applications. The speakers also feature waterproof enclosures and transducers which meet IPX3 rating requirements, allowing them to be used outdoors under cover.
Internal transformer allows operation in 70V or 100V distributed sound systems

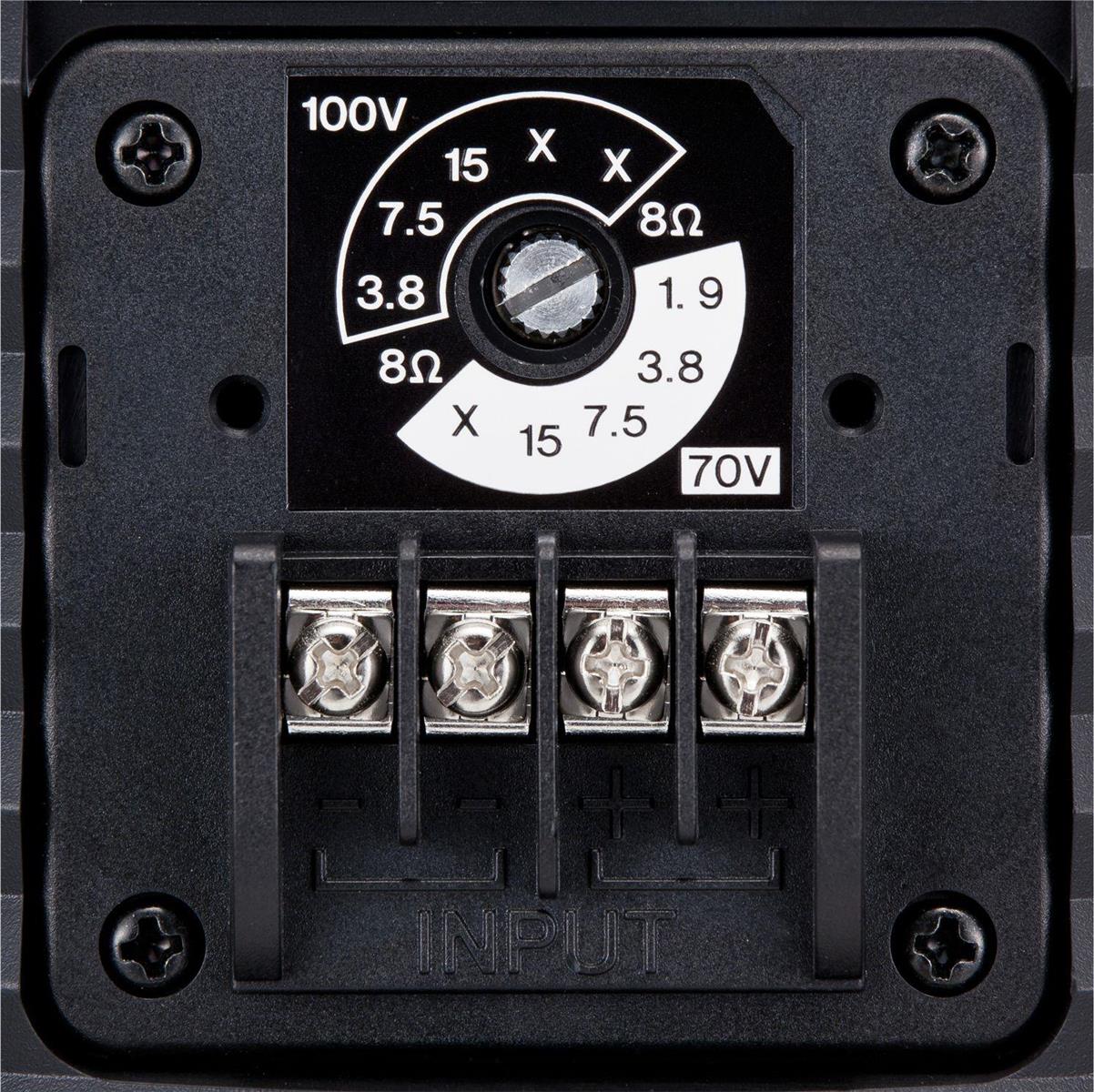

Tap selector switch is located on the rear panel to select the power tap of 70V/100V line distributed system or 8Ω sound system. The setting can be easily adjusted by rotating the tap selector with a screwdriver. The terminals and tap selector can be protected using the supplied cover.
Flexible setting of the speakers with the dedicated U-brackets
The speakers are supplied with dedicated, color-matched brackets for fast and easy installation. The brackets can be set either horizontally or vertically, depending on where you want to mount the speakers.
Allmänt
- Produktserie
- VS
- Applikation
- Vägg
- Aktiv/Passiv
- Passiv
- Färg
- Vit
Högtalarelement
- LF
- 4 "
- HF
- 1 "
Ljudspecifikation
- Impedans
- 8 Ohm
- Frekvensomfång min
- 100 Hz (-10dB)
- Frekvensomfång max
- 20 000 Hz (-10dB)
- Verkningsgrad (1W/1m)
- 88 dB 1W, 1m on axis
- Effekttålighet
- 30 W Program, 60W Peak
- 100V High-Z
- Ja Transformer taps 70V: 15W, 7.5W, 3.8W, 1.9W / 100V: 15W, 7.5W, 3.8W
- Max SPL
- 106 dB (Calculated)
Anslutningar
- Ljudanslutning in
- Skruvterminal singel x1 (+/-)
- Ljudanslutning ut
- Skruvterminal högt. kabel x1 (+/-) Parallel
- Bluetooth
- Nej
- Ethernet (RJ-45)
- Nej
- Wi-Fi
- Nej
Mått och vikt
- Bredd
- 152 mm
- Djup
- 172 mm
- Höjd
- 243 mm
- Nettovikt
- 1,9 kg
Övrigt
- Utomhusbruk
- Ja Waterproof construction - IEC60529 IPX3
- Medföljande Tillbehör
- U-bracket, Owner's Manual, Retaining knob, Terminal cover, Terminal cover screw
- Garanti
- 2 år
- Antal i leverans
- Parvis
Förpackningsinfo
- Förpackningsstorlek
- 470 x 230 x 290 mm
- Förpackningsvikt
- 4,85 kg
