Produkten är beställningsvara och avbokning eller retur efter köp är ej möjligt. Beställ nu för leverans inom 8 dagar.

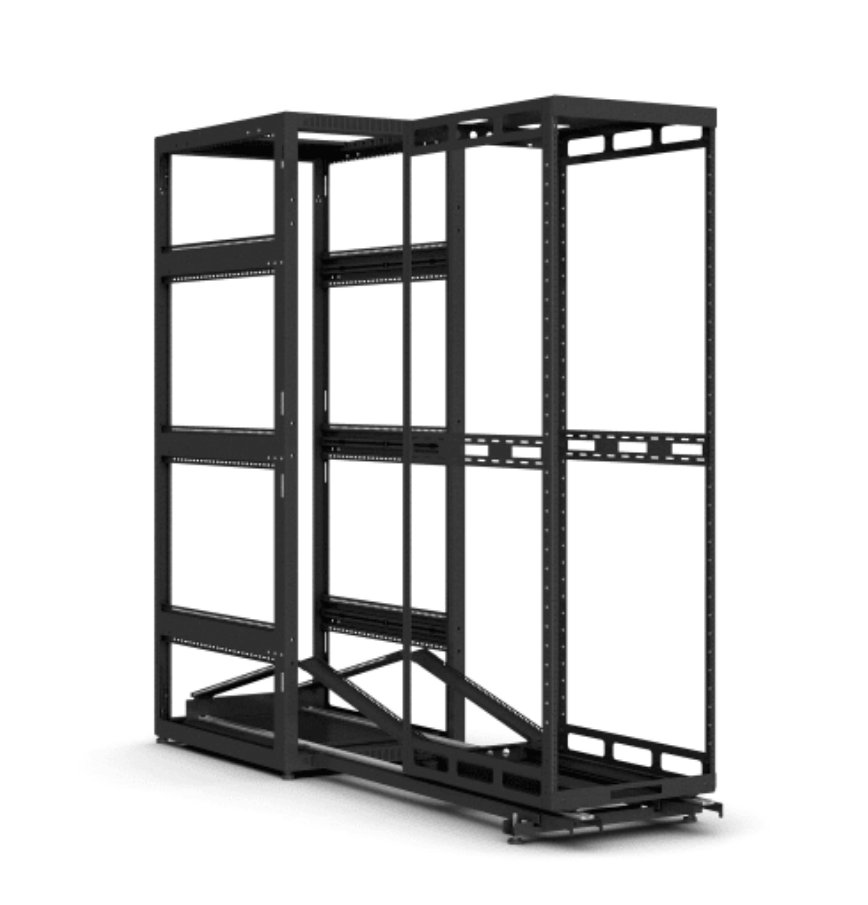

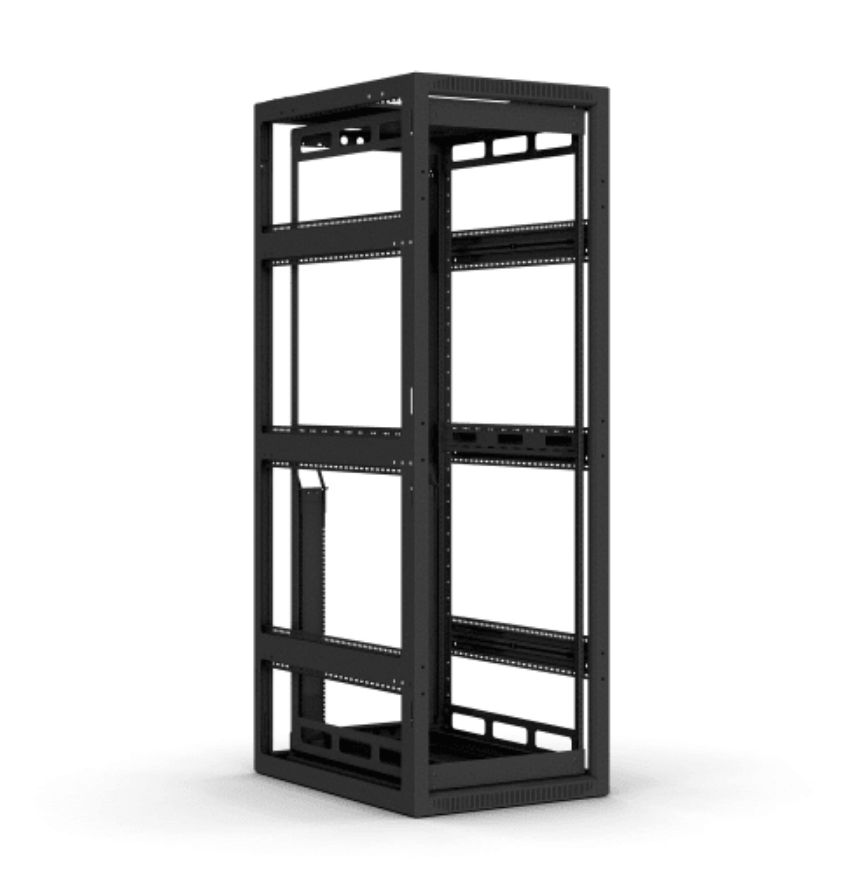

Roll entire bays of equipment straight out for service and installation flexibility. A factory-assembled AXS system in a rack (IR) is ideal for access to rear equipment connections or when space-limited environments require equipment bays to be placed up against a wall.
- 38 useable RUs in a 41RU enclosure
- 20" of useable depth in a 27" deep enclosure
- The rack can be pre-installed on-site allowing for equipment installation and cabling to be done off-site in the AXS system
- Seismically rated when installed with AXS-IR-Z4K kit
- Meets OSHPD OPM requirements in the State of California when using AXS-IR-Z4K seismic mounting kit
- AXS includes standard fixed front and rear 10-32 threaded rackrail with numbered spaces
- Includes extending cable carriers for effective cable management when the AXS is pulled out or retracted
- Includes rack, rack frame, cable carriers, base, and safety leashes
- Service Tracks are required to pull AXS out of Host Enclosure for servicing
- Accepts standard BGR options like doors, side panels, tops, etc.
Allmänt
- Applikation
- Golv, Utdragbart
- Förkonfigurerat
- Nej
Funktioner
- Mobilt
- Nej
- Låsbart
- Nej
Mått och vikt
- Rackbredd
- 19 "
- Rackenheter
- 38U
- Användbart djup
- 508 mm
- Max belastning
- 294,84 kg
- Bredd
- 584,2 mm
- Djup
- 685,8 mm
- Höjd
- 1 949,4 mm
- Nettovikt
- 80,74 kg
Övrigt
- Material
- Stål
- Färg
- Svart
- Garanti
- 3 år
