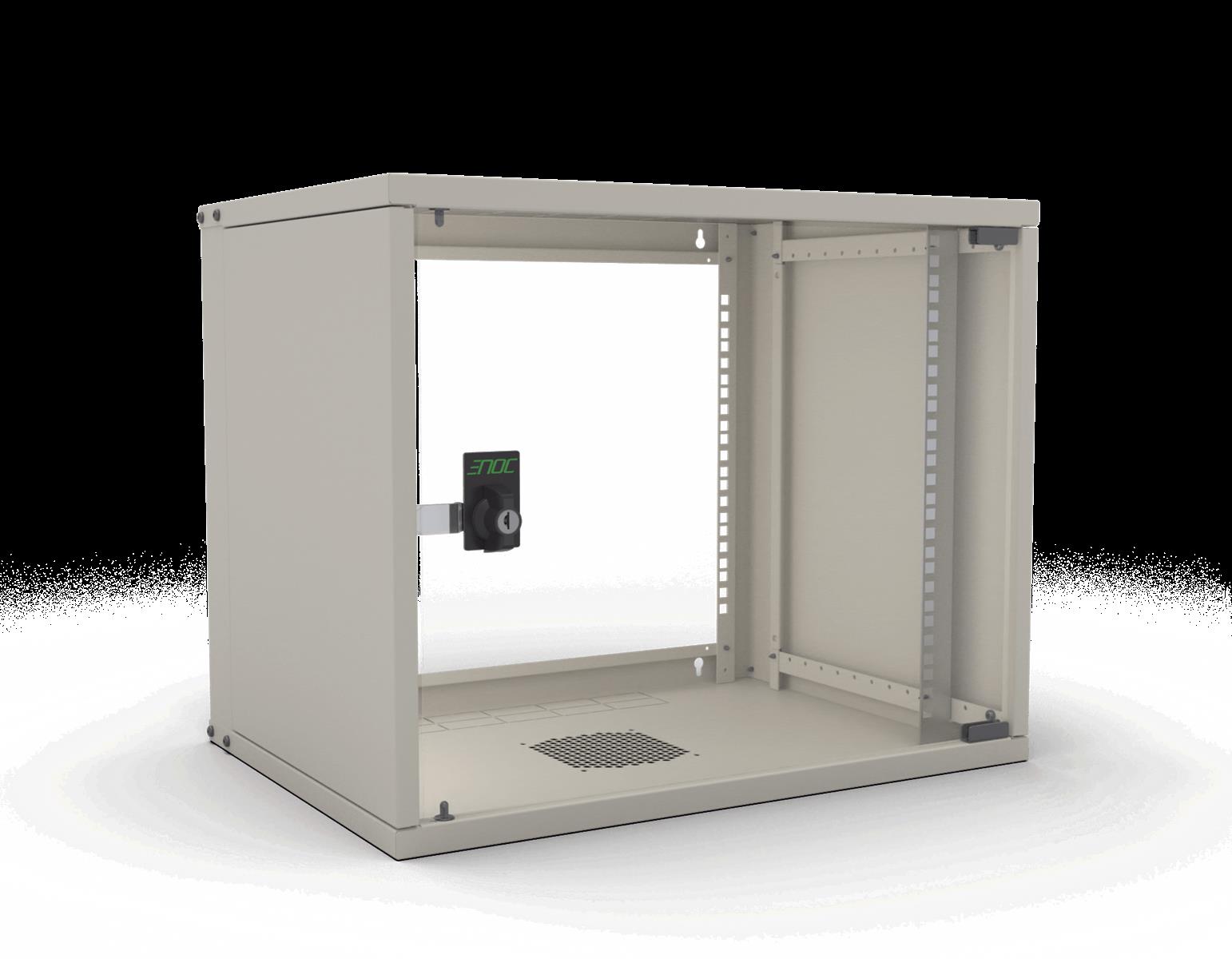

The Enoc W3 is our new serie of wall cabinets with a smart and functional design for small networks. The front and two detachable sides ensure a
quick and cost effective installment. And afterwards it makes service even easier. At Enoc we are committed to finding the solution that best fits you.
That is what we call “The Enoc Way”.
News! Now also available with ventilated doors.
The W3 series is available in the heights of 6, 9, 12, 15 och 21 HU in combination with width 550 mm and depth 400, 500 and 600 mm.
- Made of bent sheet steel.
- Surface treatment, textured Enoc System beige or black RAL 9005.
- Door of Glass, metal or ventilated metal. Glass door is made of safety glass, metal and ventilated metal door is made of sheet steel.
- Door opening angle 110°.
- Right-hinged, can be re-hung to be left-hinged.

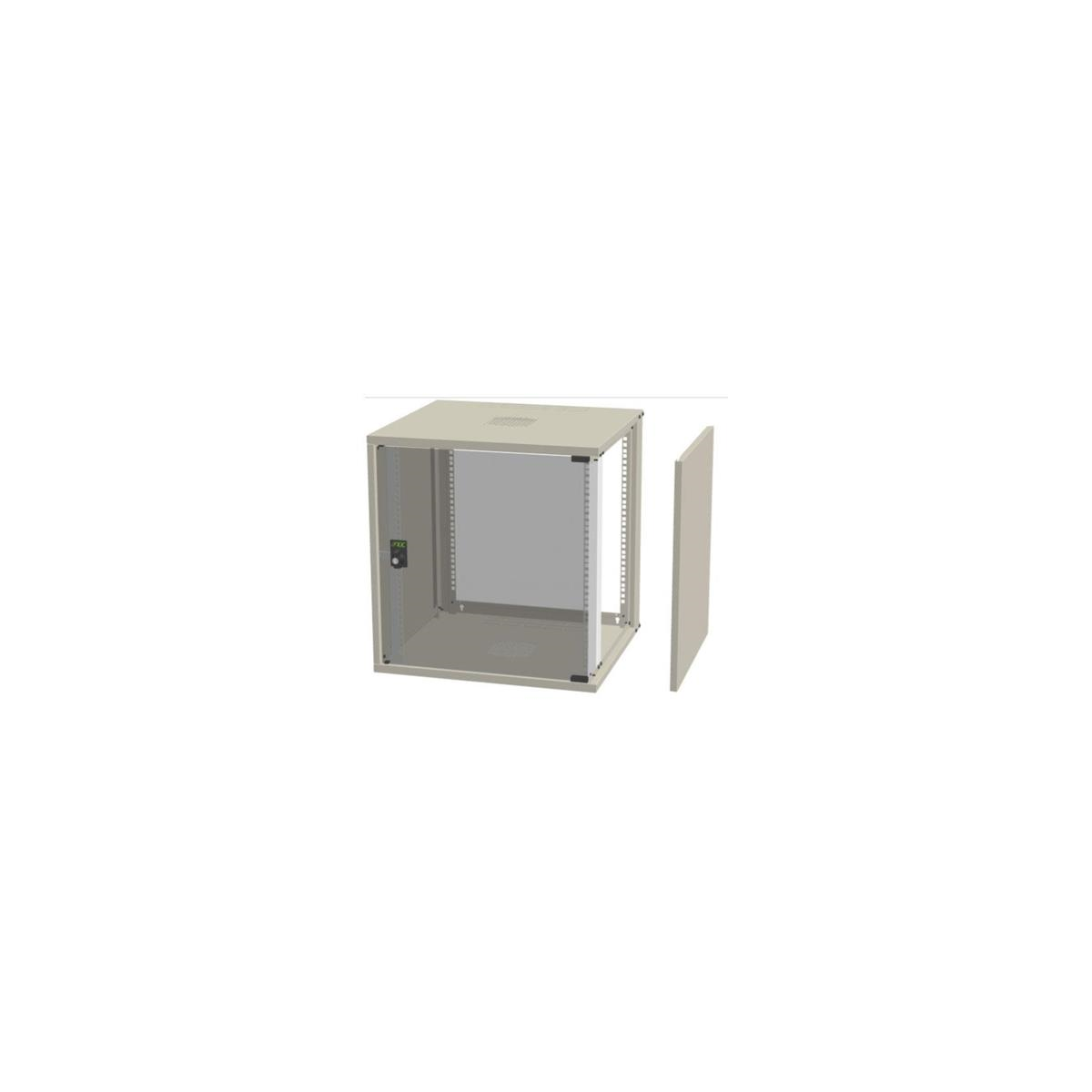

- Sheet steel sides, detachable.
- Top and bottom plates have knock-outs for cable glands. Supplied with edging strip for cable protection.
- Passive ventilation in top and bottom.
- 19″ hole pattern in rear uprights for mounting accessories.
- One pair of 19-inch profiles (482.6 mm) pre-fitted 80 mm in from the enclosure front, can be repositioned at 25 mm intervals through depth of the enclosure.
- Extra pair of 19″ profiles available as accessory.
- Keyholes for wall mounting.
- Open back, the back panel as accessory.
- Maximum static load 40 kg (depending on model).
- Ingress protection class IP 20.
- Other RAL colours on request.
Allmänt
- Applikation
- Vägg
- Förkonfigurerat
- Nej
Funktioner
- Mobilt
- Nej
- Låsbart
- Ja
Mått och vikt
- Rackbredd
- 19 "
- Rackenheter
- 6U
- Max belastning
- 30 kg
- Bredd
- 550 mm
- Djup
- 400 mm
- Höjd
- 314 mm
Övrigt
- Material
- Stål
- Färg
- Beige
Förpackningsinfo
- Förpackningsstorlek
- 580 x 420 x 320 mm
- Förpackningsvikt
- 9,90 kg
