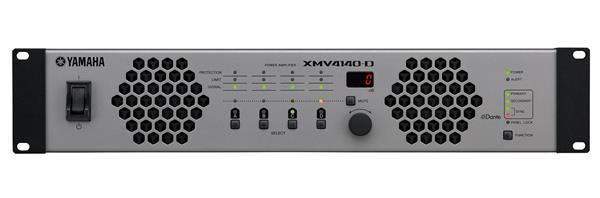

Multi-channel power amplifiers with features designed specifically to benefit installation sound systems.
XMV Series multi-channel power amplifiers combine Class-D efficiency with features designed specifically to benefit commercial installation sound systems. The Series is comprised of 8 different models with varying output power capabilities and flexible in/out connectivity to accommodate a wide range of installation environments.
Key Features:
• Four-channel power amp that can operate in both high-impedance (70V/100V line) or low-impedance (4Ω/8Ω) modes simultaneously.
• 70V or 100V mode can be assigned to every pair of channels without affecting the number of available output channels.
• The newly developed Double Power Mode function effectively doubles the output power of selected channels.
• Equipped with Audinate’s digital audio network Dante for simple and fast system configuration.
• Easy setting such as the mute on/off or attenuator changes with MTX Editor when used in system with MTX Series.
• An innovative, new, patent pending circuit improves the already highly efficient Class D circuit topology, bringing the efficiency level of the
amplifier’s output stage up to over 90%.
• Feature a Power Factor Correction equipped switching power supply, ensuring harmonic control and decreasing the amount of current draw
while maintaining the same output power.
• Powerful, intelligent protection features for more reliable operation.
Allmänt
- Produktserie
- XMV, XMV
- Förstärkartyp
- Installationsförstärkare
Ljudspecifikation
- Förstärkarkanaler
- 4
- 100V High-Z
- Ja
- Effekt/kanal (4 Ohm)
- 140 W x4 (4/8 Ohm), 280W x2 Bridged
- Effekt/kanal (70/100V)
- 125 W x4 (70/100V)
- Distortion THD
- 0,2 %
- Frekvensomfång min
- 20 Hz
- Frekvensomfång max
- 20 000 Hz
- Signal till brusförhållande
- 100 dB (A-weighted)
- Inbyggd DSP
- Nej

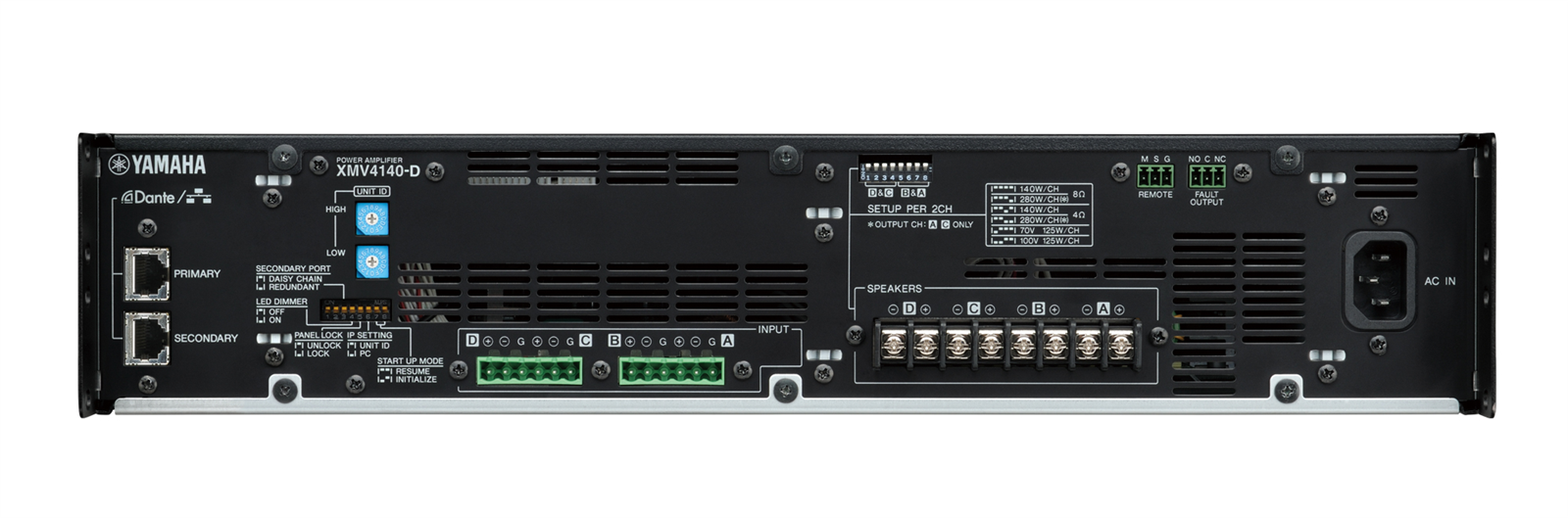

Anslutningar
- Ljudanslutning in
- Dante (RJ-45) 2x RJ-45 (Primär/Sekundär)
- Ljudanslutning in
- Euroblock lågnivå 2x 6-Pin Balaserad line
- Ljudanslutning ut
- Dante (RJ-45) 2x RJ-45 (Primär/Sekundär)
- Ljudanslutning ut
- Euroblock högt. kabel 4x Par
- Bluetooth
- Nej
- Wi-Fi
- Nej
- Styrning
- Contact closure 1x 3p Remote för mute / power on/off
- Styrning
- Ethernet/IP (RJ-45) Konfigurering via PC mjukvara
- Styrning
- GPI/O 1x 3p Fault out för att driva en idikatorlampa
Energi
- Strömförsörjning
- 100V - 240V; 50Hz/60Hz internal power supply
- Förstärkarklass
- Class-D
- Typ av kylning
- Luft aktiv (fläkt) 2x 3-speed fan (front to back airflow)
- Förbrukning standby
- 18,5 W
- Förbrukning vanlig
- 150 W 1/8 Power (4 Ω Pink Noise)
Mått och vikt
- Bredd
- 480 mm
- Djup
- 422 mm
- Höjd
- 88 mm
- Nettovikt
- 8,1 kg
Övrigt
- Montering
- 19" Rack, 2U, Fristående/Hylla
- Medföljande Tillbehör
- Power Cable, Phoenix connectors
- Garanti
- 5 år
Förpackningsinfo
- Förpackningsstorlek
- 600 x 590 x 220 mm
- Förpackningsvikt
- 12,00 kg
